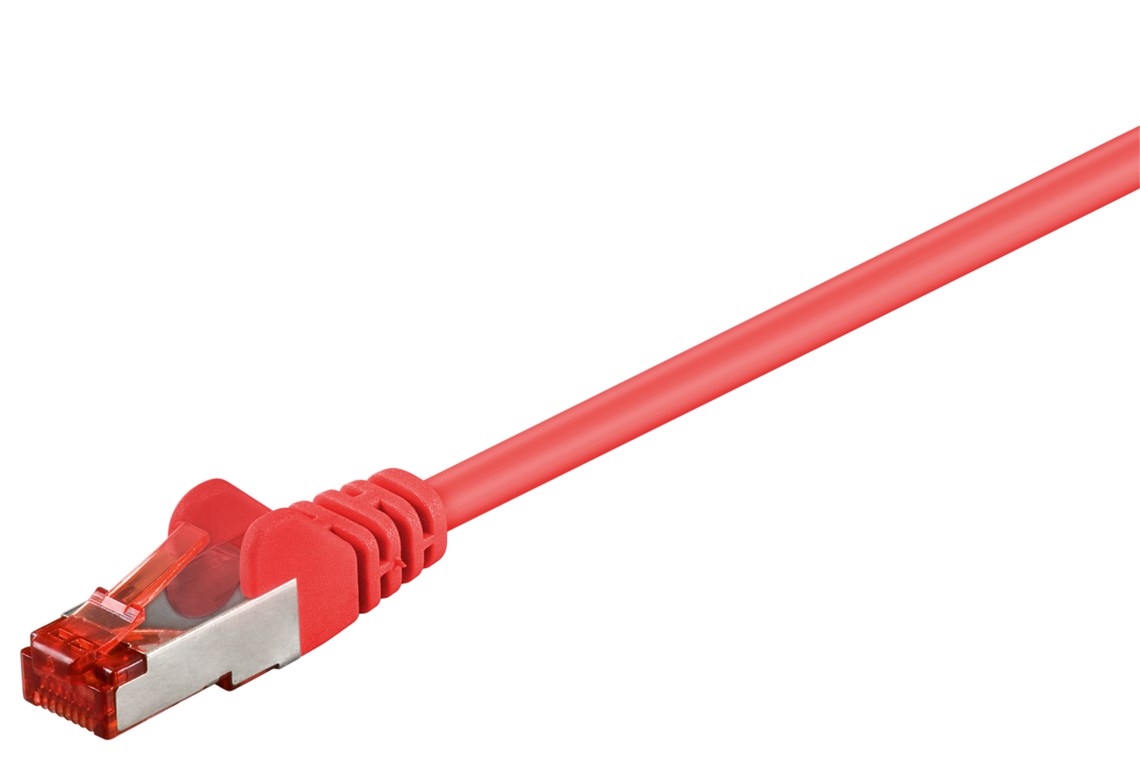

CAT 6 Patch Cable S/FTP (PiMF), red
copper conductor (CU), halogen-free cable sheath (LSZH)
Product and packaging similar. Subject to modifications and errors.
CAT 6 Patch Cable S/FTP (PiMF), red
copper conductor (CU), halogen-free cable sheath (LSZH)
Article details
Our CAT cables transmit signals in top quality at high speed, always guaranteeing a stable connection. High-quality inner conductors, robust cable sheathing and precisely fitting plugs distinguish our portfolio of connection cables and plugs. Goobay always provides the perfect products for your network needs - whether you aim to set up a home or company network. Simply. All. You need!
- Prewired, double-shielded LAN cable with RJ45 plugs for connecting network components
- CAT 6 internet cable suitable for 10 Gigabit Ethernet 10BASE-T, 100BASE-TX, 1000BASE-T, 10/100/1000/10000 Mbit/s
- S/FTP overall shield: aluminium foil shield for individual wire pairs (PiMF) and aluminium braid shield for the cable sheath
- High-quality copper conductor (CU) and gold-plated contacts guarantee an excellent, powerful network connection.
- Bend protection and a sturdy jacket effectively protect the network cable from breakage.
- Latch protection on the RJ45 connector prevents the latch from snagging or breaking off, helping to provide a reliable internet connection.
- Ethernet cable is CAT 6 tested and suitable for Power over Ethernet (PoE, PoE+).
Technical specifications
Connections
Connection, shielding
yes
Connection, type
RJ45 male (8P8C)
Latch protection
both sides
Connection 2, type
RJ45 male (8P8C)
Contacting
EIA/TIA-568 B
Kink protection
both sides
Cable
Specification
CAT 6
Cable type
round cable
Cable length
0.15 m
Inner conductor material
CU (copper)
AWG
28/7 (stranded)
Number of shieldings
2 x
Type 1, shielding
foil (alu) PiMF
bending radius >
48 mm
Type 2, shielding
braid (alu) overall shield
Cable sheath diameter (approx.)
6 mm
Shielding class
S/FTP (PiMF)
Material cable sheath
LSZH
LSZH compliant
yes
Signal transmission
max. bandwidth
250 MHz
General
Color
red
Markings
WEEE, CE
Special feature
Length indication on connector
Operating temperature from
-20 °C
Packaging type
Bulk
Dimensions / Weight
Consumption Unit
1 pc. in polybag
Downloads
Packing units:
1 / 10 / 280
Item: 92458
EAN: 4040849924583
