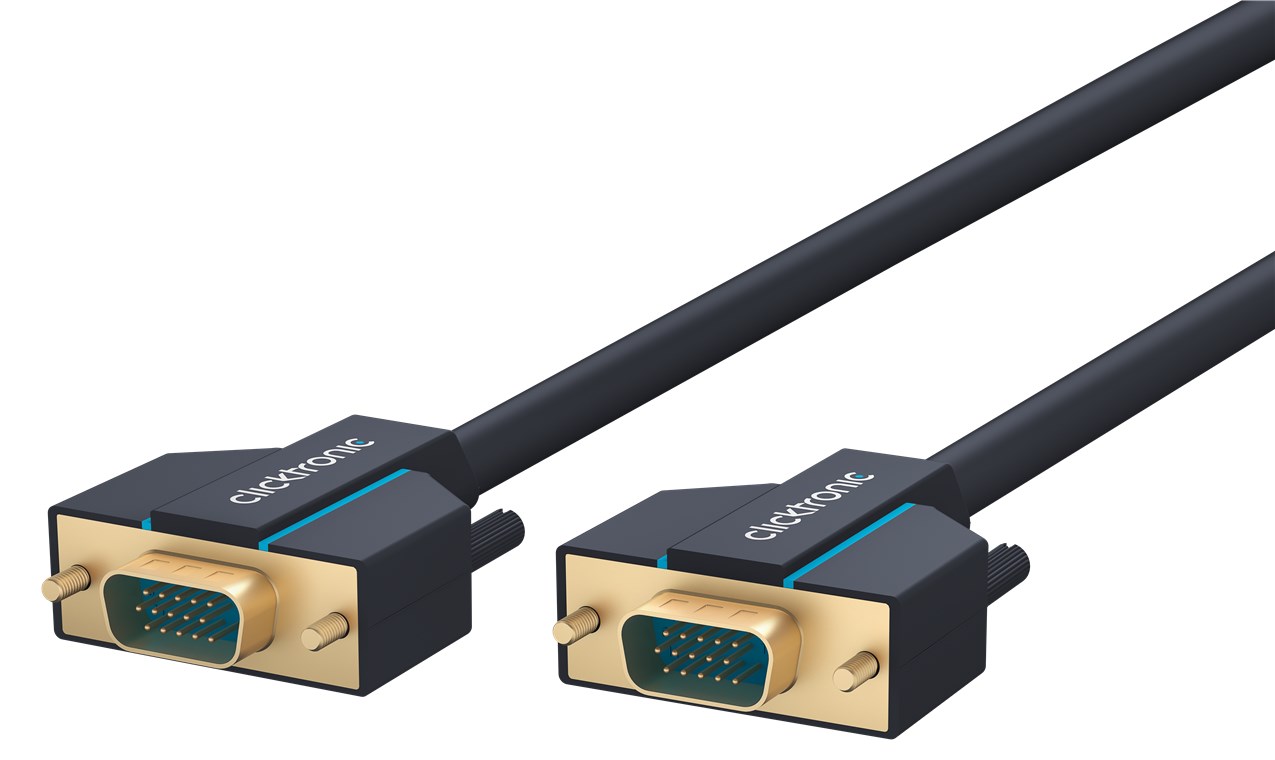

VGA Cable
Premium cable | 1x VGA plug <> 1x VGA plug | 3.0 m | SXGA @ 75 Hz
VGA Cable
Premium cable | 1x VGA plug <> 1x VGA plug | 3.0 m | SXGA @ 75 Hz
Article details

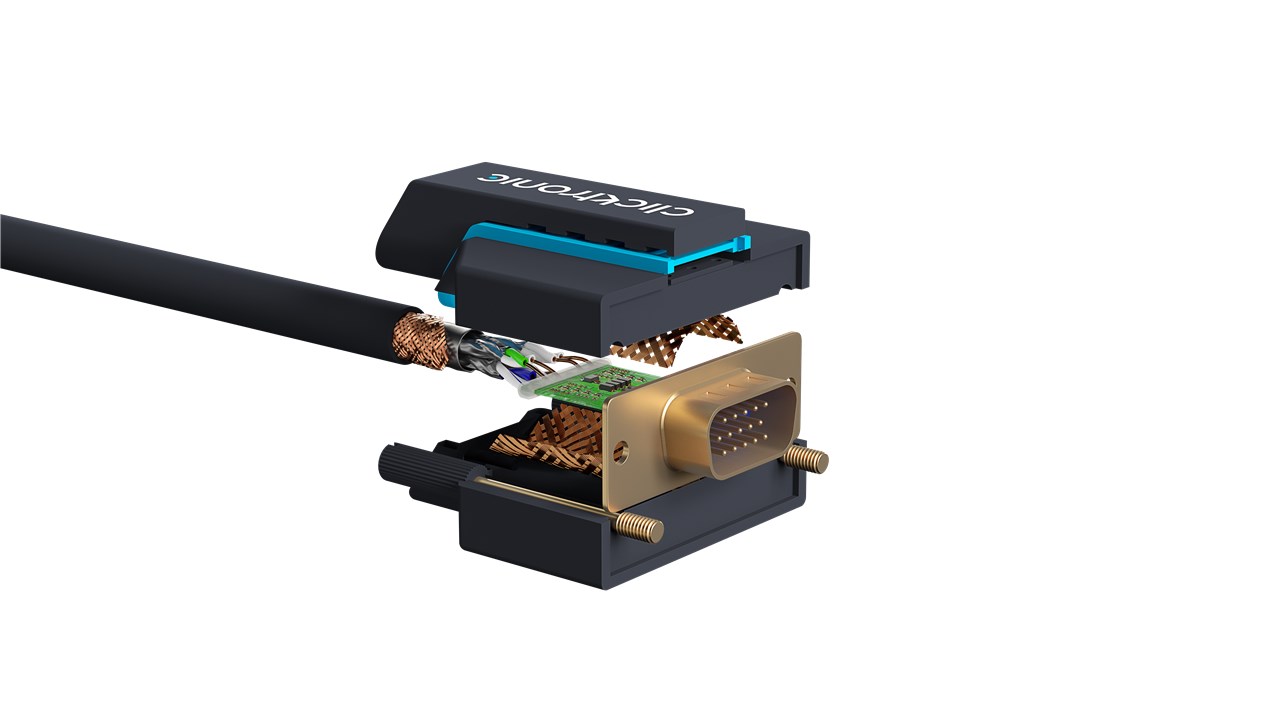

Clicktronic attaches great importance to durability and stability. Our quality promise: 10-year warranty on our VGA cables. The proprietary construction of our screen cables makes them extremely robust. The three-part connector construction made of PVC and ABS components compensates for jerky pulling on the cable, making it ideally protected against cable breaks. High-quality, gold-plated contacts and pure copper conductors transmit video signals in maximum quality for a perfect home cinema and gaming experience. The Clicktronic VGA cable enables a razor-sharp image and has a very fast transmission speed.
- Transmits analogue video signals from PCs or laptops with 15-pin VGA connector to a monitor, screen or projector (15-pin VGA connector)
- The VGA cable developed for high-resolution LCD and LED monitors supports a max. resolution of up to SXGA @ 75 Hz (1024p).
- Monitor cable with 24-carat gold-plated connectors for minimal transmission resistance and smooth image transmission without delays

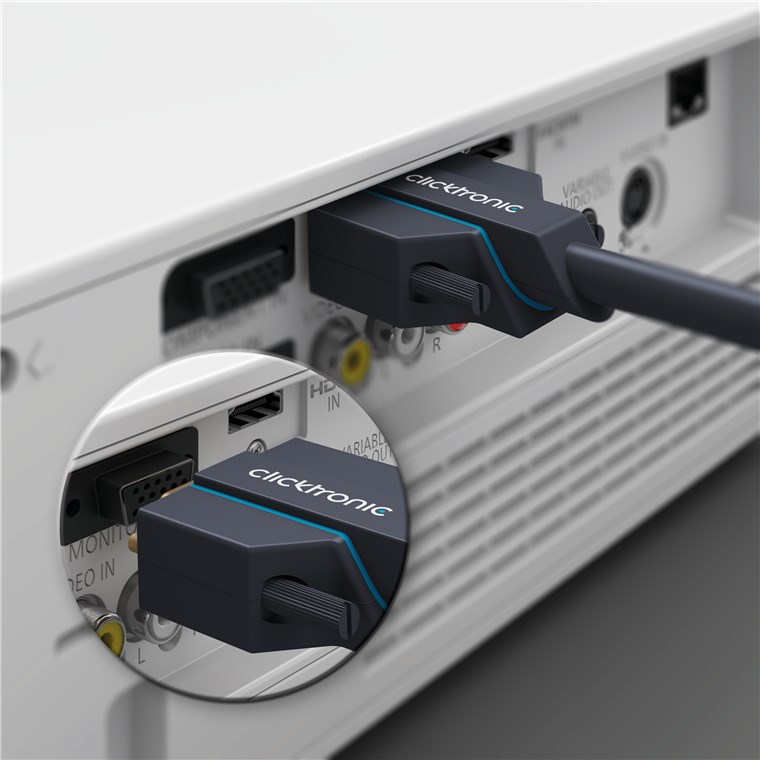

- Even with moving screens, the finger screws on each VGA connector ensure a secure hold and a reliable connection.

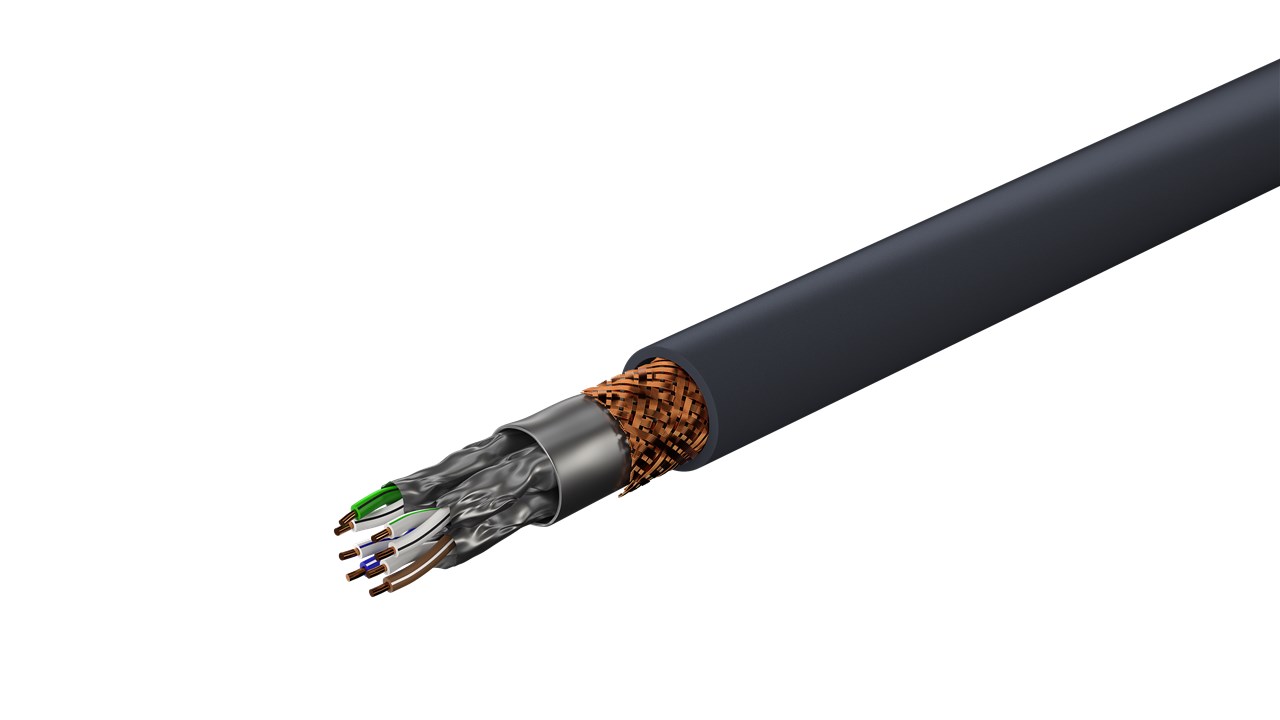

- Pure copper conductors and 2-fold shielding for razor-sharp video and picture quality
- Flexible, robust PVC cable jacket allows easy bending and routing of the VGA-to-VGA cable.
Technical specifications
Connections
Connection, contact material
gold (24 kt)
Connection, housing material
ABS, PVC
Connection, shielding
yes
Latch protection
no
Connection type
VGA konektor
Connection, type
VGA male (15-pin)
Connection 2, type
VGA male (15-pin)
Kink protection
both sides
Cable
Diameter ferrite core
18 mm
Cable type
round cable
Cable length
3 m
Cable sheath diameter (approx.)
8 mm
Inner conductor material
CU (copper)
AWG
28
Number of shieldings
3 x
Type 1, shielding
braid (copper) 128x
Type 2, shielding
foil (aluminium)
Type 3, shielding
foil (aluminium)
Material cable sheath
PVC
Ferrite core
yes
Signal transmission
Signal amplification
no
Max. resolution
WUXGA (1920 x 1200p) 60Hz
General
Markings
WEEE, CE
Operating temperature from
-10 °C
Operating temperature up to
80 °C
Warranty
10 years
Packaging type
Retail Box
Dimensions / Weight
Consumption Unit
1 pc. in cardboard box
Downloads
Packing units:
1 / 12 / 24
Item: 70352
EAN: 4040849703522
