USB-C™ to HDMI™ Adapter Cable
4K/60Hz
USB-C™ to HDMI™ Adapter Cable
4K/60Hz
Article details

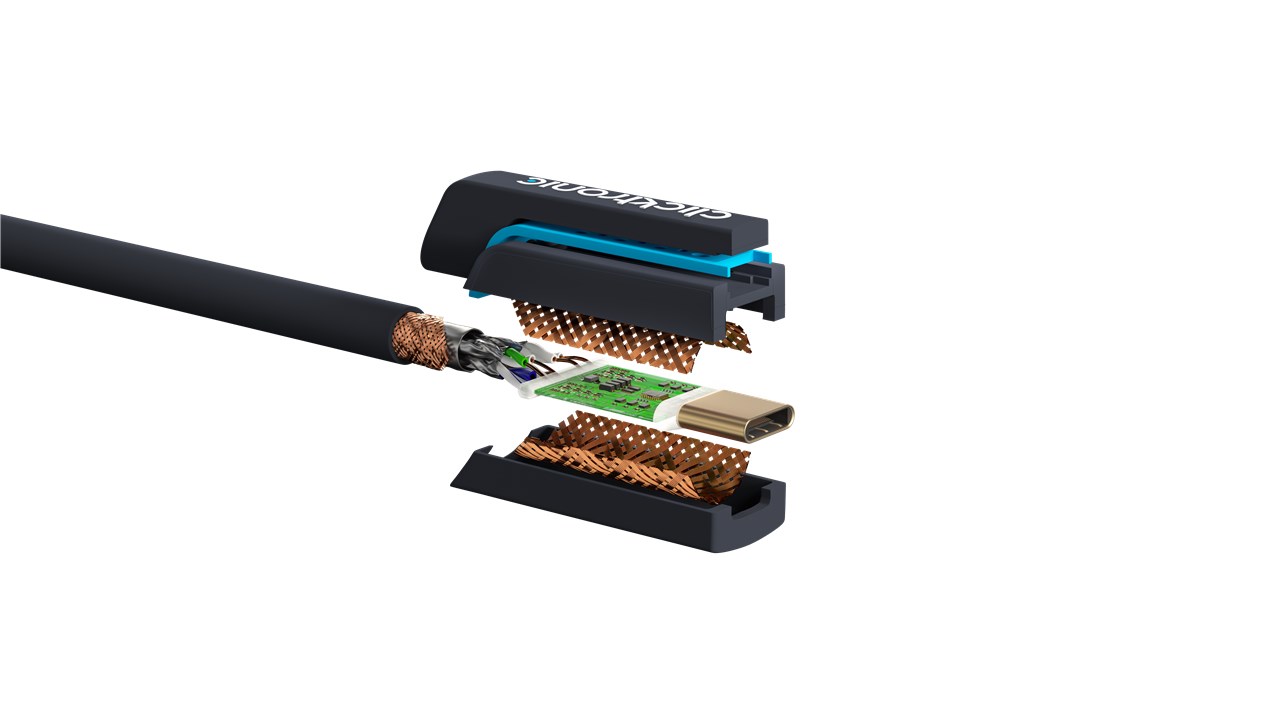

Clicktronic attaches great importance to durability and stability. Our quality promise: 10-year warranty on our USB cables. The proprietary construction of our connection cables makes them extremely robust. The three-part connector construction made of PVC and ABS components compensates for jerky pulling on the cable, making it ideally protected against cable breaks. High-quality, gold-plated contacts and pure copper conductors guarantee fast data transmission. The durable PVC jacket protects the USB cable and ensures a long-lasting, stable connection.
- Ultra HD signal transmission with up to 4K @ 60 Hz (2160p)
- Connection cable with max. transmission rate of up to 18 Gbit/s
- 24-carat gold-plated HDMI™ connectors for minimal transmission resistance
- HDMI™ adapter cable for connection to devices with USB-C™ socket such as smartphones and tablets

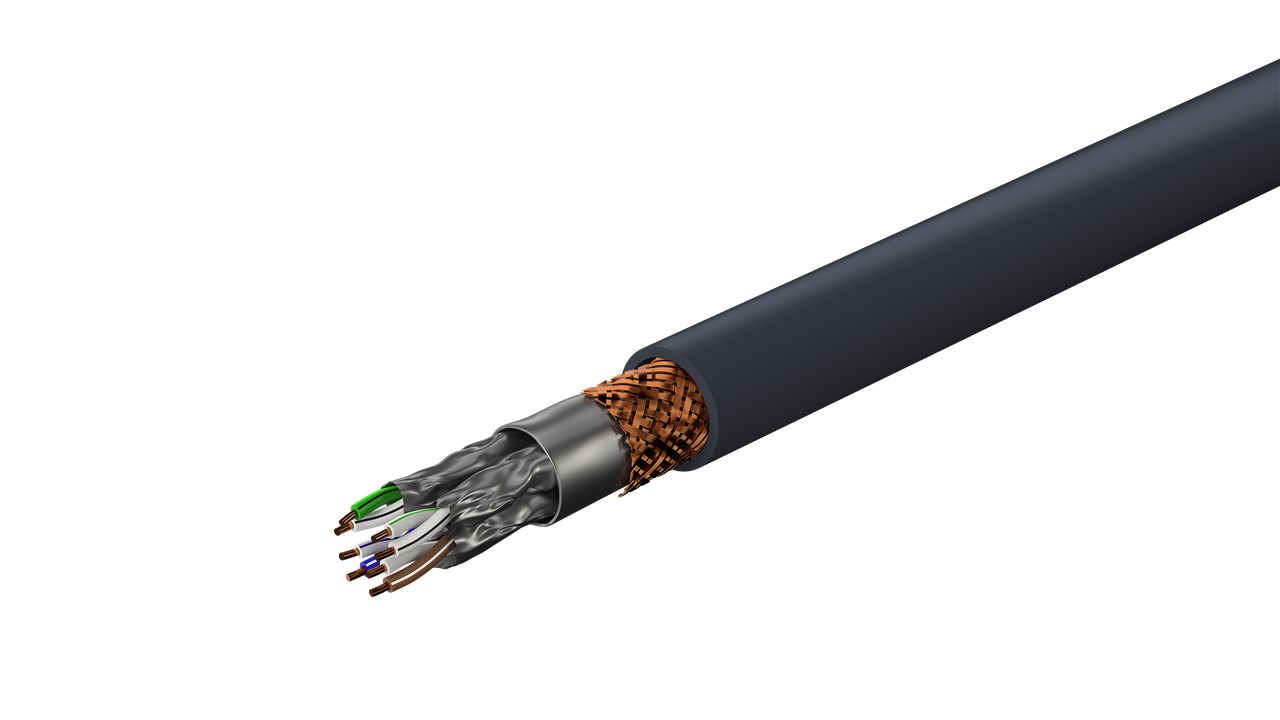

- Pure copper conductors and 2-fold shielding guarantee flawless signal quality, clear sound and pin-sharp video and picture quality.
- Flexible bend protection and robust PVC cable sheathing allow the Clicktronic 4K cable to be bent without damage.
- Integrated Ethernet channel forwards the internet signal from the computer directly to the monitor, thus saving a network cable.
Technical specifications
Labelling
Disclaimer
The terms HDMI, HDMI High-Definition Multimedia Interface, HDMI Trade Dress and
the HDMI Logos are trademarks or registered trademarks of HDMI Licensing
Administrator, Inc.
Connections
Connection, contact material
gold (24 kt)
Connection, housing material
ABS, PVC
Connection, shielding
yes
Connection type
USB-C™ male, HDMI™ connector male (type A)
Connection, type
USB-C™ connector
Connection 2, type
HDMI™ connector male (type A)
Kink protection
both sides
Performance
Standard
USB 2.0
Cable
Cable type
round cable
Cable length
1 m
Cable sheath diameter (approx.)
4.8 mm
Inner conductor material
CU (copper)
Inner conductor cross-section
0.08 mm²
AWG
32
Number of shieldings
3 x
Type 1, shielding
Braiding (copper) 144x
Type 2, shielding
foil (aluminium)
Type 3, shielding
foil (aluminium)
Material cable sheath
PVC
Ferrite core
no
LSZH compliant
no
Signal transmission
Signal amplification
no
Max. resolution
4K/60Hz (3840 x 2160) UHD
max. transmission rate
18 Gbit/s
General
Markings
WEEE, CE
Special feature
flexible
Operating temperature from
-10 °C
Operating temperature up to
80 °C
Warranty
10 years
Packaging type
Retail Box
Dimensions / Weight
Consumption Unit
1 pc. in cardboard box
Language Scope
Operation manual
de, en, fr, it, es, nl, da, se, cz, pl
Downloads
Packing units:
1 / 20 / 40
Item: 44928
EAN: 4040849449284
