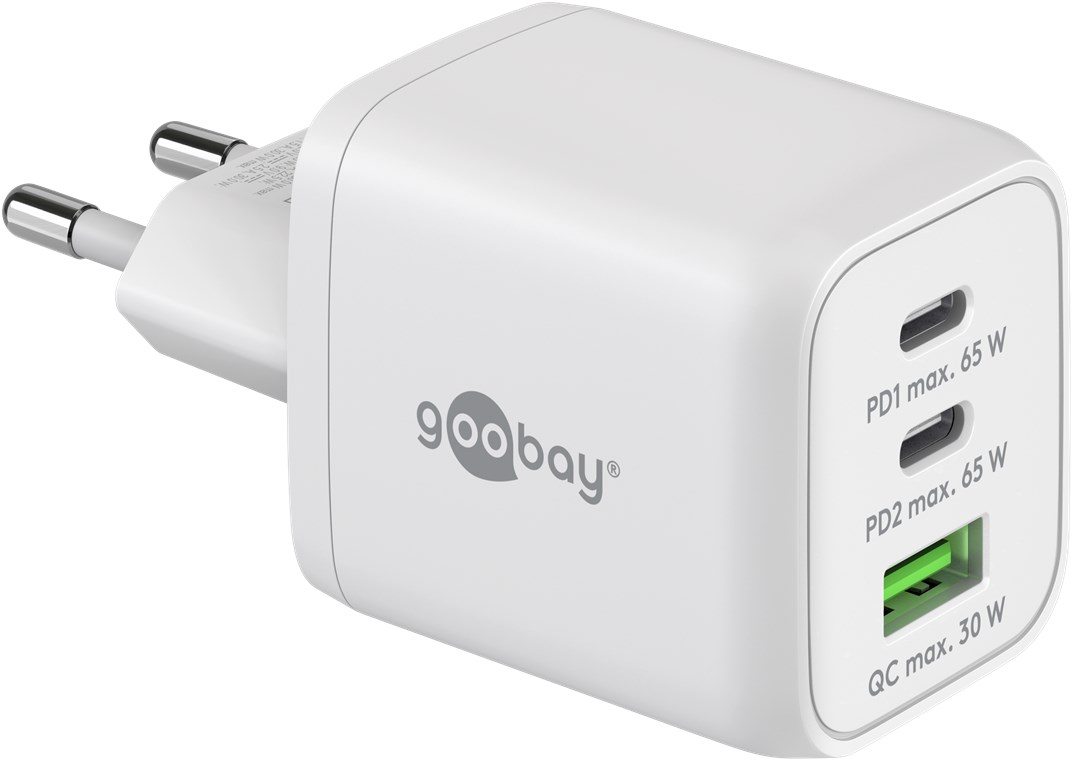

USB-C™ PD GaN Multiport Fast Charger Nano (65 W) white
USB-C™ PD GaN Multiport Fast Charger Nano (65 W) white
Article details
A super-compact design, a high capacity, great energy efficiency and a multifunctional USB-C™ port - all combined in a single charging adapter. The Goobay charger is the perfect power supply at home and on the go, reliably and quickly charging any device, from Bluetooth headphones to laptops. Simply. All. You need!

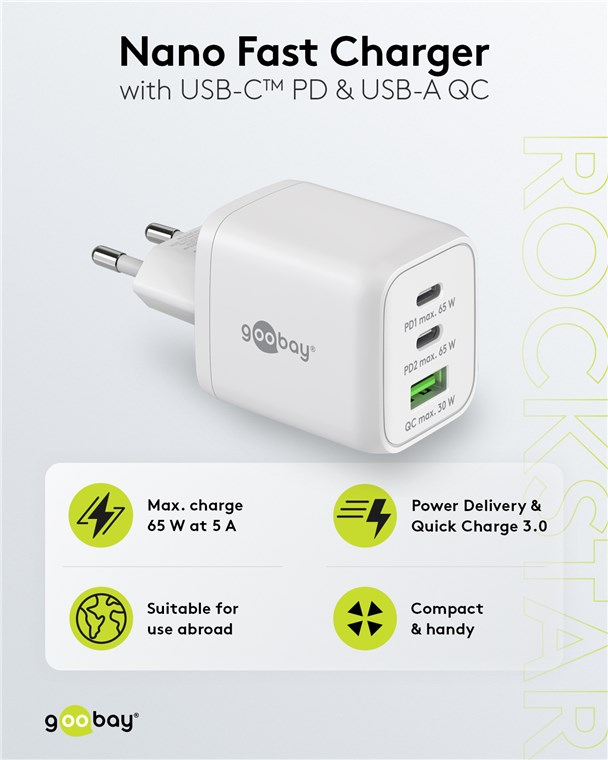

- Space-saving, lightweight and flexible - with its generous four ports, the USB charger replaces four individual chargers with USB-A and USB-C™ ports
Technical specifications
ErP
Average active efficiency
87.49 %
Efficiency at low load (10 %)
78.84 %
No-load power consumption
0.13 W
Performance
Output

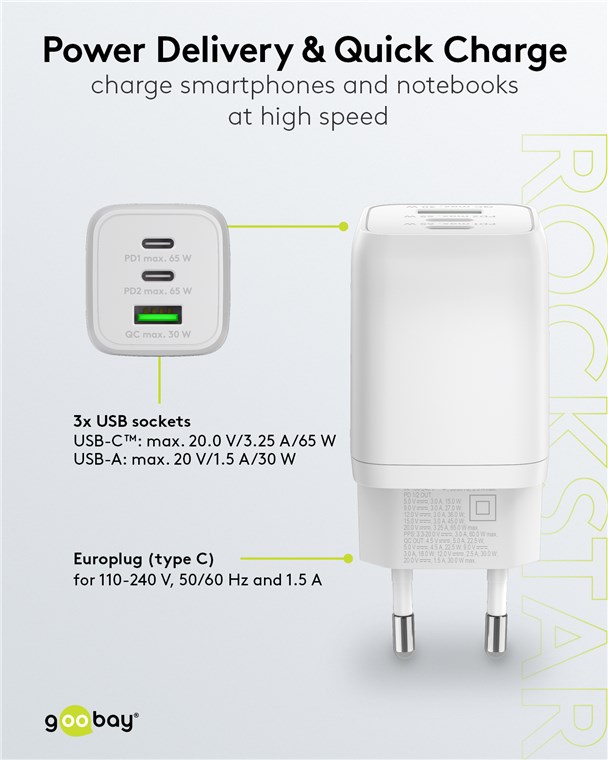

USB-C1: max. 65.0 W
USB-C2: max. 65.0 W
USB-A: max. 30.0 W
USB-C1 + USB-C2: max. 45.0 W + 20.0 W (Total 65.0 W)
USB-C1 + USB-A: max. 45.0 W + 18.0 W (Total 63.0 W)
USB-C2 + USB-A: max. 5.0V max. 1.5 A (7.5 W) + 5.0 V max. 1.5A (7.5 W) Total 15.0 W
USB-C2 + USB-A + USB-C1: max. 7.5 W + 7.5 W + 45.0 W (Total max. 60W)
Total: max. 65.0 W

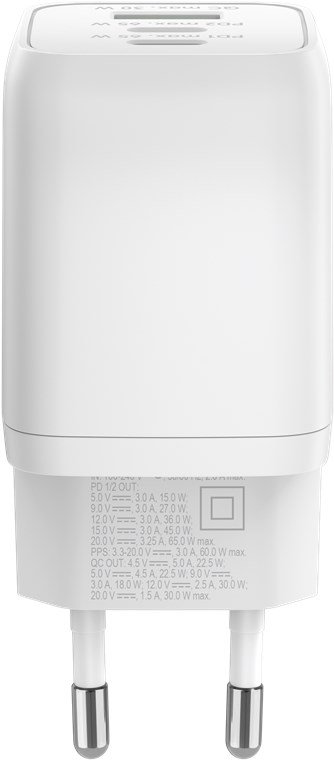

USB-C1:
5.0 V max. 3.0 A (15.0 W)
9.0 V max. 3.0 A (27.0 W)
12.0 V max. 3.0 A (36.0 W)
15.0 V max. 3.0 A (45.0 W)
20.0 V max. 3.25 A (65.0 W)
PPS: 3.3 V – 20.0 V max. 3.0 A (60.0 W)
USB-C2:
5.0 V max. 3.0 A (15.0 W)
9.0 V max. 3.0 A (27.0 W)
12.0 V max. 3.0 A (36.0 W)
15.0 V max. 3.0 A (45.0 W)
20.0 V max. 3.25 A (65.0 W)
PPS: 3.3 V – 20.0 V max. 3.0 A (60.0 W)
USB-A:
4.5 V max. 5.0 A (22.5 W)
5.0 V max. 4.5 A (22.5 W)
9.0 V max. 3.0 A (27.0 W)
12.0 V max. 2.5 A (30.0 W)
20.0 V max. 1.5 A (30.0 W)
max. performance
65.0 W
Device connections
Input, Voltage Range
100 - 240 (AC) V
General
Color
white

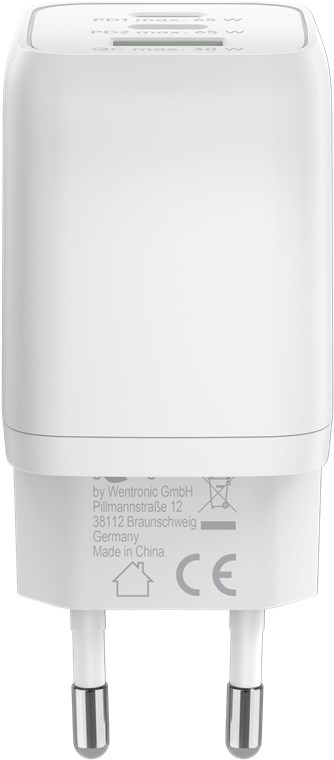

Markings
CE, WEEE, Haus, Quader, Indoor use
Packaging type
Retail Polybag

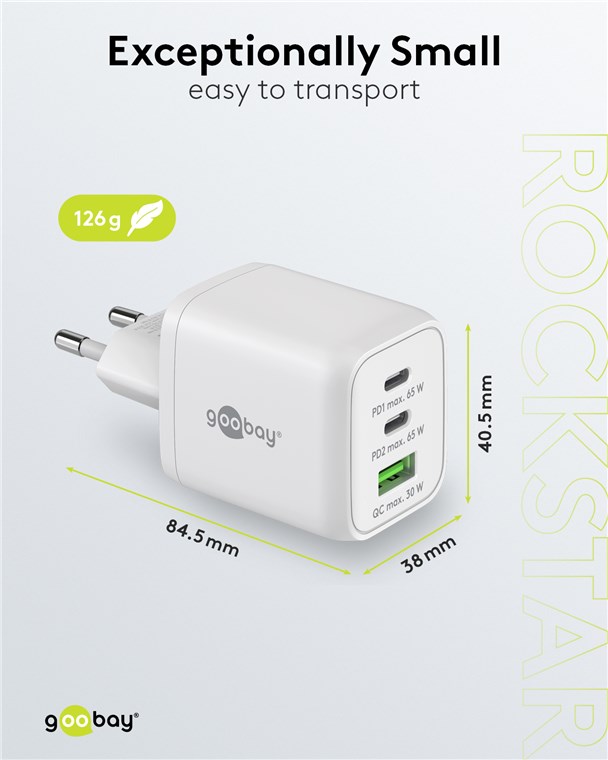

Dimensions / Weight
Length
84.5 mm
Width
40.5 mm
depth
38 mm
Weight
126 g
SCIP
SCIP no.
ec0fbd9f-a3c4-4a95-a0fe-f4576cfbd428
chemical substance
Pb
CAS no.
7439-92-1
Downloads
Packing units:
1 / 40 / 80
Item: 64754
EAN: 4040849647543
