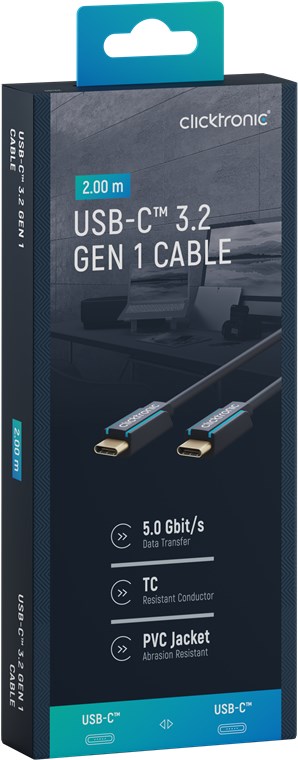

USB-C™ 3.2 Gen 1 Cable
Premium cable | USB-C™ plug <> USB-C™ plug | 2.0 m | 5 Gbit/s
USB-C™ 3.2 Gen 1 Cable
Premium cable | USB-C™ plug <> USB-C™ plug | 2.0 m | 5 Gbit/s
Article details
Clicktronic attaches great importance to durability and stability. Our quality promise: 10-year warranty on our USB cables. The proprietary construction of our connection cables makes them extremely robust. The three-part connector construction made of PVC and ABS components compensates for jerky pulling on the cable, making it ideally protected against cable breaks. High-quality, gold-plated contacts and pure copper conductors guarantee fast data transmission. The durable PVC jacket protects the USB cable and ensures a long-lasting, stable connection.
- USB-C™ cable 3.2 Gen 1 with SuperSpeed data transfer rate up to 5 Gbit/s is 10x faster than USB 2.1.
- Suitable not only for data transfer, but also for synchronising and super-fast charging of devices
- Data cable for connection to e.g. PC, laptop, external hard drive, tablet, smartphone or Bluetooth speaker
- 24-carat gold-plated USB plugs guarantee excellent transmission quality of digital data.
- USB-C™ cable with 99.9% oxygen-free copper conductor and 2-fold shielding for optimum transmission speed
- Flexible bend protection and robust PVC cable sheathing allow the connection cable to be bent without damage.
- USB-C™ plug for confusion-free plugging in from both sides (180° rotatable)
Technical specifications
Connections
Connection, contact material
gold (24 kt)
Connection, housing material
ABS, PVC
Connection, shielding
yes
Connection type
USB-A male, USB-C™ male
Connection, type
USB-C™ male
Connection 2, type
USB-C™ male
Kink protection
both sides
Performance
Standard
USB 3.1 (USB 3.2 Gen 2(x1))
Cable
Cable type
round cable
Cable length
2 m
Cable sheath diameter (approx.)
4.8 mm
Inner conductor material
CU (copper)
AWG
22
Number of shieldings
3 x
Type 1, shielding
braid (copper) 96x
Type 2, shielding
foil (aluminium)
Type 3, shielding
foil (aluminium)
Material cable sheath
PVC
Signal transmission
max. transmission rate
5 Gbit/s
General
Markings
WEEE, CE
Operating temperature from
-10 °C
Operating temperature up to
80 °C
Warranty
10 years
Packaging type
Retail Box
Dimensions / Weight
Consumption Unit
1 pc. in cardboard box
Downloads
Packing units:
1 / 20 / 40
Item: 45132
EAN: 4040849451324
