Ultra High Speed HDMI™ Cable
8K/60Hz
Ultra High Speed HDMI™ Cable
8K/60Hz
Article details
Clicktronic attaches great importance to durability and stability. Our quality promise: 10-year warranty on our HDMI™ cables. The proprietary construction of our connection cables makes them extremely robust. The three-part connector construction made of PVC and ABS components compensates for jerky pulling on the cable, making it ideally protected against cable breakage. High-quality, gold-plated contacts and pure copper conductors transmit audio and video signals in maximum quality for a perfect home cinema and gaming experience. The Clicktronic Ultra High Speed HDMI™ cable enables a razor-sharp picture and has the fastest transmission speed currently available.
- Clicktronic 8K cable with official HDMI™ Premium certification guarantees best quality.
- Latest HDMI™ standard for flawless movie and gaming experiences is ideal for movie lovers and gamers.
- HDMI™ connection cable for UHD signal transmission with up to 8K @ 50/60 Hz (4320p) and 4K @ 120 Hz (2160p)
- G-Sync and FreeSync™ compatible for a speed advantage in gaming with max. transfer rate of up to 48 Gbit/s for uncompressed 8K videos with HDR
- 24-carat gold-plated HDMI™ connectors and advanced technology guarantee flawless signal quality without image transmission delays for an optimal gaming experience.
- Pure copper conductors and 3-fold shielding for clear sound and pin-sharp video and picture quality
- Ultra-High-Speed HDMI™ cable for maximum convenience and simplified operation with multiple channels such as HEC, eARC, CEC and better entertainment experience with HDR10+ and HDCP 2.3
Technical specifications
Labelling
Disclaimer
The terms HDMI, HDMI High-Definition Multimedia Interface, HDMI Trade Dress and
the HDMI Logos are trademarks or registered trademarks of HDMI Licensing
Administrator, Inc.
Connections
Connection, contact material
gold (24 kt)
Connection, housing material
ABS, PVC
Connection, shielding
yes
Connection type
HDMI™ connector male (type A)
Connection, type
HDMI™ connector male (type A)
Connection 2, type
HDMI™ connector male (type A)
Kink protection
both sides
Cable
Cable type
round cable
Cable length
0.5 m
Cable sheath diameter (approx.)
6.3 mm
Inner conductor material
CU (copper)
Cable structure
19+1
AWG
30
Number of shieldings
4 x
Type 1, shielding
braid (aluminium) 144x
Type 2, shielding
foil (aluminium)
Type 3, shielding
foil (aluminium)
Type 4, shielding
foil (aluminium)
Material cable sheath
PVC
Ferrite core
no
LSZH compliant
no
Signal transmission
Signal amplification
no
Max. resolution
8K/60Hz (7680x4320) Full UHD
Supported video standards
8K/60Hz (7680x4320) Full UHD, 4K/120Hz (3840 x 2160) UHD
other supported standards
HDR (High Dynamic Range), 3D, HDCP 2.3
supported audio standards
Enhanced Audio Return Channel (eARC)
General
Markings
WEEE, CE, HDMI™ Ultra High Speed, ULTRAHD 8K@50/60 Hz
Special feature
flexible
Operating temperature from
-10 °C
Operating temperature up to
80 °C
Warranty
10 years

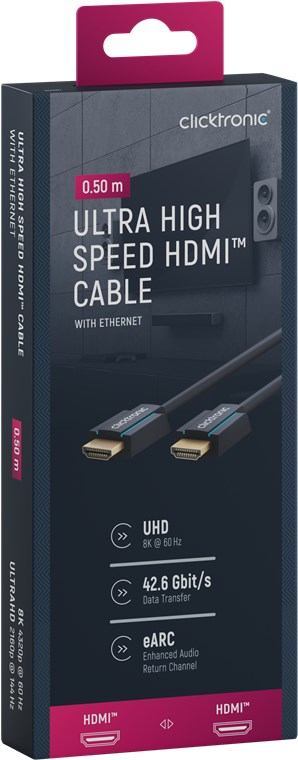

Packaging type
Retail Box
Dimensions / Weight
Consumption Unit
1 pc. in cardboard box
Downloads
Packing units:
1 / 20 / 40
Item: 40987
EAN: 4040849409875
