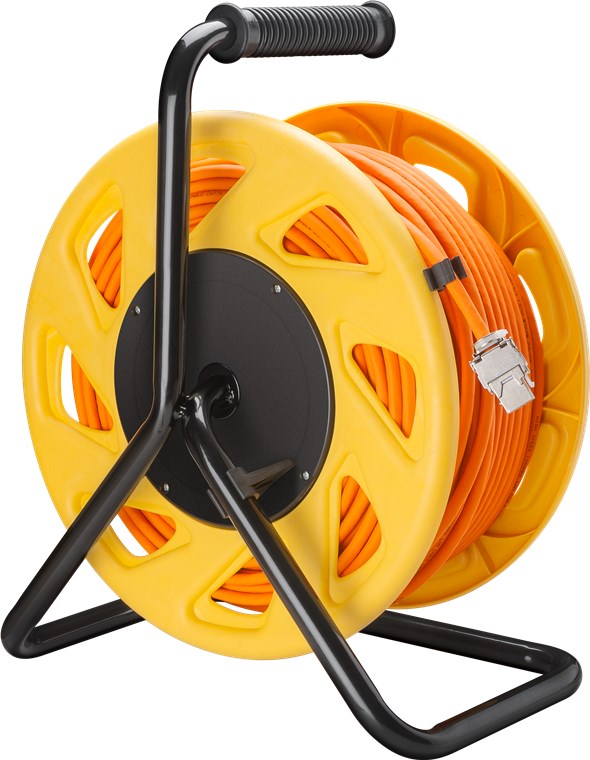

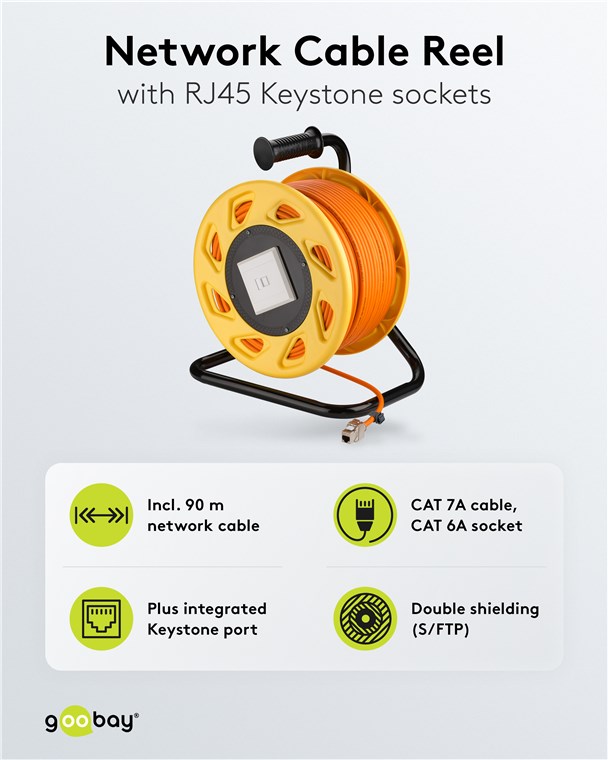

Portable RJ45 Network Cable Reel Extension, orange
Double-shielded, halogen-free CAT 7A S/FTP (1000Â MHz) installation cable on robust cable reel
Portable RJ45 Network Cable Reel Extension, orange
Double-shielded, halogen-free CAT 7A S/FTP (1000Â MHz) installation cable on robust cable reel
Article details
Ideal solution for setting up short-term, temporary network connections over long distances, e.g. at events, conferences, training courses, performances or in emergencies.
- Shielded twisted-pair LAN cable with high-quality copper conductor (CU) for mobile use, e.g. at events, presentations or training courses
- Ideal for establishing a short-term internet connection over a long distance

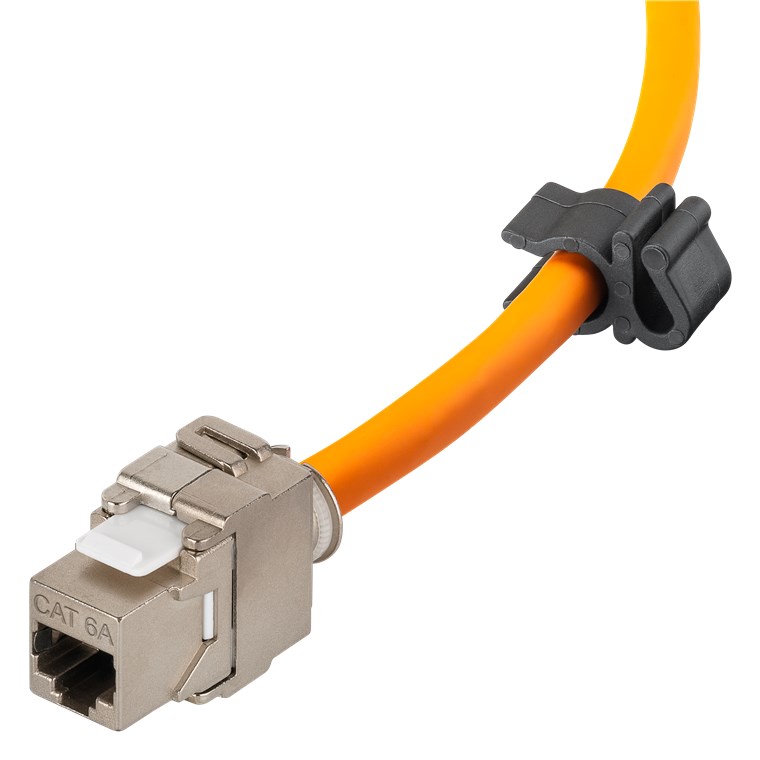

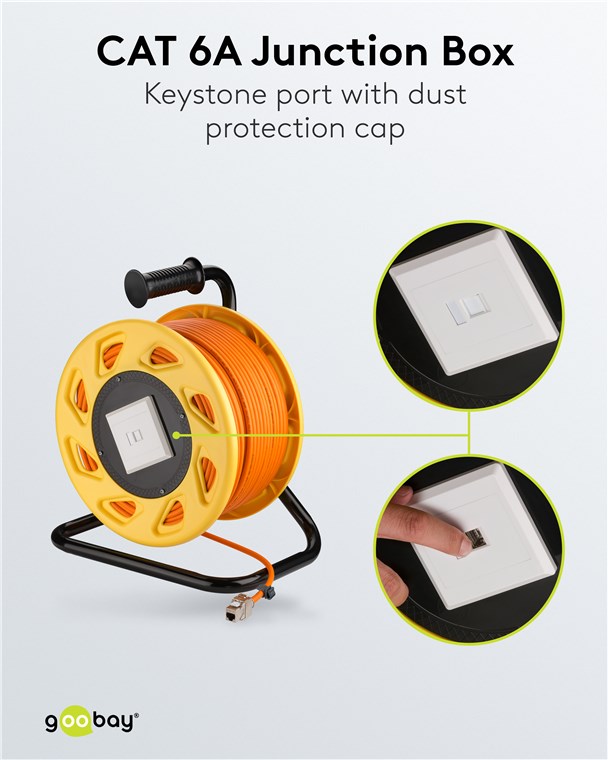

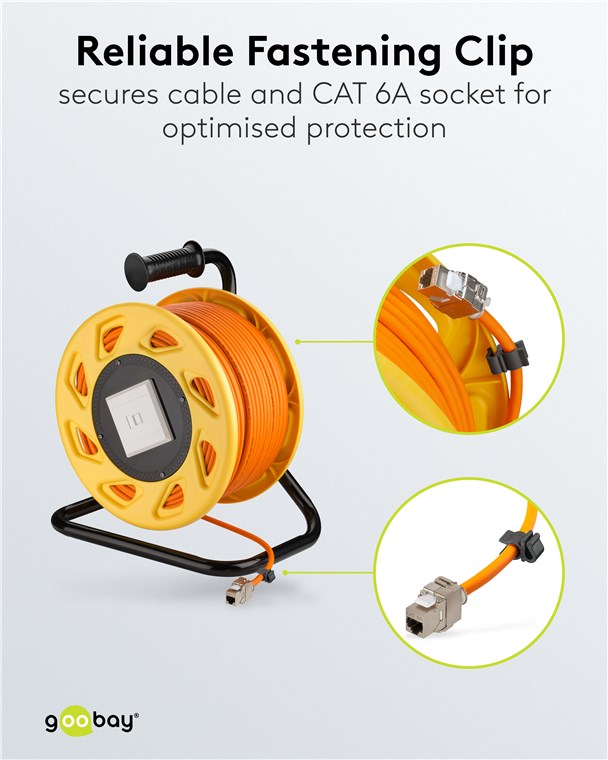

- Ethernet cable reel with Keystone CAT 6A socket and integrated CAT 6A data socket with dust protection cap

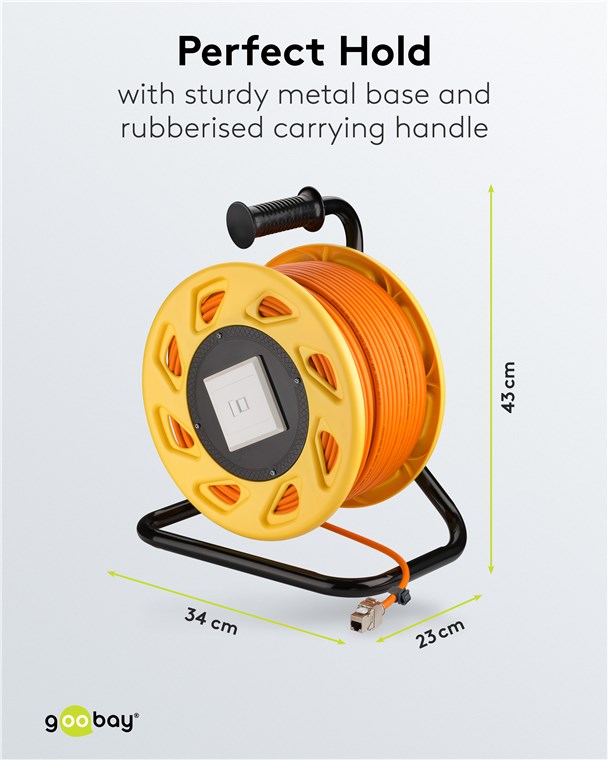

- Sturdy metal base provides a secure stand of the LAN cable drum.
- Rubberised carrying handle for a firm grip and easy cable routing
- Signal colours provide increased safety as cable and coil are clearly visible.
- The CAT 6A-tested network cable comes with a test report and supports Power over Ethernet (PoE per IEEE 802.3af, PoE+ per IEEE 802.3at).
Technical specifications
Connections
Connection, shielding
yes
Connection, type
2x RJ45 female (8P8C)
Cable
Specification
CAT 7A
Shielding class
S/FTP (PiMF)
Meter scaling
yes
Cable type
Cat 7A raw cable
Cable length
90 m
Cable sheath diameter (approx.)
7.7 mm
Inner conductor material
CU (copper)
AWG
23/1 (solid)
Number of shieldings
2 x
Type 1, shielding
foil (alu) PiMF
Type 2, shielding
braid (alu) overall shield
Material cable sheath
LSZH
LSZH compliant
yes
Signal transmission
Impedance
100 Ω
General
Color
orange
Markings
WEEE, CE, PoE
Operating temperature from
-10 °C
Operating temperature up to
60 °C
Packaging type
Bulk
Dimensions / Weight
Consumption Unit
1 pc. in cardboard box
Downloads
Packing units:
1
Item: 58938
EAN: 4040849589386
