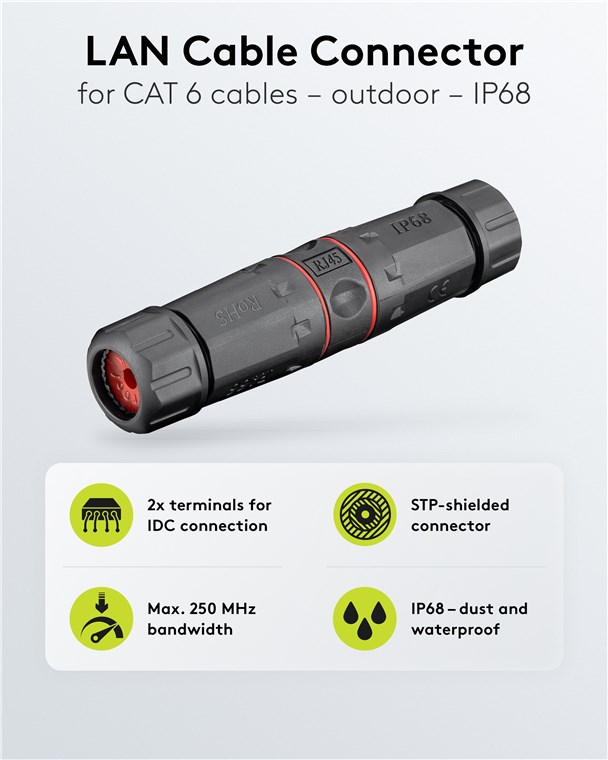

Outdoor (IP68) LAN Cable Connector, CAT 6 Shielded
dust and waterproof, for IDC connection (toolless)
Outdoor (IP68) LAN Cable Connector, CAT 6 Shielded
dust and waterproof, for IDC connection (toolless)
Article details

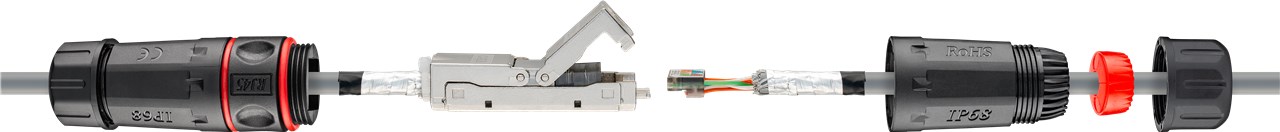

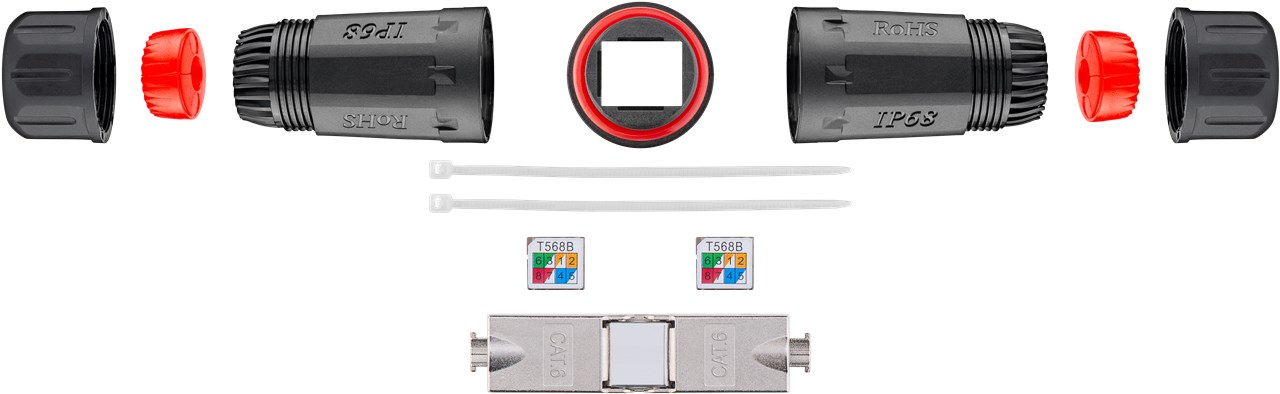

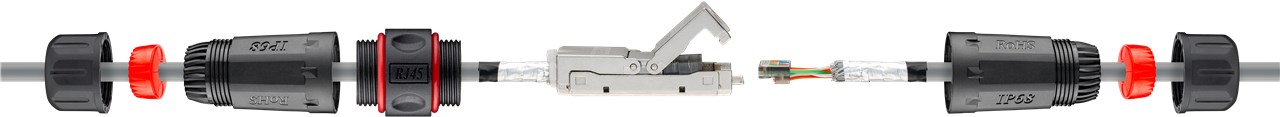

- Shielded cable connection (STP) for extending or linking 2x LAN installation cables

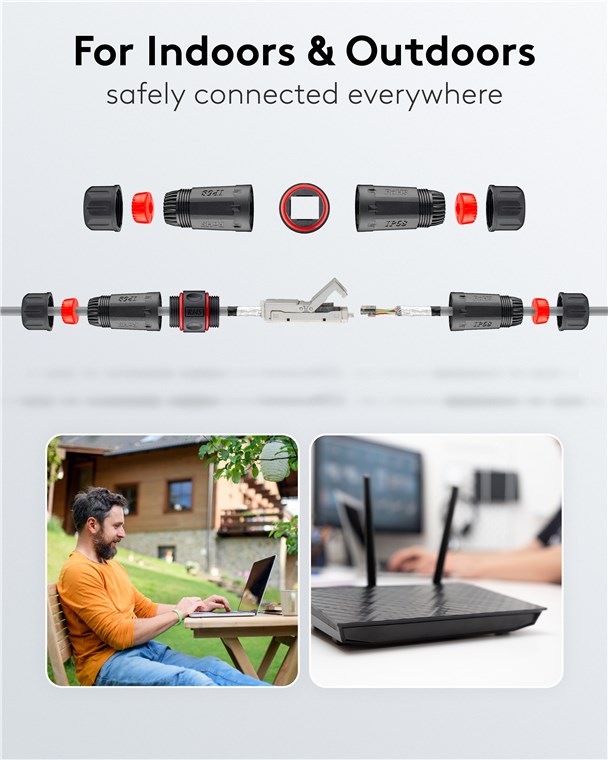

- Field assembly cable connector for outdoor and industrial applications offers protection against dirt and moisture (protection class IP68).

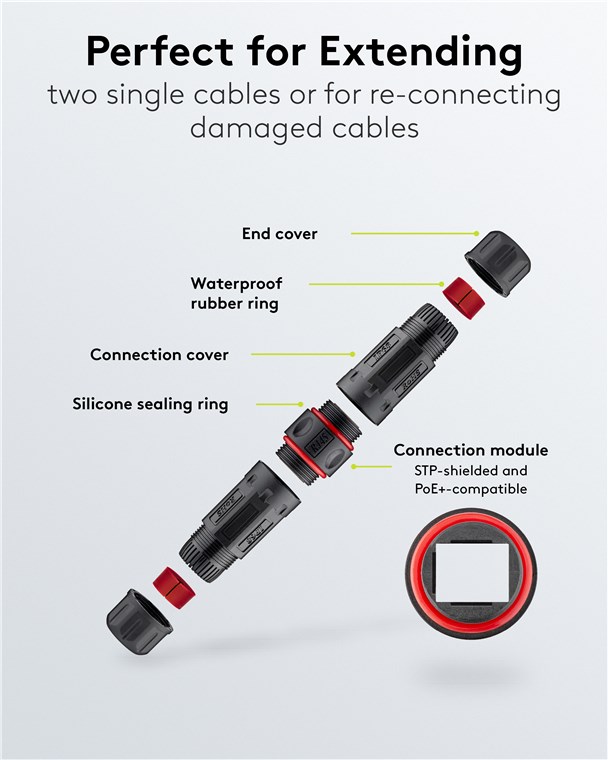

- Connector module to reconnect damaged cables without re-routing an entire cable segment.

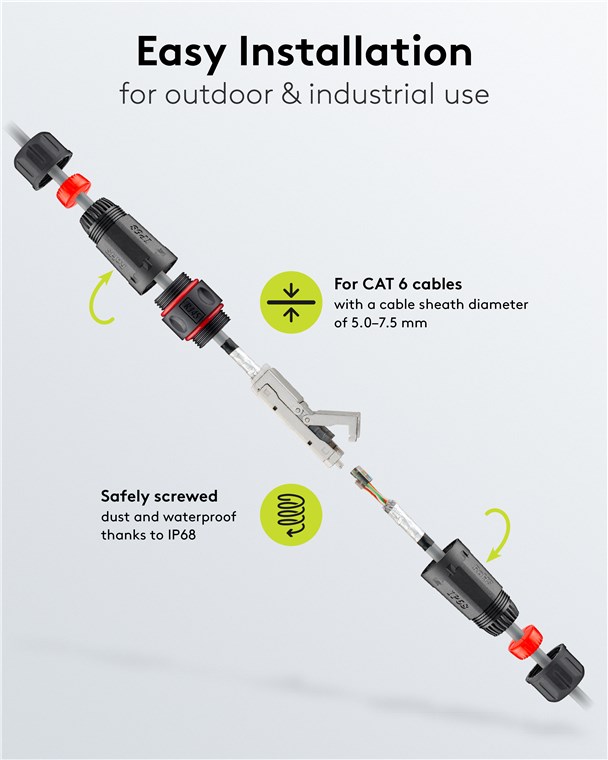

- For tool-free assembly by solderless, screwless and stripping-free connection technology IDC mounting)
- Max. data transmission of 250 MHz guarantees an excellent network connection.

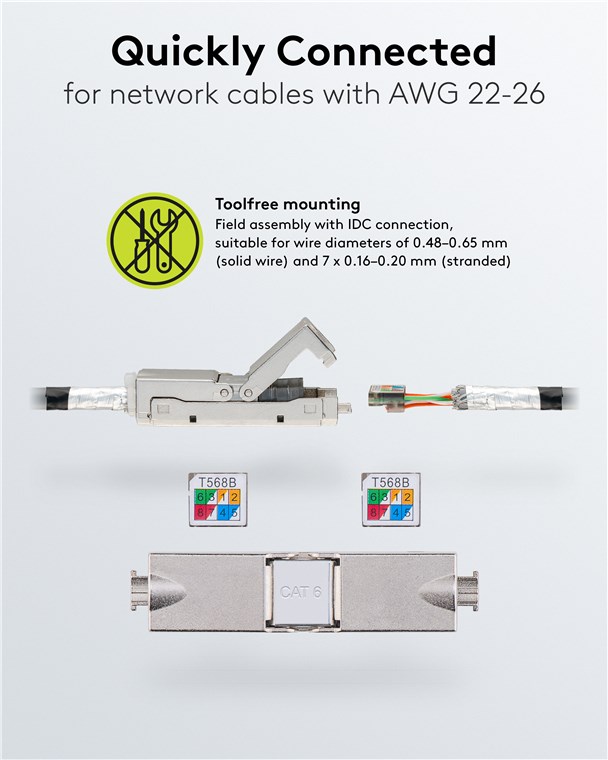

- Suitable for unterminated patch cables with AWG 22-26 (conductor diameter: solid wire 0.48 - 0.65 mm, stranded wire 7 x 0.16 mm - 7 x 0.20 mm and cable sheath diameter: 5.0 - 7.5 mm)

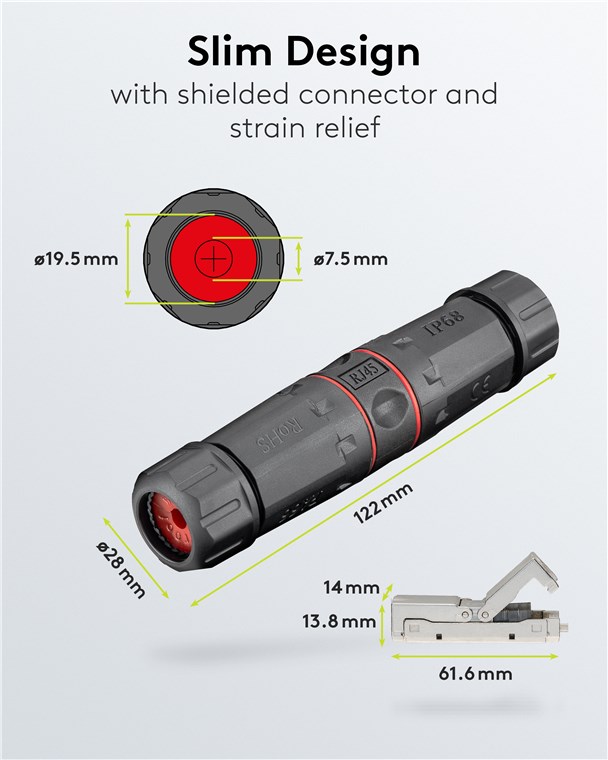

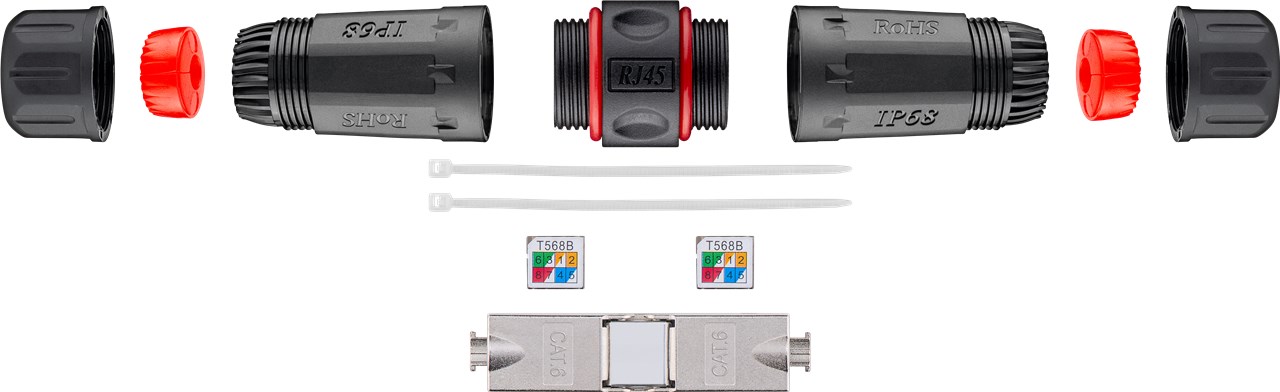

- Very slim connection module with shield connection and integrated strain relief
Technical specifications
Connections
Connection, type
for IDC connection (toolless)
Connection 2, type
for IDC connection (toolless)
Cable
Specification
CAT 6
Shielding class
STP
Signal transmission
max. bandwidth
250 MHz
General
Markings
CE
Operating temperature from
-20 °C
Operating temperature up to
85 °C
Packaging type
Bulk
Dimensions / Weight
Consumption Unit
1 pc. in polybag
Length
122 mm
Diameter
28 mm
Language Scope
Operation manual
de, en
Downloads
Packing units:
1 / 20 / 200
Item: 44417
EAN: 4040849444173
