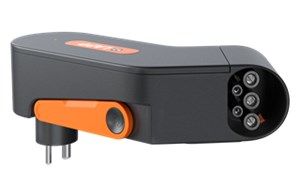

Mobile Charging Station Basic, Type 2, Safety Plug, up to 1.8 kW, 6 m
(5555921002) 8 A, 1 phase, for charging hybrid and electric cars with Type 2 connection
Mobile Charging Station Basic, Type 2, Safety Plug, up to 1.8 kW, 6 m
(5555921002) 8 A, 1 phase, for charging hybrid and electric cars with Type 2 connection
Article details
The LAPP Charging Station Basic directly connects your EV to the power source - providing full flexibility via safety plug. Simply connect the Type 2 coupling of the cable to the car and the plug to the socket. The on-board electronics automatically starts and finishes the charging process.
The LAPP charging station is suitable for plug-in hybrid (PHEV) and battery electric vehicles (BEV).
The LAPP charging station is suitable for plug-in hybrid (PHEV) and battery electric vehicles (BEV).
- The LAPP Mode 2 charger provides simple, mobile charging via standard mains sockets (safety socket CEE 7/3, plug type E/F) and is ideal in the garage at home or as an emergency charging cable on the road
- Ideal solution for safe, stable charging at up to 1.8 kW and a nominal voltage of 240 V (AC) with an interconnected control box
- Robust, vehicle-resistant cables and plugs with silver-plated contacts and the drop-proof control box (waterproof according to IP67) provide extra durability
- The cover cap on the vehicle-side coupling protects against ingress of dust, dirt and water in between charges
- EV charging cable with high moisture protection according to IP55, operating temperature -25 °C to 45 °C
- The Type 2 to Type 2 EV charging cable is space-saving and easy to handle thanks to its light weight.
- Particularly safe due to overcurrent and overvoltage protection as well as temperature monitoring in the mains plug and in the in-cable control box (ICCB)
Dimensions control box (IC-CPD): 320 x 124 x 84 mm
Technical specifications
Connections
Connection, type
type 2 female plug
Connection 2, type
safety plug hybrid (type E/F, CEE 7/7)
Performance
Loading capacity up to
1.8 kW
Charging mode
Mode 2
Rated voltage
230 V (AC)
max current capacity
8 A
Cable
Number of phases
1
Cable type
smooth cable
Cable length
6 m
Inner conductor cross-section
2.5 mm²
Material cable sheath
ÖLFLEX®CHARGE
General
Model designation
5555921002
Color
black
Markings
WEEE, CE
Operating temperature from
-25 °C
Operating temperature up to
45 °C
Packaging type
Retail Box
SCIP
SCIP no.
3a4e482d-e540-4f53-809f-2c47435e56ba
chemical substance
Pb, Dechlorane Plus
CAS no.
7439-92-1 | 13560-89-9
Downloads
Packing units:
1 / 28
Item: 64692
EAN: 4056158850895
