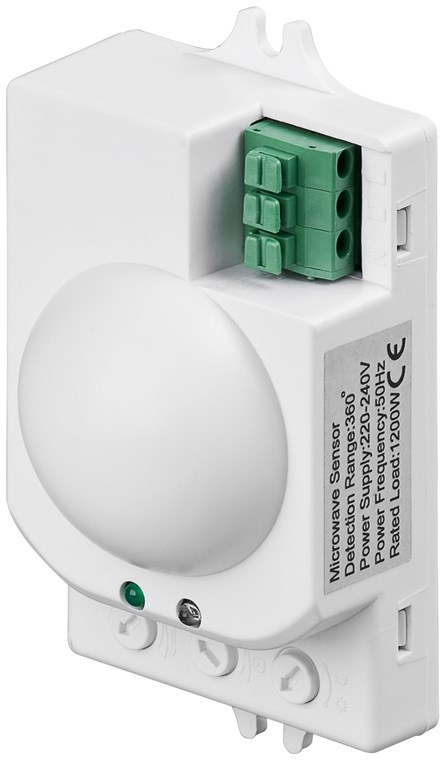

Microwave motion detector
for flush mounting, 360° detection, 8 m range, indoor use (IP20), suitable for LEDs
Microwave motion detector
for flush mounting, 360° detection, 8 m range, indoor use (IP20), suitable for LEDs
Article details
Our motion detectors for indoor and outdoor use reliably turn on the light when detecting people and animals in the dark or in the twilight. Different ranges and detection areas allow you to select the perfect motion detector for your individual needs. Goobay lights up your world. Simply. All. You need!
- Miniature design allows for almost invisible mounting in suspended ceilings and lamps
- High-frequency sensors detect movements even through glass, wood, plasterboard walls, etc.
- Motion detector is suitable for switching on lamps, luminaires and LEDs indoors
- Precise detection of people and animals in darkness or twilight
- Multi-adjustable sensor for optimal adjustment of detection
- designed for simple and quick flush mounting
- Notice: sale and use prohibited in Switzerland
Technical specifications
Connections
Connection, type
Screw clamp
Performance
Power consumption
300 W
minimum load
1
light sensitivity up to
2000 lx
operating voltage
230 V (AC)
switching power
300 W
sensor type
microwave/active radar (HF)
max. detection range
8 m
max view angle
360 °
switch-off delay from
10 s
switch-off delay to
720 s
Installation height from
1.5 m
Installation Height up to
3.5 m
Light sensitivity from
3 lx
recommended installation height
1.5 - 3.5 m
General
protection class
IP20
Color
white
Markings
CE, WEEE, Haus
Special feature
Sensor function
Packaging type
Retail Box
Dimensions / Weight
Consumption Unit
1 pc. in cardboard box
Width
45 mm
Height
93 mm
depth
47 mm
Weight
71 g
Language Scope
Operation manual
de, en, fr, it, es, nl, da, se, cz, pl
packaging
en, de, fr, it
Downloads
Item: 96011
EAN: 4040849960116
