LED Magnifying Lamp with Clamp, 9 W, white
80-730 lm, dimmable, 127 mm crystal glass lens, 1.75x magnification, 3 dioptres
LED Magnifying Lamp with Clamp, 9 W, white
80-730 lm, dimmable, 127 mm crystal glass lens, 1.75x magnification, 3 dioptres
Article details
- Brightness of the magnifier with light adjustable via touch panel, ranging from 80 lm to 730 lm in 6 steps

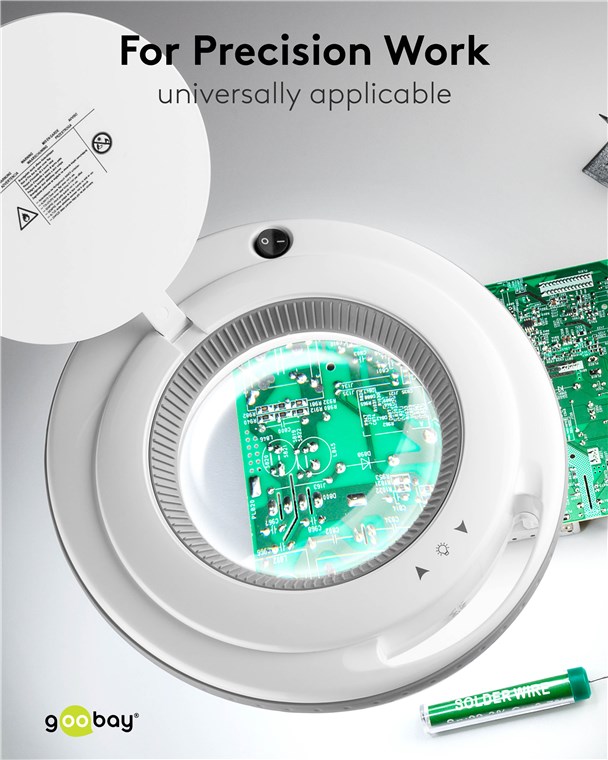

- The magnifying glass lamp with a 127 mm loupe diameter creates a harmonious, daylight-balanced LED ring illumination
- Thanks to the quick-release, you can easily and tool-free replace the crystal glass lens with 3 dioptres and 1.75x magnification (incl. protective cap).

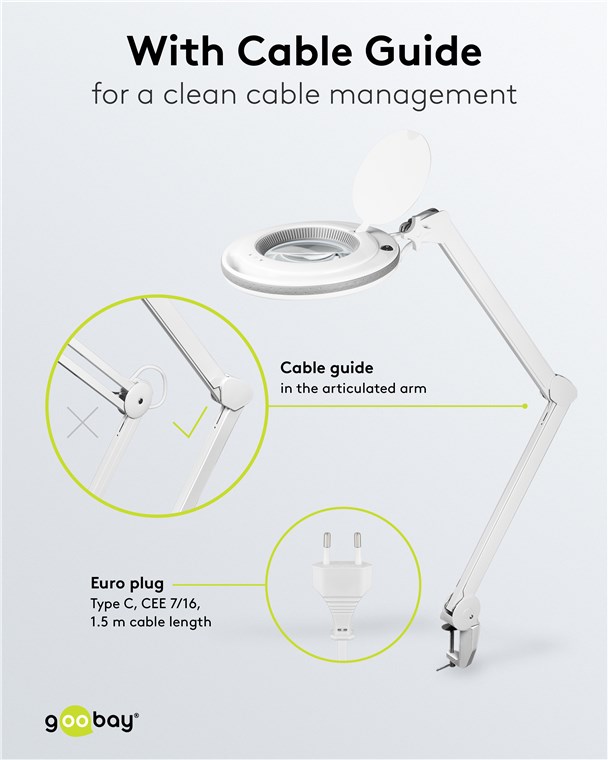

- Articulated arm of the magnifier lamp with integrated cable guide provides a flexible 700 mm working radius.
- Lens head can be tilted up to 90° and swivelled 360°, making it an ideal solution as a table magnifying glass, a desk, drawing or reading lamp.
- The multi-purpose table magnifying glass is useful e.g. in the beauty sector, as a reading aid or for precision work such as embroidery, cross-stitch and soldering.
- The clip-on of the magnifying desk lamp is suitable for a table-top thickness of up to 60 mm. Replacement table clamp: 77460, matching wall bracket: 55771.
Technical specifications
Battery
rechargeable
no
Connections
Connection, type
unearthed plug (type C, CEE 7/17)
Performance
Power consumption
9 W
luminous source
light emitting diode (LED)
Luminous color
cool white
Illuminate-Type
SMD LED
Number of LEDs
90
color temperature
6500 K
Dimmability
dimmable
Luminous flux
730 lm
Rated luminous flux
730 lm
Useful luminous flux (Φuse)
Useful luminous flux (Φuse) in a wide cone (120°)
Non-directional or directional light source
DLS
color rendering index
80 Ra
Lamp service life factor
0.9
weighted energy consumption
9 kWh/1.000 h
operating voltage
230 V (AC)
Cable
Cable length
1.5 m
Build
Beam Angle
103 °
cover type
lens
General
protection class
IP20
Appliance Class
II
Color
white
Material
plastic, metal, glass
Markings
WEEE, CE
Energy efficiency rating
F
Applications
workshop
Special feature
Crystal glass lens
rated lamp lifetime
25000 hrs.
Number of switching cycles
12500 pcs.
Peak luminous intensity (cd)
350
Chromaticity coordinate x
0.313
Chromaticity coordinate y
0.337
R9 colour rendering index value
1
lumen maintenance factor
0.96
displacement factor (cos φ1)
0.89
Colour consistency in McAdam ellipses
2
Flicker metric (Pst LM)
0.1
Stroboscopic effect metric (SVM)
0.1
Packaging type
Retail Box
Dimensions / Weight
Consumption Unit
1 pc. in cardboard box
Width
650 mm
Height
820 mm
depth
230 mm
Weight
2590 g
accessory - Power supply
Input AC frequency
50/60 Hz
Input voltage
220-240 V
Language Scope
Operation manual
de, en, fr, it, es, nl, da, se, cz, pl
packaging
cs, da, de, en, es, fr, it, nl, pl, sv
Downloads
Packing units:
1 / 4
Item: 60362
EAN: 4040849603624
