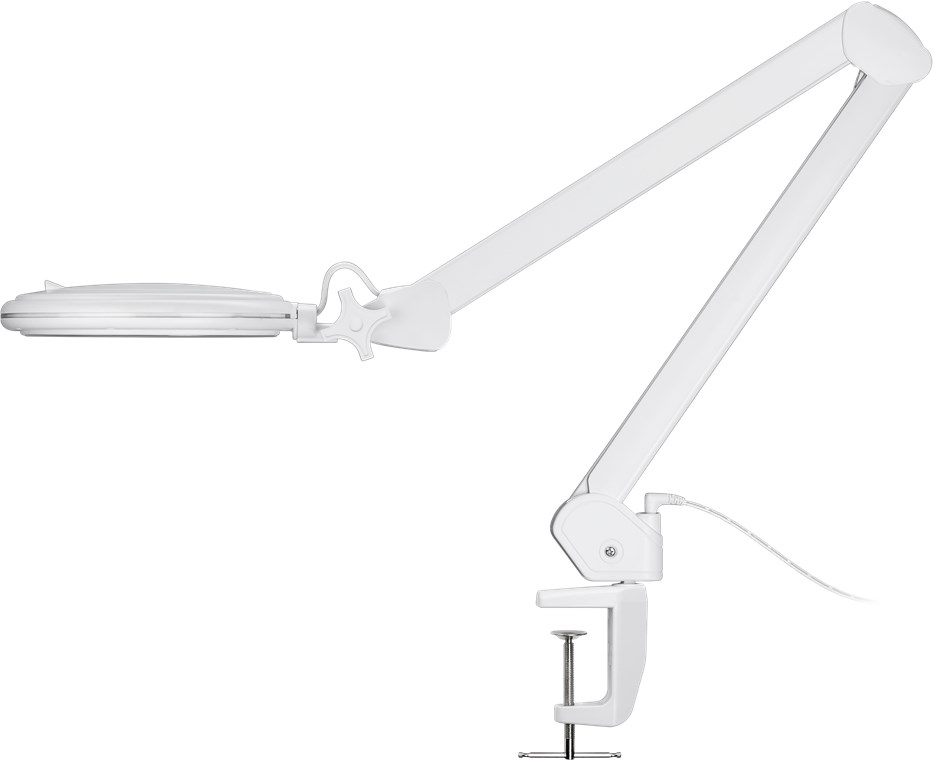

LED Magnifying Lamp with Clamp, 10 W, white
800 lm, brightness & light colour adjustable, 127 mm glass lens, 1.75x magnification, 3 dioptres
LED Magnifying Lamp with Clamp, 10 W, white
800 lm, brightness & light colour adjustable, 127 mm glass lens, 1.75x magnification, 3 dioptres
Article details
- Brightness and light colour of the magnifier lamp are adjustable in 6 steps via separate touch panels, max. 800 lm, warm white to daylight-balanced (3500 - 6500 K).
- Lens head of the magnifying glass lamp can be tilted by up to 100° and swivelled by 250°, 127 mm lens diameter creates a harmonious LED ring illumination.
- Thanks to the quick-release, you can easily and toolfree replace the crystal glass lens of the magnifier with light with 3 dioptres and 1.75x magnification (incl. protective cap)
- Articulated arm of the magnifier lamp with integrated cable guide provides flexible 700 mm working radius.
- The multi-purpose craft magnifier is useful e.g. in the beauty sector, as a reading aid or for precision work such as embroidery and soldering.
- Ideally suitable as a table magnifying glass, a craft light, a desk, drawing or reading lamp
- The clip-on of the magnifying desk lamp is suitable for a table top thickness of up to 50 mm. Replacement table clamp: 77460, matching wall bracket: 55771.
Technical specifications
Battery
rechargeable
no
Connections
Connection, type
Europlug (Type C CEE 7/16)
Performance
Power consumption
10 W
luminous source
light emitting diode (LED)
Luminous color
variable/adjustable (warm white/classic white/cool white)
Illuminate-Type
SMD LED
Number of LEDs
60
Colour temperature from
3500 K
Colour temperature to
6500 K
Dimmability
dimmable
Luminous flux
800 lm
Rated luminous flux
800 lm
Useful luminous flux (Φuse)
Useful luminous flux (Φuse) in a wide cone (120°)
Non-directional or directional light source
DLS
color rendering index
80 Ra
Lamp service life factor
0.9
weighted energy consumption
10 kWh/1.000 h
operating voltage
20 V (DC)
Device connections
Output, min. amperage
0.5 A
Output, min. amperage
0.5 A
Cable
Cable length
1.5 m
Build
Beam Angle
108 °
cover type
lens
General
protection class
IP20
Appliance Class
III
Color
white
Material
plastic, metal, glass
Markings
WEEE, CE
Energy efficiency rating
F
Applications
workshop
rated lamp lifetime
25000 hrs.
Number of switching cycles
12500 pcs.
Peak luminous intensity (cd)
273
Chromaticity coordinate x
0.313
Chromaticity coordinate y
0.337
R9 colour rendering index value
1
lumen maintenance factor
0.96
Colour consistency in McAdam ellipses
1.8
Flicker metric (Pst LM)
0.1
Stroboscopic effect metric (SVM)
0.6
Packaging type
Retail Box
Dimensions / Weight
Consumption Unit
1 pc. in cardboard box
Width
650 mm
Height
820 mm
depth
205 mm
Weight
2232 g
accessory - Power supply
Output current
0.5 A
Input AC frequency
50/60 Hz
Input voltage
220-240 V
Model identifier
XY12LF-200050VH-EW
Input current
0.3 A
Output voltage
20.0 V
Output power
10.0 W
Language Scope
Operation manual
de, en, fr, it, es, nl, da, se, cz, pl
packaging
cs, da, de, en, es, fr, it, nl, pl, sv
SCIP
SCIP no.
d58bf5d6-0458-461b-b896-b6bce0d0f531
chemical substance
Pb
CAS no.
7439-92-1
Downloads
Packing units:
1 / 4
Item: 60364
EAN: 4040849603648
