Goobay

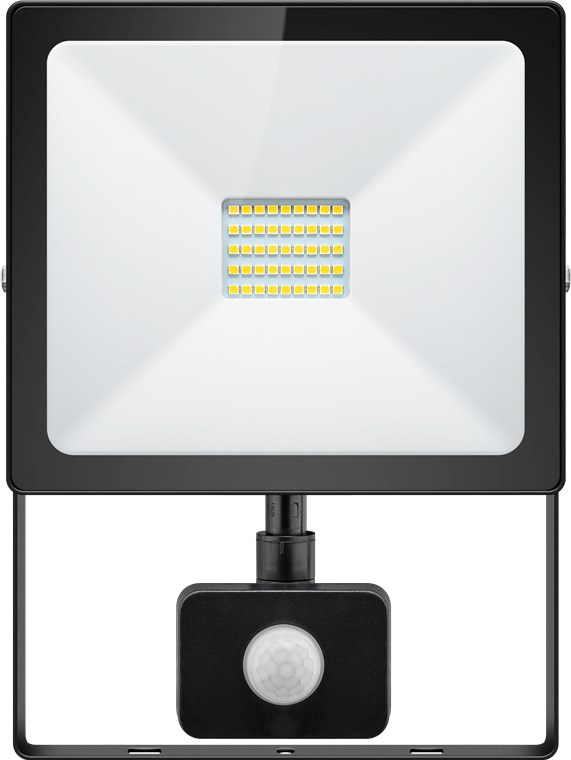

LED floodlight, 30 W, Slim Classic, with motion sensor
lighting solution with PIR sensor for building entrances, garages, carports and access paths
/5
Product and packaging similar. Subject to modifications and errors.
Goobay
LED floodlight, 30 W, Slim Classic, with motion sensor
lighting solution with PIR sensor for building entrances, garages, carports and access paths
Article details
  • extremely flat shape and high energy efficiency
  • very long service life, thanks to integrated, non-removable LED light source
  • characterised by bright, neutral white light with large beam angle of 120°
  • IP44 – splashproof (-25–40°C)
  • robust aluminium housing protects against weather

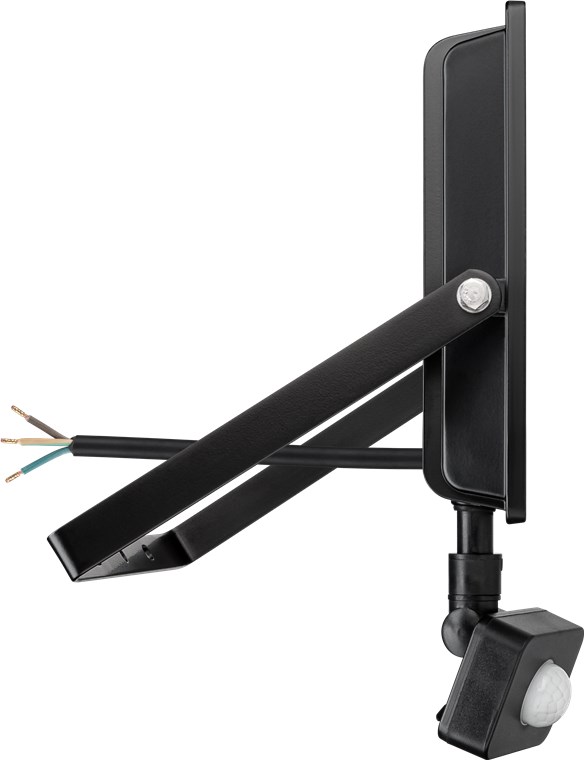

  • adjustable mounting bracket for wall mounting and approx. 30 cm connection cable with end splices

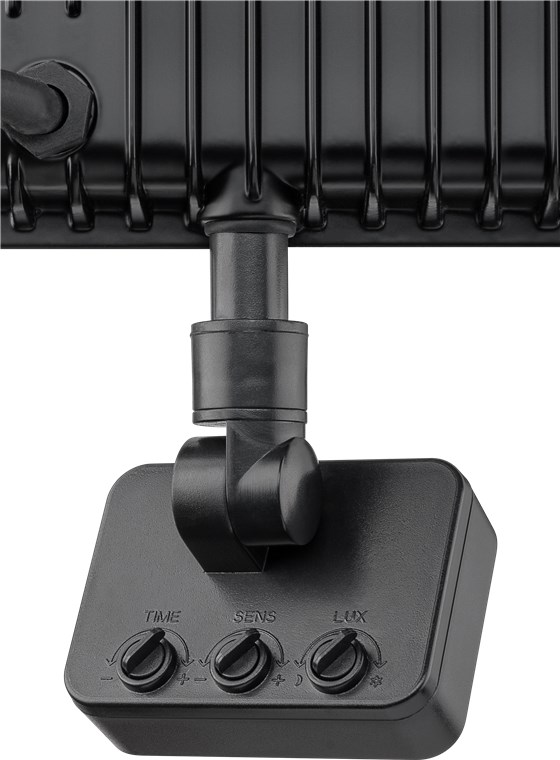

  • PIR detection range: max. 8 m at 100° angle, adjustable off-delay (10–300 sec.), light sensitivity (3–2000 lx) and range
Technical specifications
Battery
rechargeable
no
Performance
luminous source
light emitting diode (LED)
Luminous color
classic white
Illuminate-Type
SMD 2835 LED
Number of LEDs
45
color temperature
4000 K
Power consumption
30 W
corresponds light bulb
174 W
operating voltage
230 V (AC)
Dimmability
not dimmable
sensor type
passive infrared (PIR)
Max. light range
9 m
Luminous flux
2400 lm
Rated luminous flux
2400 lm
light sensitivity adjustable
3 - 2000 lx
Light yield
80 lm/W
Startup time
0.5 s
startup time to 60% light
0.5 s
color rendering index
80 Ra
electric power factor
0.9
weighted energy consumption
31.95 kWh/1.000 h
switch-off delay adjustable
10 - 300 s
max view angle
100 °
switch-off delay from
10 s
switch-off delay to
300 s
Installation height from
1.8 m
Installation Height up to
3 m
max. detection range
8 m
recommended installation height
1.8 - 3 m
Light sensitivity from
3 lx
light sensitivity up to
2000 lx
No-load power consumption
0.5 W
Cable
Cable length
0.15 m
Build
Beam Angle
120 °
General
Number of switching cycles
30000 pcs.
protection class
IP44
Appliance Class
I
Model designation
Goobay
Manufacturer designation
Goobay
Color
black
Material
aluminum
Markings
WEEE, CE
Operating temperature from
-25 °C
Operating temperature up to
40 °C
Energy efficiency rating
A 874/2012/EU
General service life
30000 hrs.
Packaging type
Retail Box
Dimensions / Weight
Consumption Unit
1 pc. in cardboard box
Width
170 mm
Height
224 mm
depth
28 mm
Weight
590 g
accessory - Power supply
Power frequency
50 Hz
Language Scope
packaging
de, en, fr, it, es, nl, da, sv, pl, cs, fi, ro, el, ru, tr
Downloads
Product data sheet pdf Instruction Manual/Safety Instructions pdf
Item: 39013
EAN: 4040849390135
Manufacturer
Wentronic GmbH, Pillmannstraße 12,
38112 Braunschweig, Germany
www.wentronic.com, cs@wentronic.com
