Series 1.4
HDMI™ Switch 2 to 1
4K@30Hz
Series 1.4
HDMI™ Switch 2 to 1
4K@30Hz
Article details

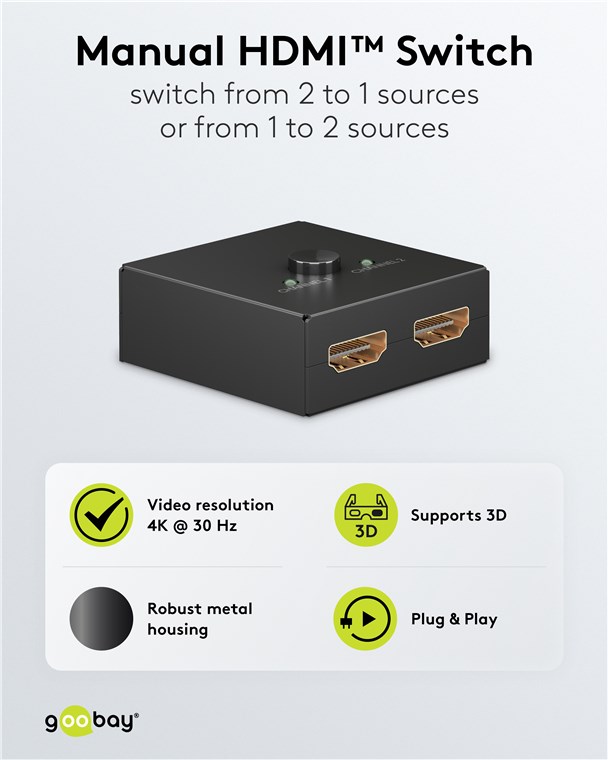

With the bidirectional HDMI™ switcher, you can conveniently switch your display, e.g. TV, monitor or projector, between 2x HDMI™ sources such as game consoles, DVD or Blu-ray players. This way, you avoid the hassle of reconnecting cables and laying an additional, second HDMI™ cable to the display.

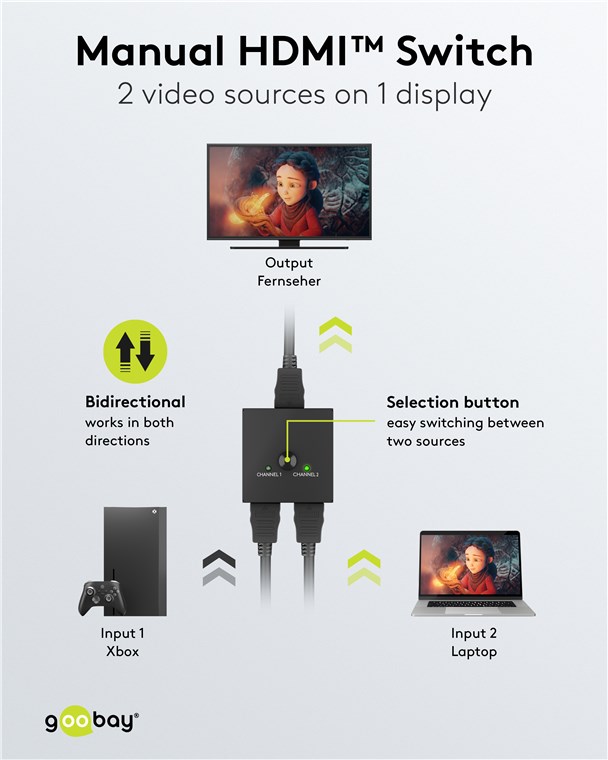

- The bi-directional HDMI™ switch routes 1x HDMI™ input signal to 2x HDMI™ end devices such as displays or optionally 2x input signals to 1x end device.
- The HDMI™ switcher 2 in 1 out supports 3D and resolutions up to 4K @ 30 Hz and is HDCP-compliant.

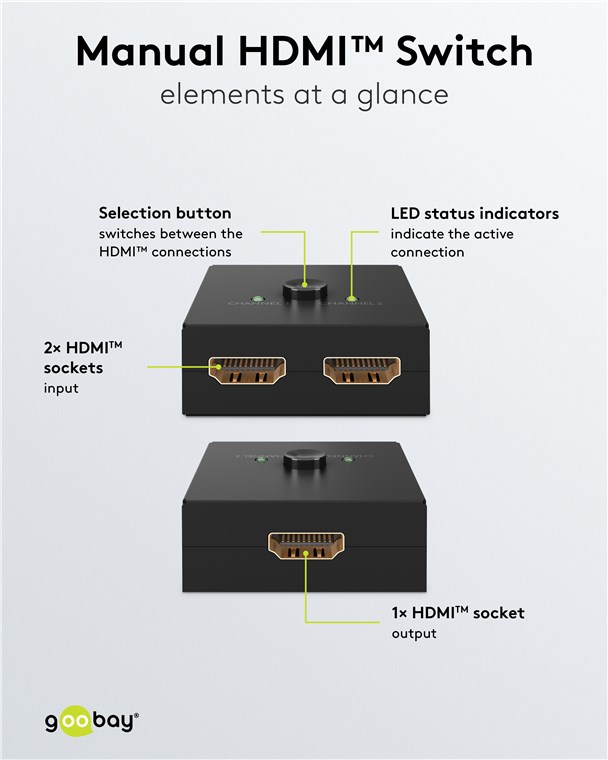

- Press the button to select either output 1 or 2 as output display.
- A convenient switch on the HDMI™ extender eliminates the need to reconnect the cables and protects the connections.
- Suitable for connecting e.g. Blu-ray player, SAT/TV receiver, computer, tablet, game consoles such as PS4 or Xbox to TV, monitor or projector.

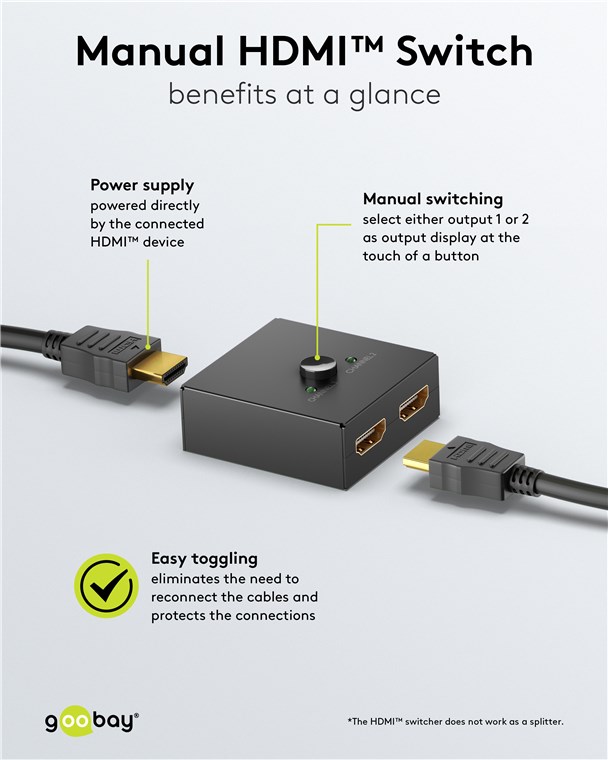

- The HDMI™ switchbox 2x1 is powered via the connected HDMI™ device, not requiring an external power supply.
- Note: The HDMI™ switcher does not work as a splitter!
Technical specifications
Labelling
Disclaimer
all brand names are registered trademarks of their owners., The terms HDMI, HDMI High-Definition Multimedia Interface, HDMI Trade Dress and
the HDMI Logos are trademarks or registered trademarks of HDMI Licensing
Administrator, Inc.
Connections
Connection type
HDMI™ female (Type A)
Connection, type
HDMI™ female (Type A)
Device connections
Input, type
2x HDMI™ female (Type A)
Output, type
HDMI™ female (Type A)
Signal transmission
Signal direction
bidirectional
Max. resolution
4K/30Hz (3840x2160) UHD
max. transmission rate
10.2 Gbit/s
other supported standards
HDCP 1.4, HDCP 1.3
supported audio standards
Dolby Atmos, Dolby Digital HD (DTS HD), Dolby Digital TrueHD, Dolby Digital 5.1 (AC-3), Dolby 5.1, Dolby 7.1, LPCM, Stereo, Audio Return Channel (ARC)
Supported video standards
4K/30Hz (3840x2160) UHD, 1080p (60Hz) Full HD, Full HD 1080i (60Hz), 3D
General
Goobay Version
1.4
Color
black
Markings
CE, WEEE
Operating temperature from
0 °C
Operating temperature up to
40 °C
Packaging type
Bulk

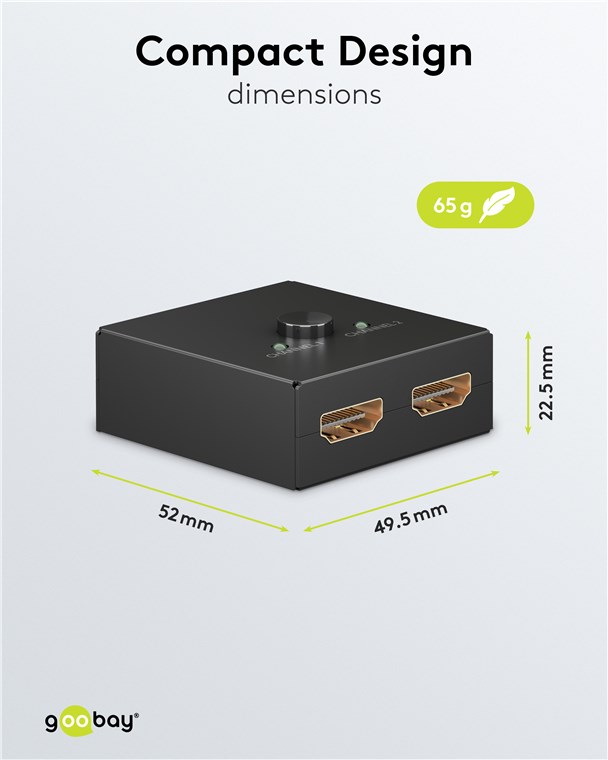

Dimensions / Weight
Consumption Unit
1 pc. in cardboard box
Length
49.5 mm
Width
52 mm
Height
22.5 mm
Weight
65 g
Scope of delivery
Scope of delivery
manual
Downloads
Packing units:
1 / 100
Item: 58485
EAN: 4040849584855
