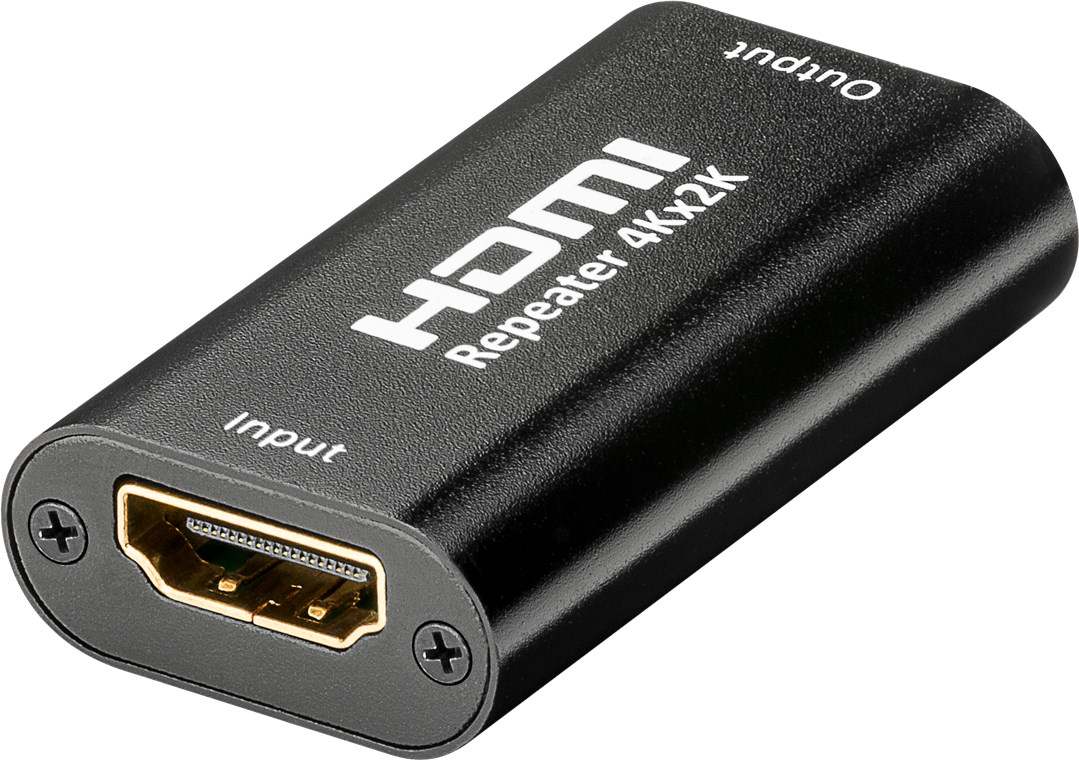

HDMI™ 4K2K repeater, gold-plated
for extending HDMI™ signals to up to 40 m
HDMI™ 4K2K repeater, gold-plated
for extending HDMI™ signals to up to 40 m
Article details
- integrated signal amplifier for extending HDMI™ signals to up to 40 m
- supports 3D, Ultra HD up to 4K@30 Hz
- complies with the HDMI™ 1.4b standard with a data rate of 3.4 Gbit/s (single link)
- supports HDCP 1.4
- no additional software installation required
Technical specifications
Labelling
Disclaimer
all brand names are registered trademarks of their owners., The terms HDMI, HDMI High-Definition Multimedia Interface, HDMI Trade Dress and
the HDMI Logos are trademarks or registered trademarks of HDMI Licensing
Administrator, Inc.
Connections
Connection, type
HDMI™ female (Type A)
Connection, contact material
gold-plated
Device connections
Input, type
HDMI™ female (Type A)
Output, type
HDMI™ female (Type A)
number of inputs
1
Number of outputs
1
Signal transmission
supported audio standards
4K 3D
Supported video standards
4K/30Hz (3840x2160) UHD
General
Color
black
Material
aluminum
Markings
CE, WEEE
Operating temperature from
0 °C
Operating temperature up to
70 °C
Packaging type
Retail Blister
Dimensions / Weight
Consumption Unit
1 pc. in blister
Length
51 mm
Width
28 mm
Height
13 mm
Weight
21 g
Scope of delivery
Scope of delivery
manual
Language Scope
packaging
en, de, fr, it
Downloads
Item: 58970
EAN: 4040849589706
