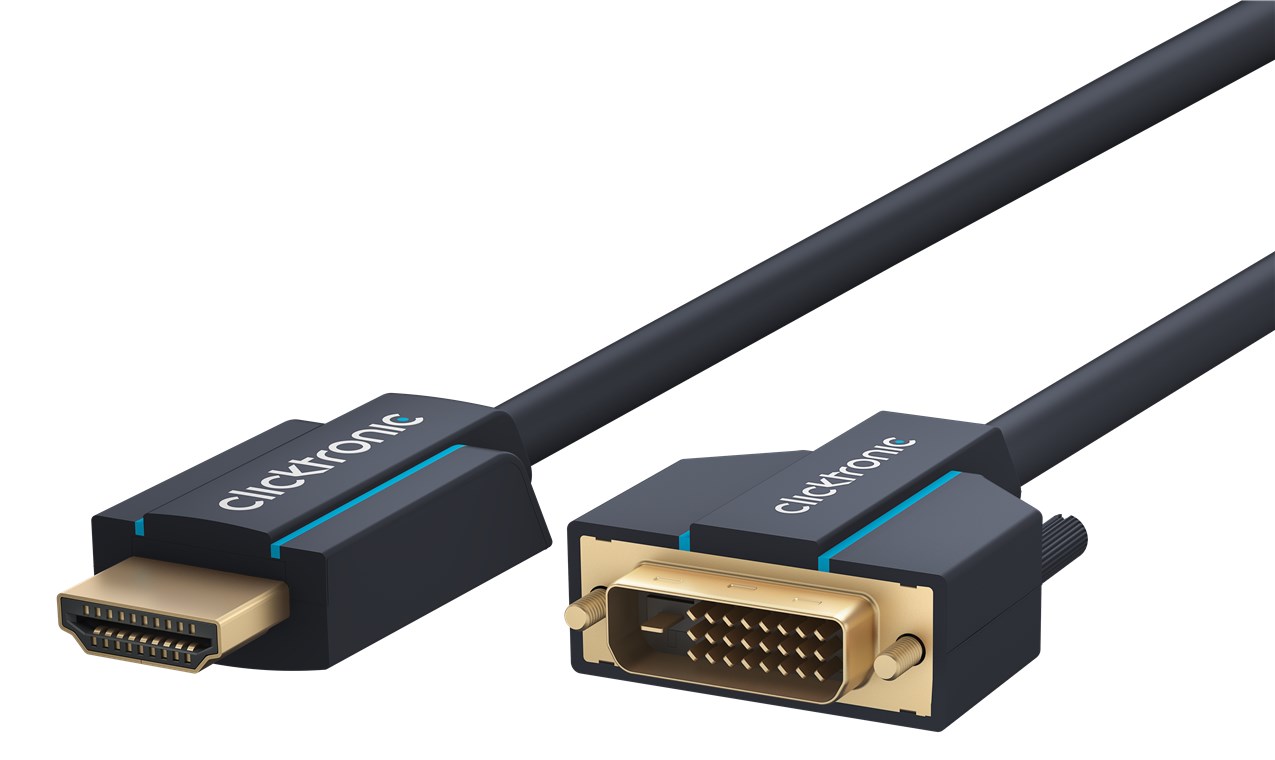

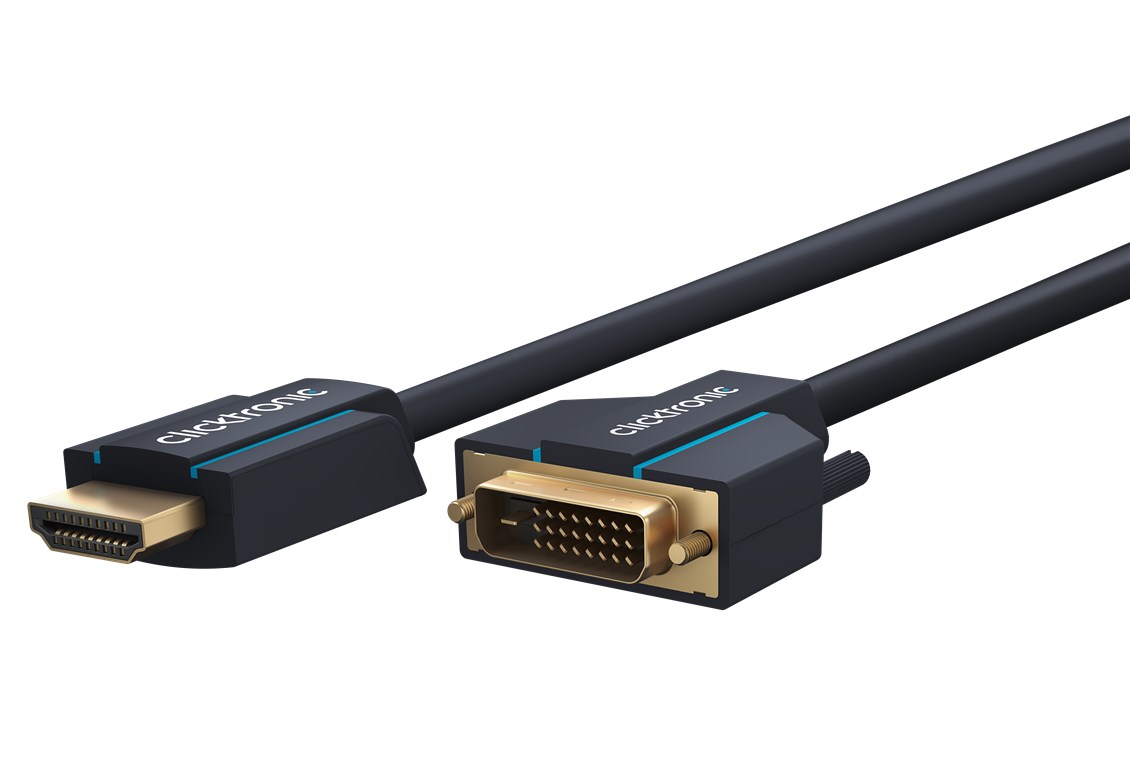

DVI to HDMI™ Adapter Cable

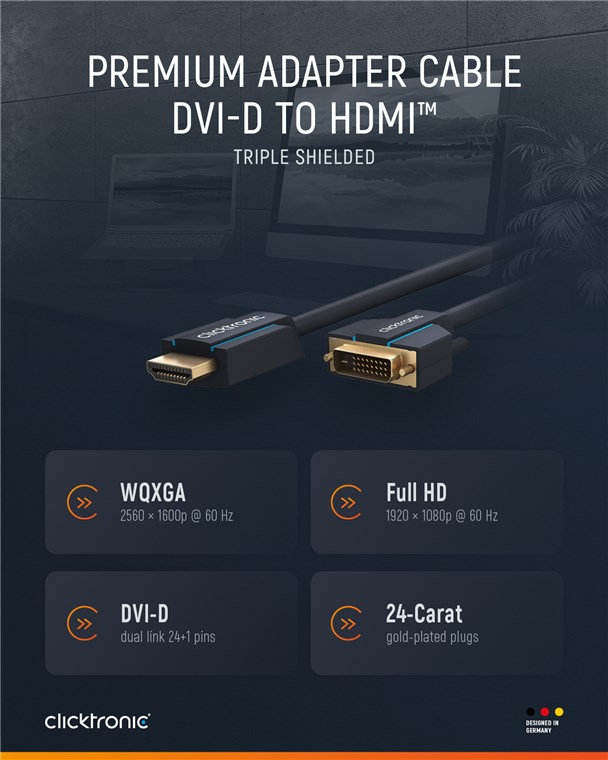

Premium cable | 1x DVI-D plug Dual-Link (24+1) <> 1x HDMI™ plug | 1.0 m | WQXGA @ 60 Hz
DVI to HDMI™ Adapter Cable
Premium cable | 1x DVI-D plug Dual-Link (24+1) <> 1x HDMI™ plug | 1.0 m | WQXGA @ 60 Hz
Article details

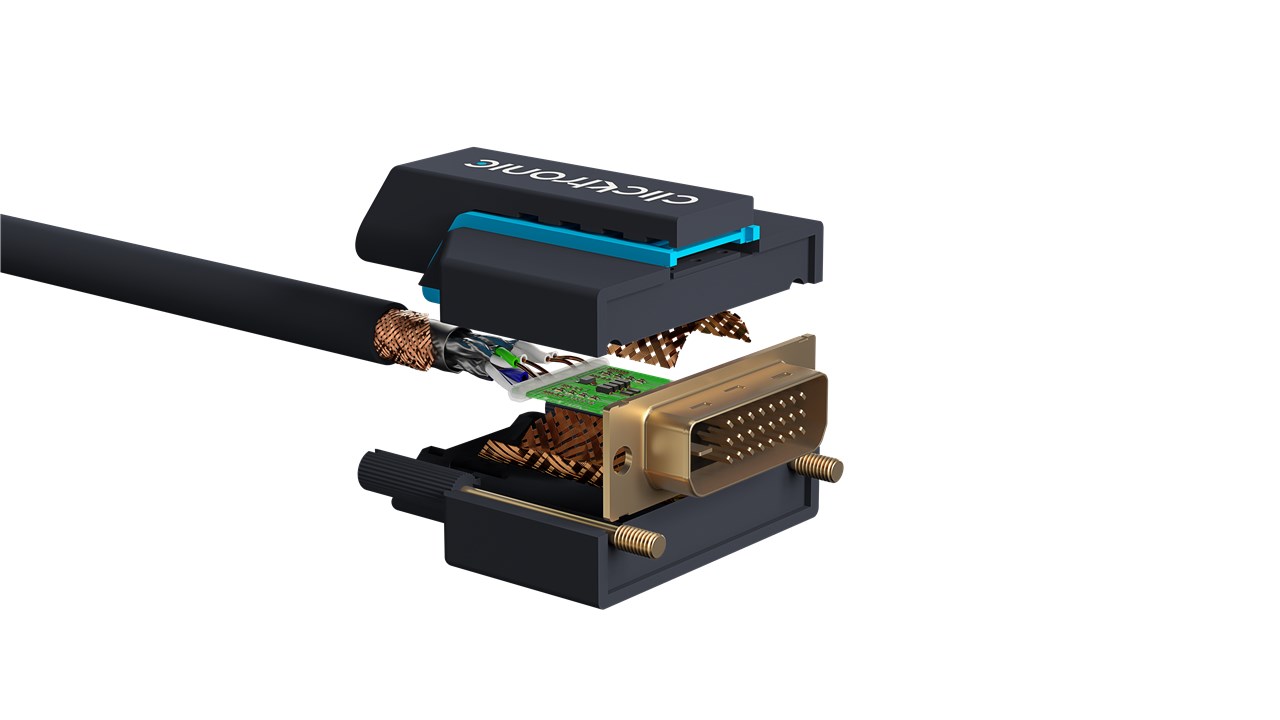

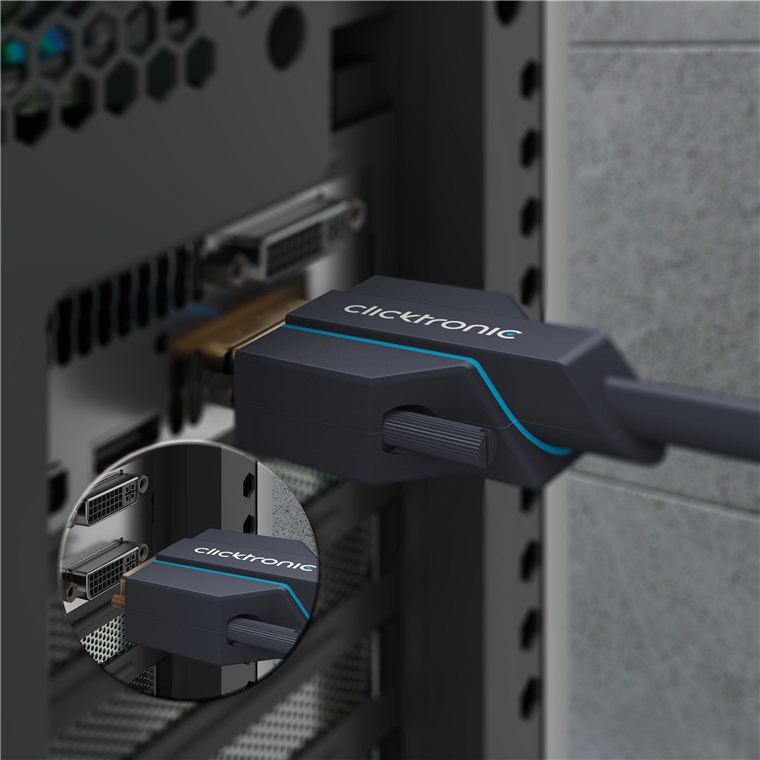

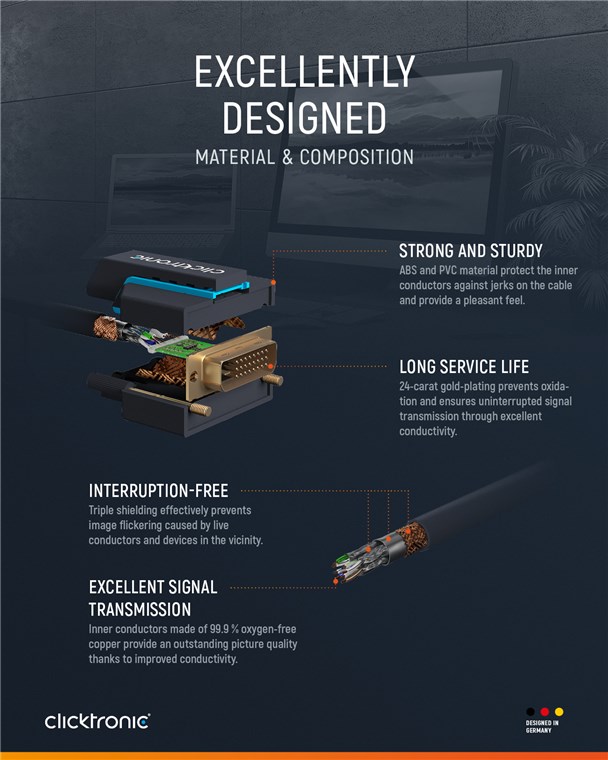

Clicktronic attaches great importance to durability and stability. Our quality promise: 10-year warranty on our HDMI™ cables. The proprietary construction of our connection cables makes them extremely robust. The three-part connector construction made of PVC and ABS components compensates for jerky pulling on the cable, making it ideally protected against cable breakage. High-quality, gold-plated contacts and pure copper conductors transmit digital signals in maximum quality. The screwable attachment on the DVI-D connector ensures a secure hold and optimal transmission even with moving monitors. The DVI-D-to-HDMI™ adapter cable enables a razor-sharp image and has a fast transmission speed.

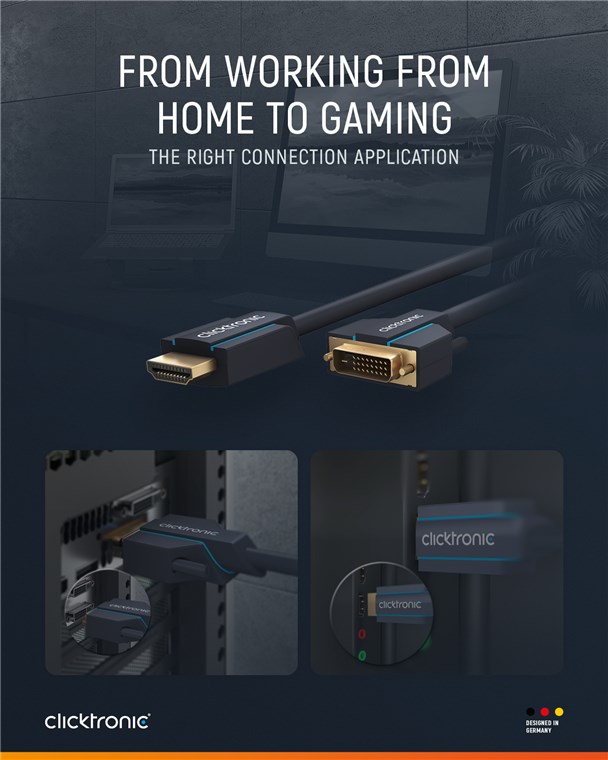

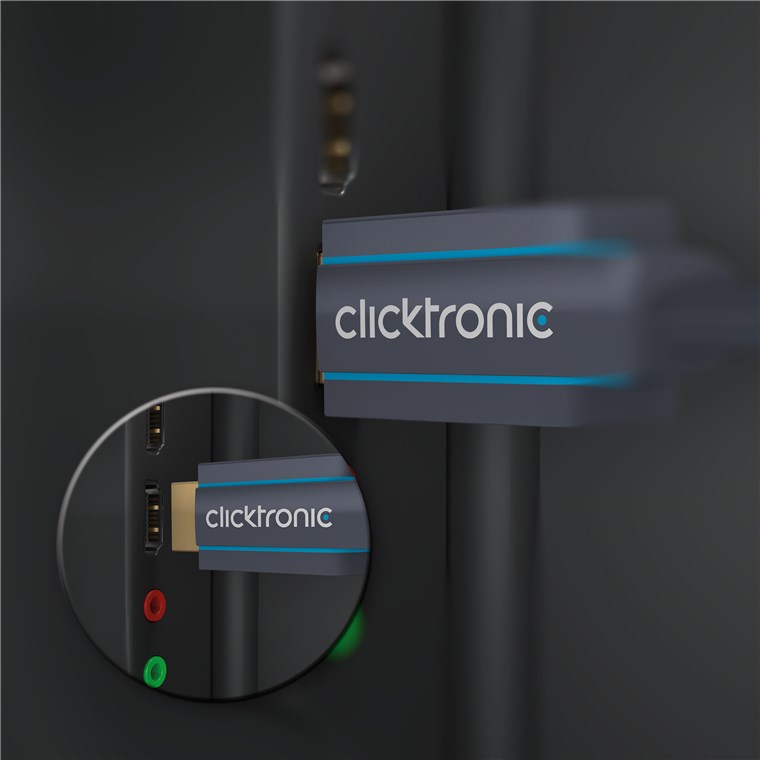

- DVI-D to HDMI™ cable is ideal for connecting monitors to entertainment media such as gaming PC, game console or Blu-Ray player.
- Transmits digital audio and video signals in both directions, e.g. from gaming PC to monitor
- UHD signal transmission with WQXGA @ 60 Hz (1600p) and Full HD @ 60 Hz (1080p)
- HDMI™ connection cable with max. transfer rate of up to 4.95 Gbit/s
- 24-carat gold-plated HDMI™ connectors and advanced technology guarantee flawless signal quality without image transmission delays for an optimal entertainment experience.
- 2-fold shielding and inner conductor made of 99.9 % oxygen-free copper for crystal-clear sound and pin-sharp video and picture quality
- Flexible bend protection and robust PVC cable sheathing allow the connection cable to be bent without damage.
Technical specifications
Labelling
Disclaimer
The terms HDMI, HDMI High-Definition Multimedia Interface, HDMI Trade Dress and
the HDMI Logos are trademarks or registered trademarks of HDMI Licensing
Administrator, Inc.
Connections
Connection, contact material
gold (24 kt)
Connection, housing material
ABS, PVC
Connection, shielding
yes
Connection type
HDMI™ connector male (type A), DVI konektor
Connection, type
HDMI™ connector male (type A)
Connection 2, type
DVI-D male Dual-Link (24+1 pin)
Kink protection
both sides
Cable
Cable type
round cable
Cable length
1 m
Cable sheath diameter (approx.)
6 mm
Inner conductor material
CU (copper)
AWG
30

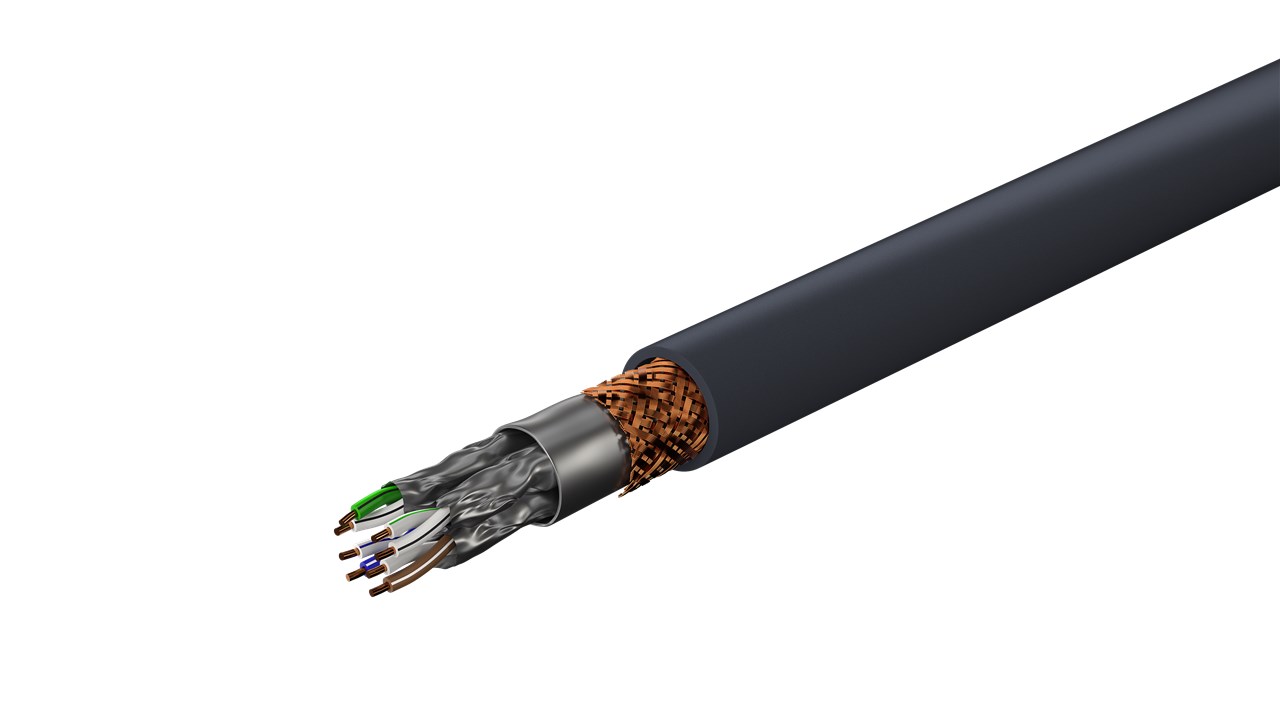

Number of shieldings
3 x
Type 1, shielding
braid (copper) 112x
Type 2, shielding
foil (aluminium)
Type 3, shielding
foil (aluminium)
Material cable sheath
PVC
Ferrite core
no
Signal transmission
max. transmission rate
4.95 Gbit/s
General
Markings
WEEE, CE, ULTRAHD 4K@50/60 Hz, HDMI™ High Speed
Operating temperature from
-10 °C
Operating temperature up to
80 °C
Warranty
10 years
Packaging type
Retail Box
Dimensions / Weight
Consumption Unit
1 pc. in cardboard box
Downloads
Packing units:
1 / 20 / 40
Item: 70340
EAN: 4040849703409
