Plus Series
DisplayPort™ to HDMI™ Cable
4K/60Hz
Plus Series
DisplayPort™ to HDMI™ Cable
4K/60Hz
Article details

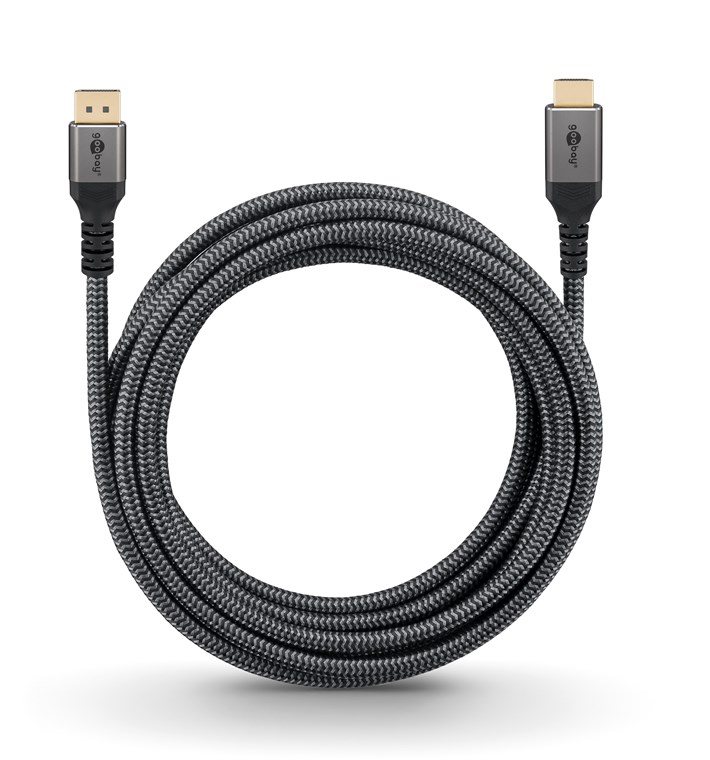

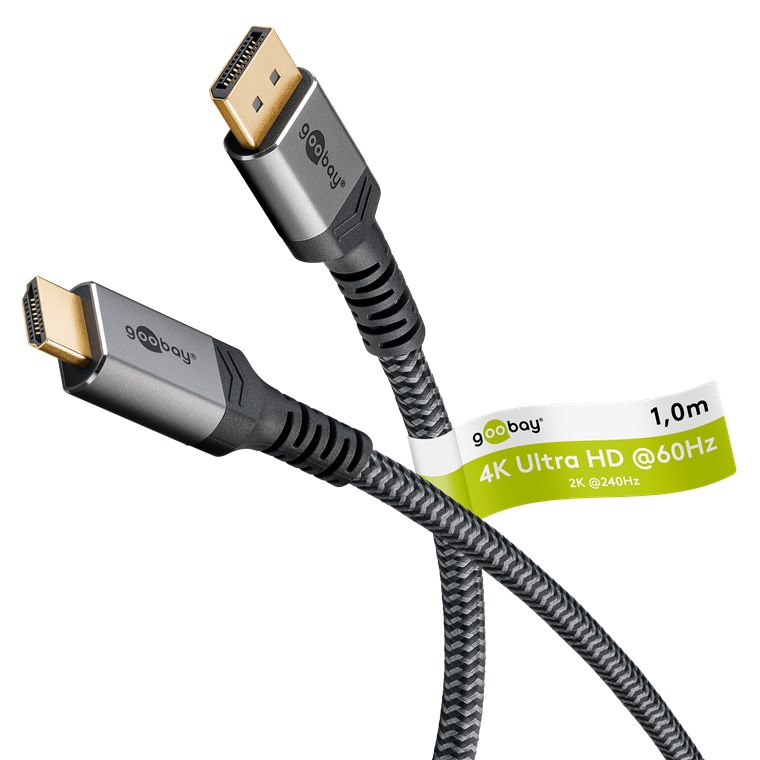

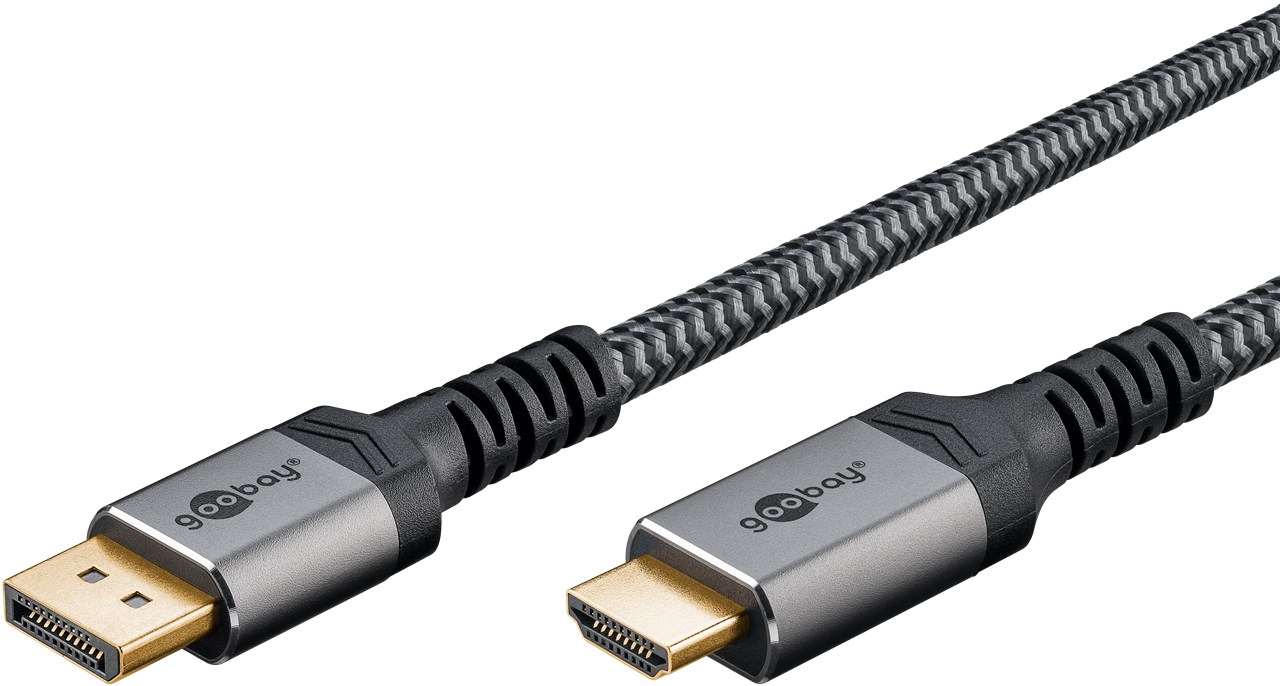

The Goobay Plus series comes in a slim, elegant metal design in Sharkskin Grey. The cable provides an easy solution for connecting a DisplayPort™ source to a TV or monitor with HDMI™ connection - for a razor-sharp picture with up to 4K and an immersive sound experience via devices without their own DisplayPort™ connection.

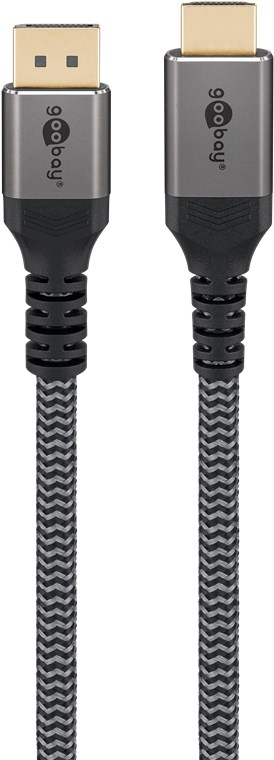

- Passive DisplayPort™-to-HDMI™ cable for audio and video transmission from the laptop, PC or graphics card with DisplayPort™ to a TV, monitor or projector with HDMI™ connection
- With DisplayPort™ 1.2 and HDMI™ 2.0, the cable achieves Ultra HD resolutions of up to 4K @ 50/60 Hz and a data transfer rate of max. 18 Gbit/s
- The DisplayPort™ cable is directional (unidirectional) and exclusively transmits from a DisplayPort™ source to an HDMI™ target device

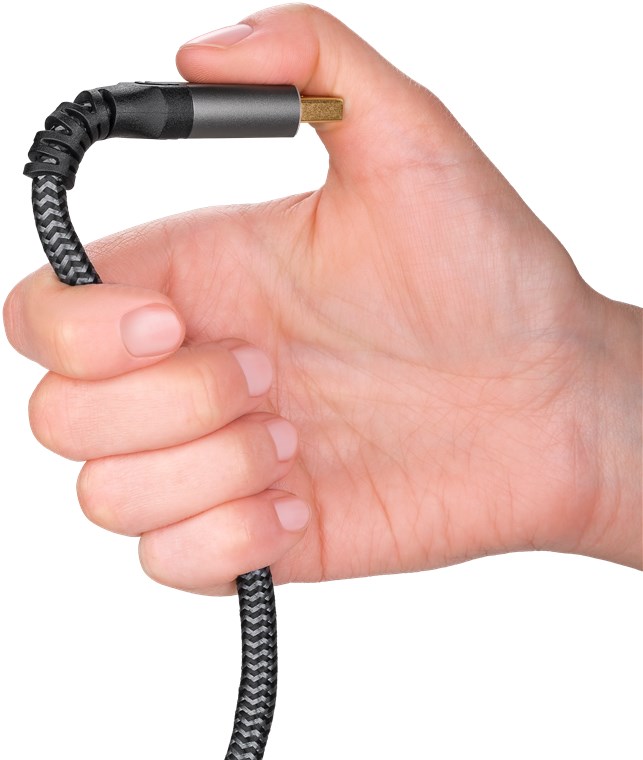

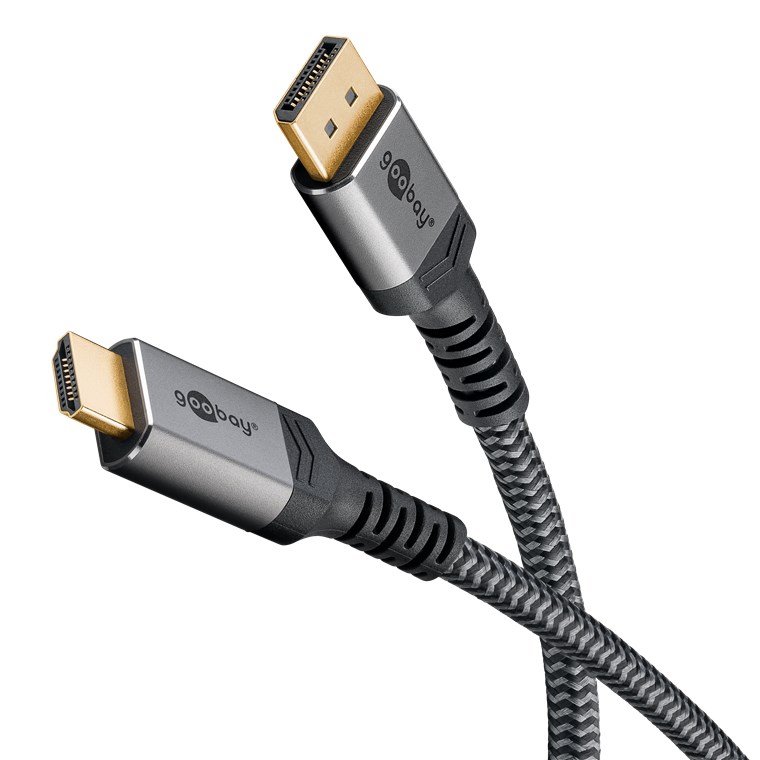

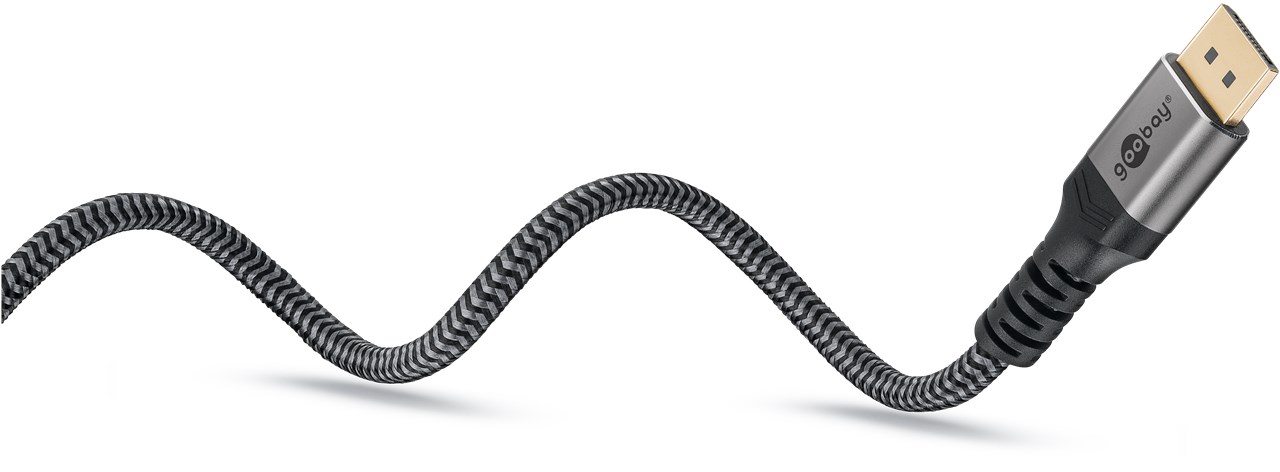

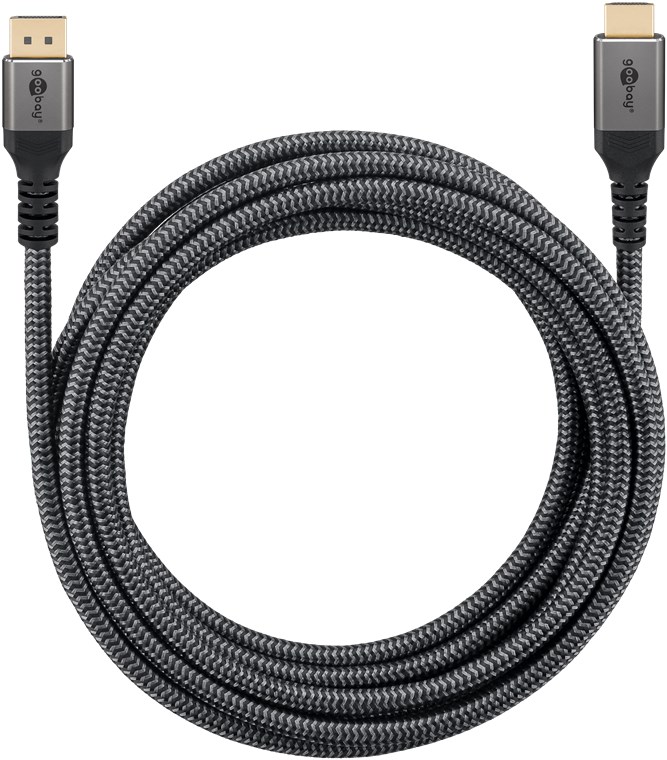

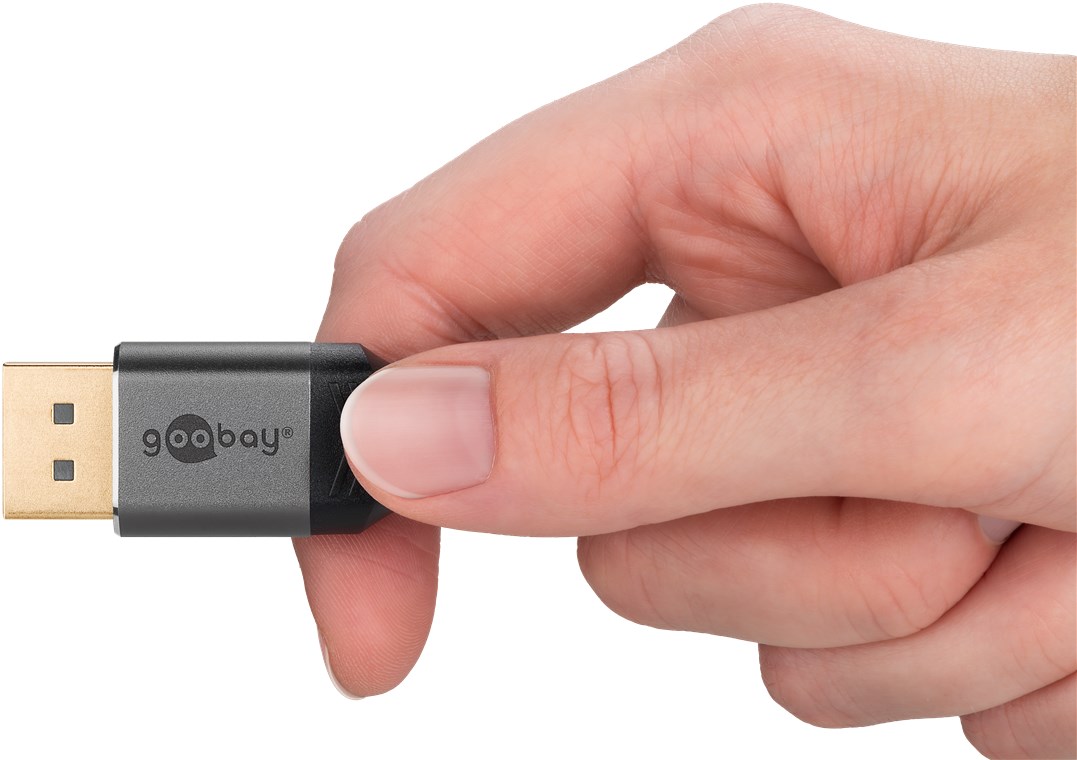

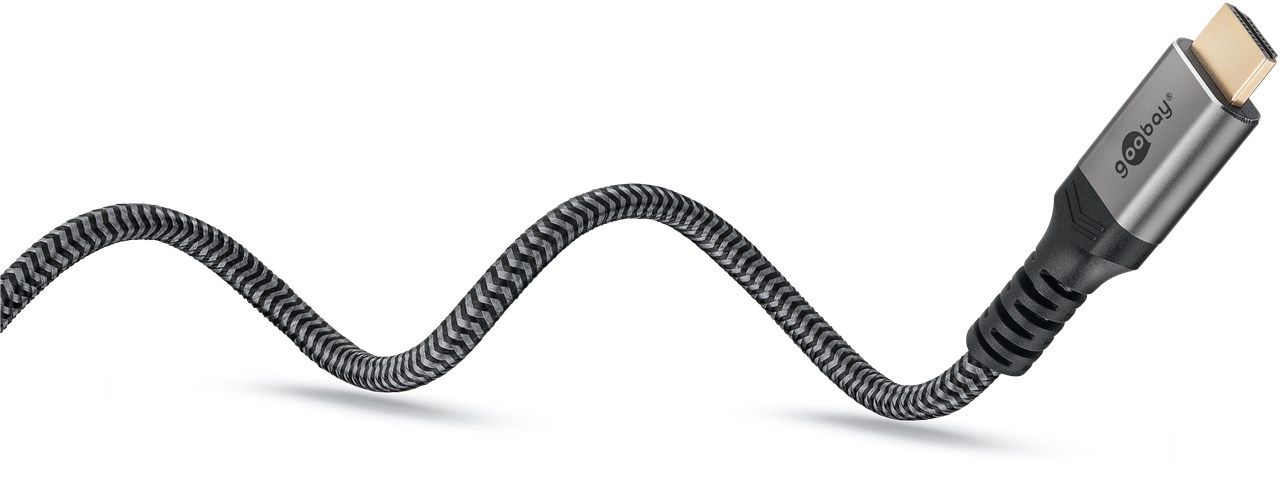

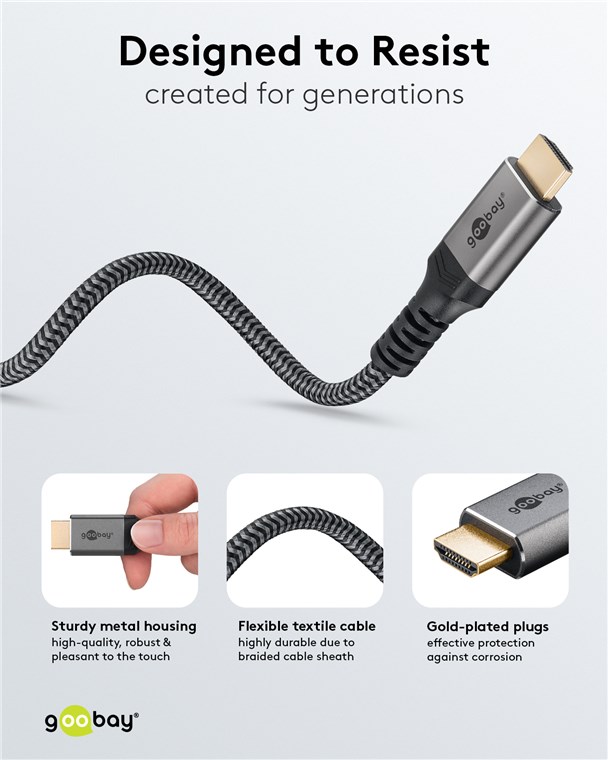

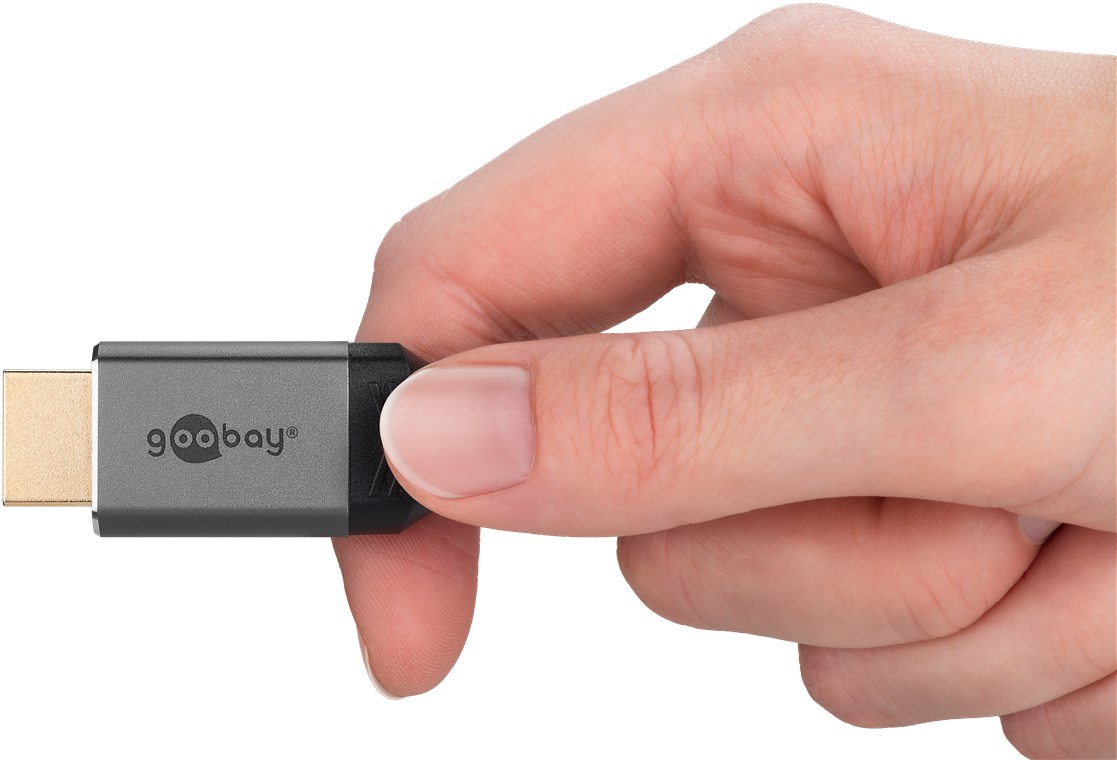

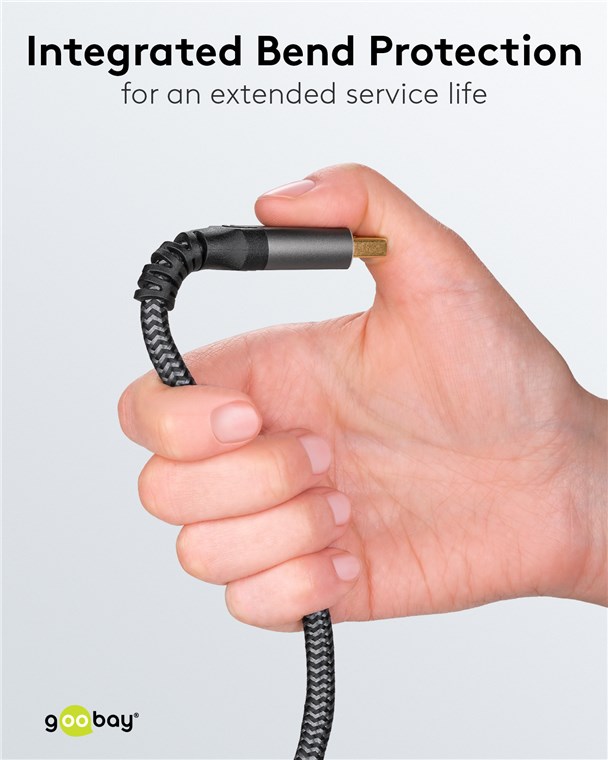

- Flexible premium cable with slim metal plugs, bend protection and colour-matched textile cable
- The braided textile sheath of the monitor cable provides a pleasant feel and is gentle on sensitive surfaces
- The gold-plated plugs prevent corrosion and are especially durable
Technical specifications
Labelling
Disclaimer
all brand names are registered trademarks of their owners., The terms HDMI, HDMI High-Definition Multimedia Interface, HDMI Trade Dress and
the HDMI Logos are trademarks or registered trademarks of HDMI Licensing
Administrator, Inc.
Connections
Connection, contact material
Gold-plated
Connection, housing material
Aluminium
Connection type
DisplayPort™ connector, HDMI™ connector male (type A)
Connection, type
DisplayPort™ male
Connection 2, type
HDMI™ connector male (type A)
Kink protection
yes
Cable
Cable type
round cable

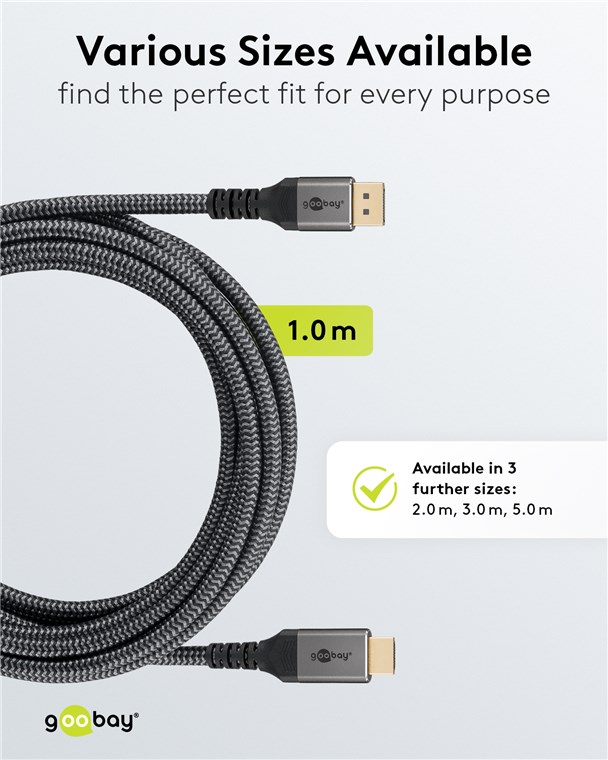

Cable length
1 m
Cable sheath diameter (approx.)
6 mm
Inner conductor material
CU (copper)
Inner conductor cross-section
0.254 mm²
Cable structure
19+1
AWG
30
Number of shieldings
3 x
Type 1, shielding
foil (aluminium)
Type 2, shielding
foil (aluminium)
Type 3, shielding
braid (aluminium) 16x
Signal transmission
Max. resolution
4K/60Hz (3840 x 2160) UHD
Supported video standards
4K/30Hz (3840 x 2160) UHD
max. transmission rate
21.6 Gbit/s
General
Goobay Version
2.0
Color
black, silver
Markings
CE, WEEE
Packaging type
Retail Polybag
Dimensions / Weight
Consumption Unit
1 pc. in polybag
Downloads
Packing units:
1 / 56 / 112
Item: 65268
EAN: 4040849652684
