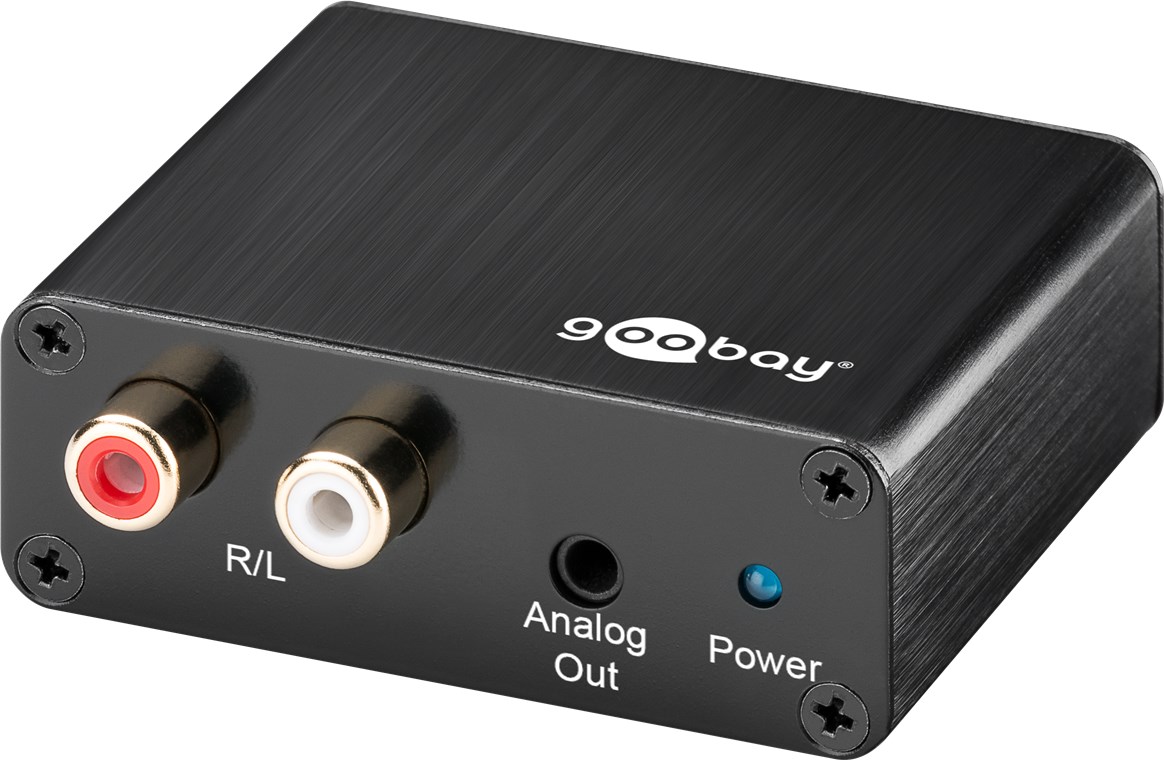

Digital/analogue audio converter
converts digital electronic signals into analogue audio signals
Digital/analogue audio converter
converts digital electronic signals into analogue audio signals
Article details
- converts digital electronic signals into analogue audio signals
- use for connecting to audio amplifier or AV receiver if there are no digital audio inputs
- supports sampling rates of 32, 44.1, 48, 96 and 192 KHz
- compact housing
- easy to install and use
Technical specifications
ErP
Average active efficiency
75.3 %
No-load power consumption
0.07 W

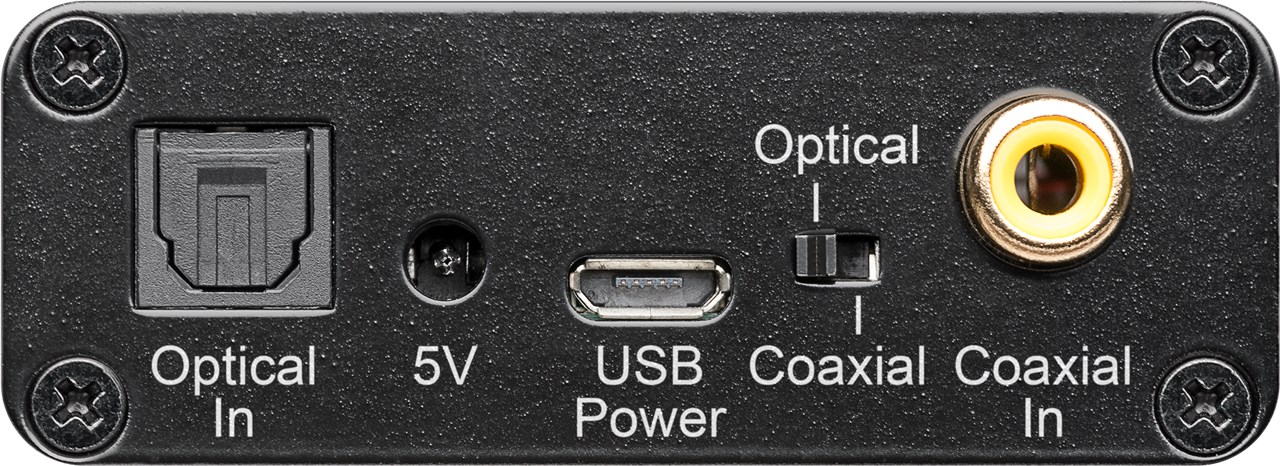

Device connections
Input, type
Toslink female
Output, type
2 RCA female (audio left/right)
Input 2, type
RCA female (digital audio, S/PDIF)
General
Color
black
Material
aluminum
Markings
CE, WEEE
Operating temperature from
0 °C
Operating temperature up to
70 °C
Packaging type
Retail Box
Dimensions / Weight
Consumption Unit
1 pc. in cardboard box
Length
68 mm
Width
63 mm
Height
23 mm
Weight
66 g
Scope of delivery
Scope of delivery

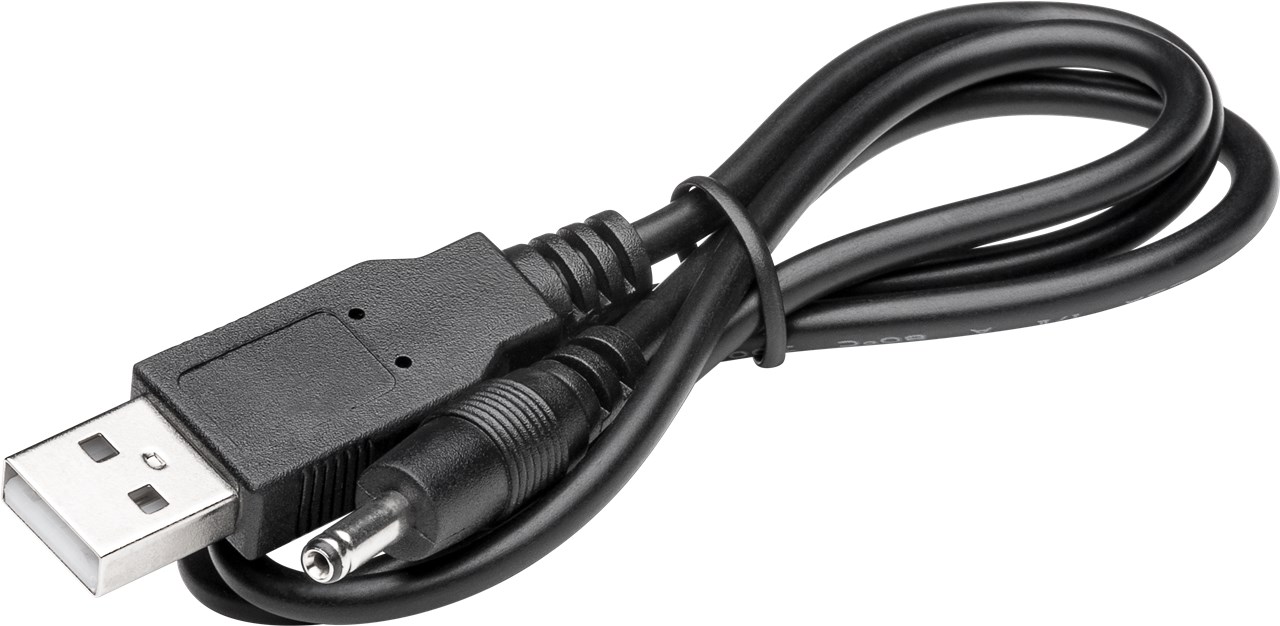

manual, power supply, USB to DC plug

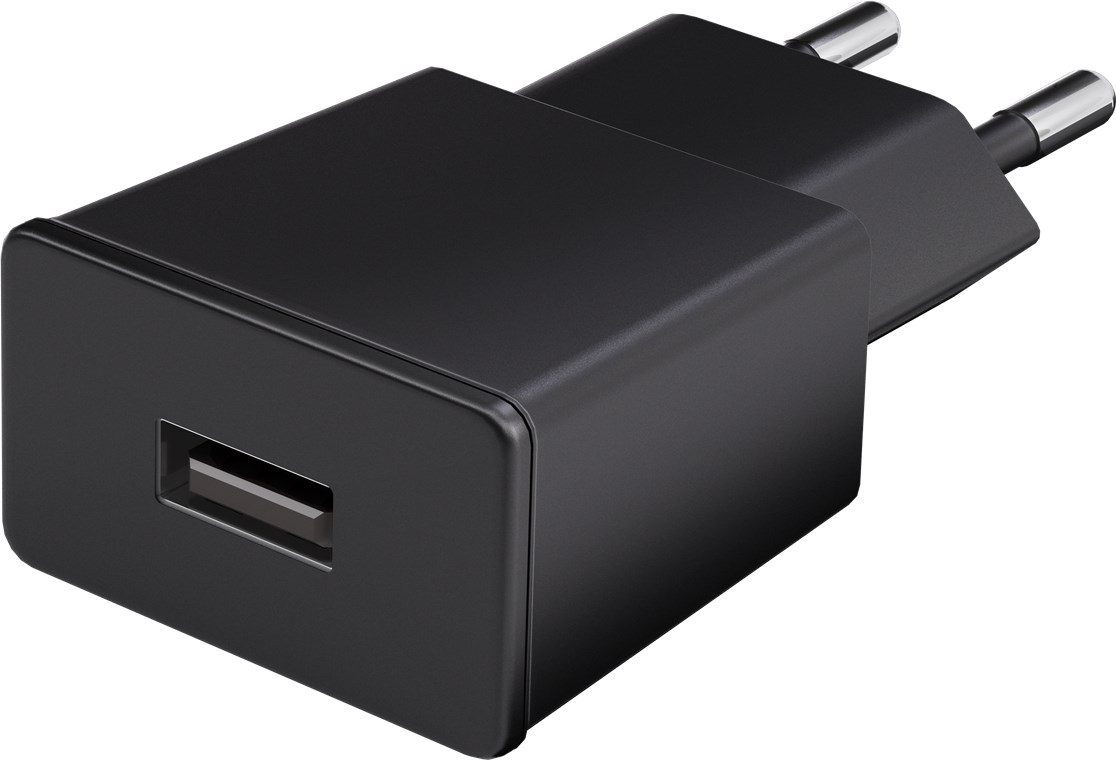

accessory - Power supply
Weight
33 g
Dimensions
75,6x38,7x23,5
Output current
1 A
Input AC frequency
50/60 Hz
Input voltage
100-240 V
Input current
0.3 A
Output voltage
5.0 V
Output power
5.0 W
Language Scope
packaging
en, de, fr, it
Downloads
Item: 58965
EAN: 4040849589652
