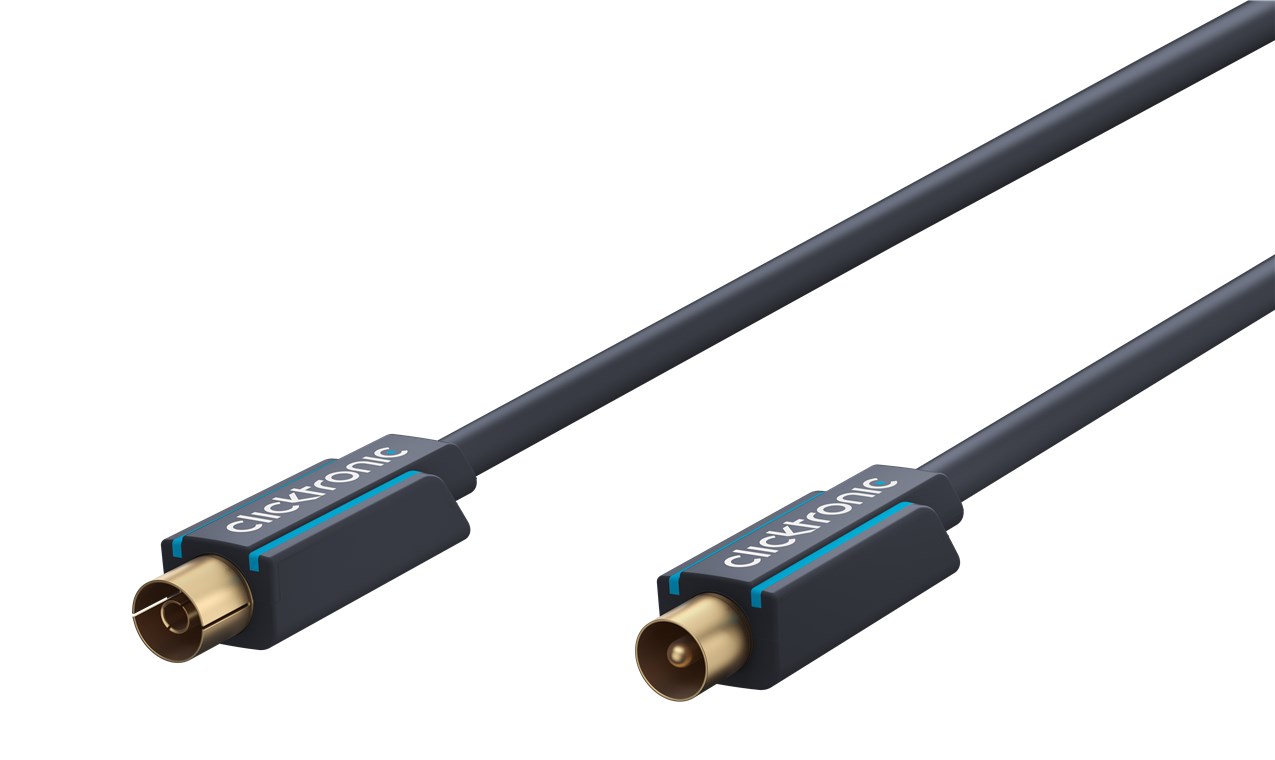

Coaxial Cable
Premium cable | Coaxial plug <> Coaxial coupling | 7.5 m | > 95 dB
Coaxial Cable
Premium cable | Coaxial plug <> Coaxial coupling | 7.5 m | > 95 dB
Article details

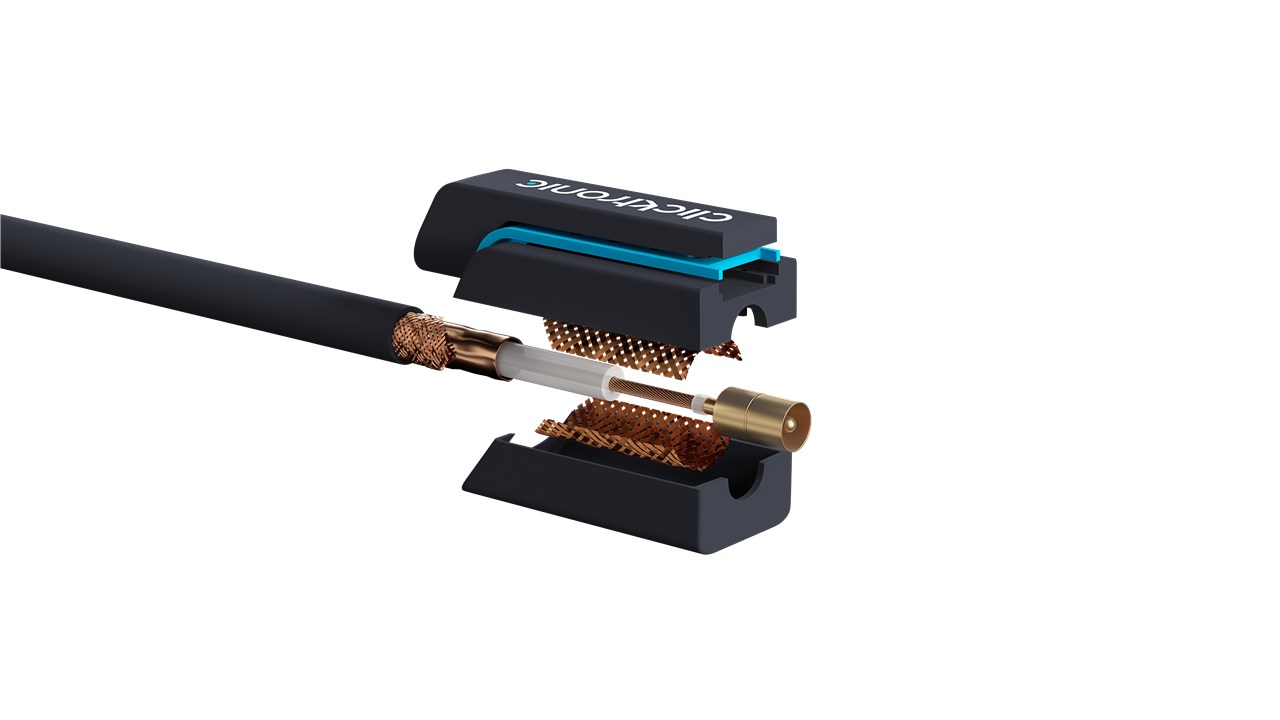

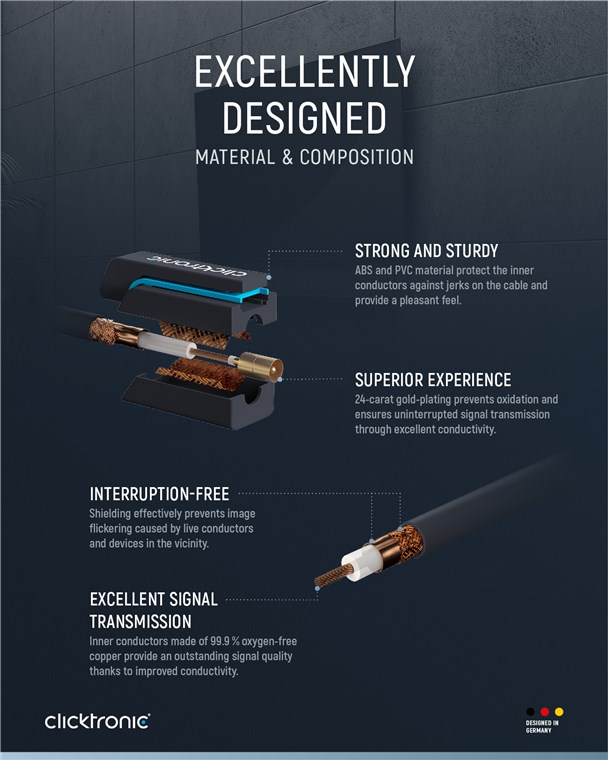

Clicktronic attaches great importance to durability and stability. Our quality promise: 10-year warranty on our antenna cables. The proprietary construction of our connection cables makes them extremely robust. The three-part connector construction made of PVC and ABS components compensates for jerky pulling on the cable, making it ideally protected against cable breaks. High-quality, gold-plated contacts and pure copper conductors guarantee fast data transmission. The durable PVC jacket protects the coaxial cable and ensures a long-lasting, stable connection.

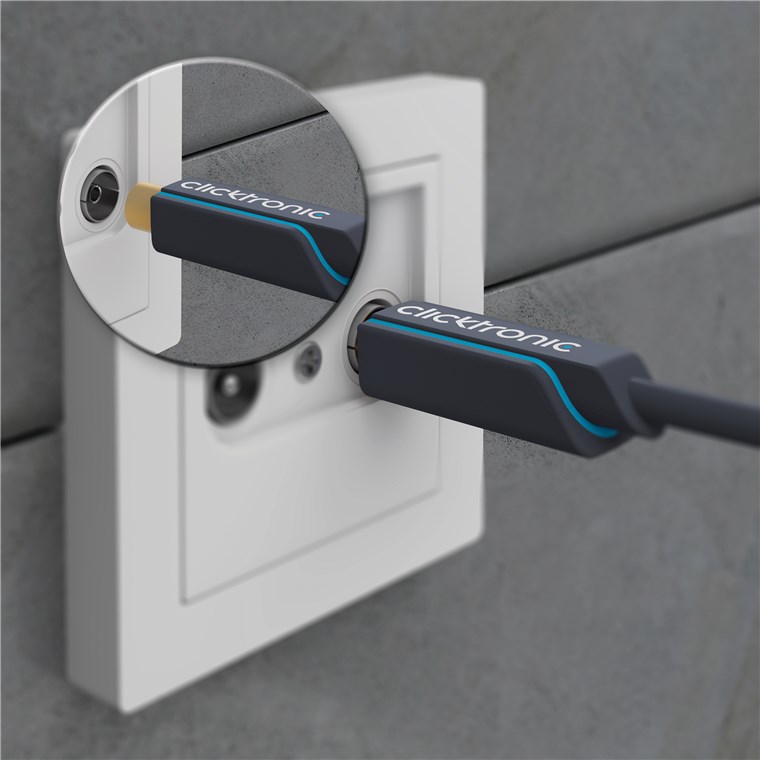

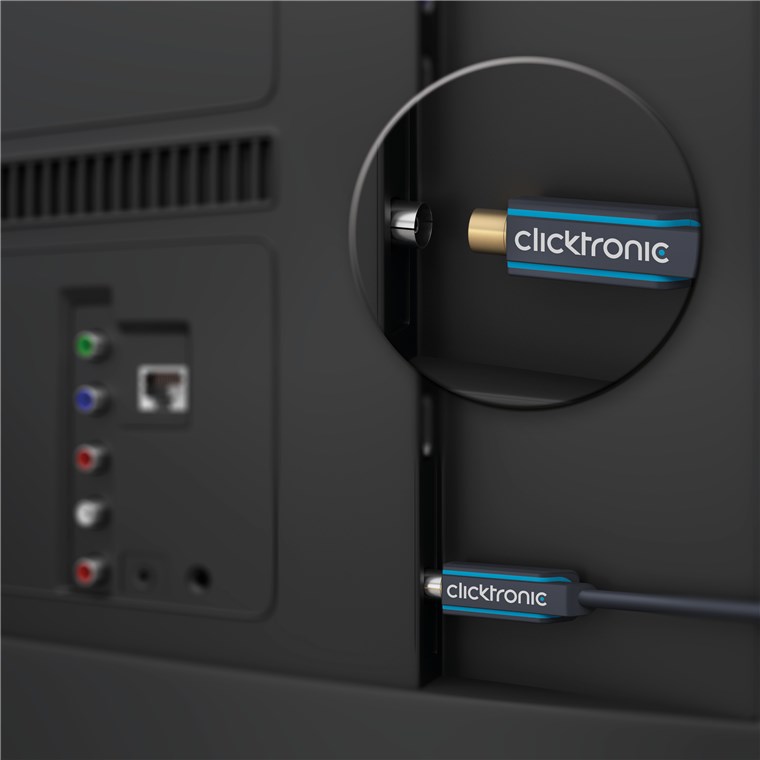

- TV aerial cable transmits HDTV and DVB signals loss-free from the cable network connection or a satellite system to the TV, SAT receiver or radio.
- Interference-free TV reception thanks to 2-fold signal shielding of the antenna cable of > 95 dB
- The TV cable is especially suitable for upmarket requirements with high-definition TV formats.
- 24-carat gold-plated coaxial connectors for minimal transmission resistance and smooth antenna or cable TV without delays
- Flexible, robust PVC cable sheathing enables easy bending and laying of the antenna cable without damage.
- To avoid transmission losses, the sat coaxial cable has a characteristic impedance of 75 ohm.

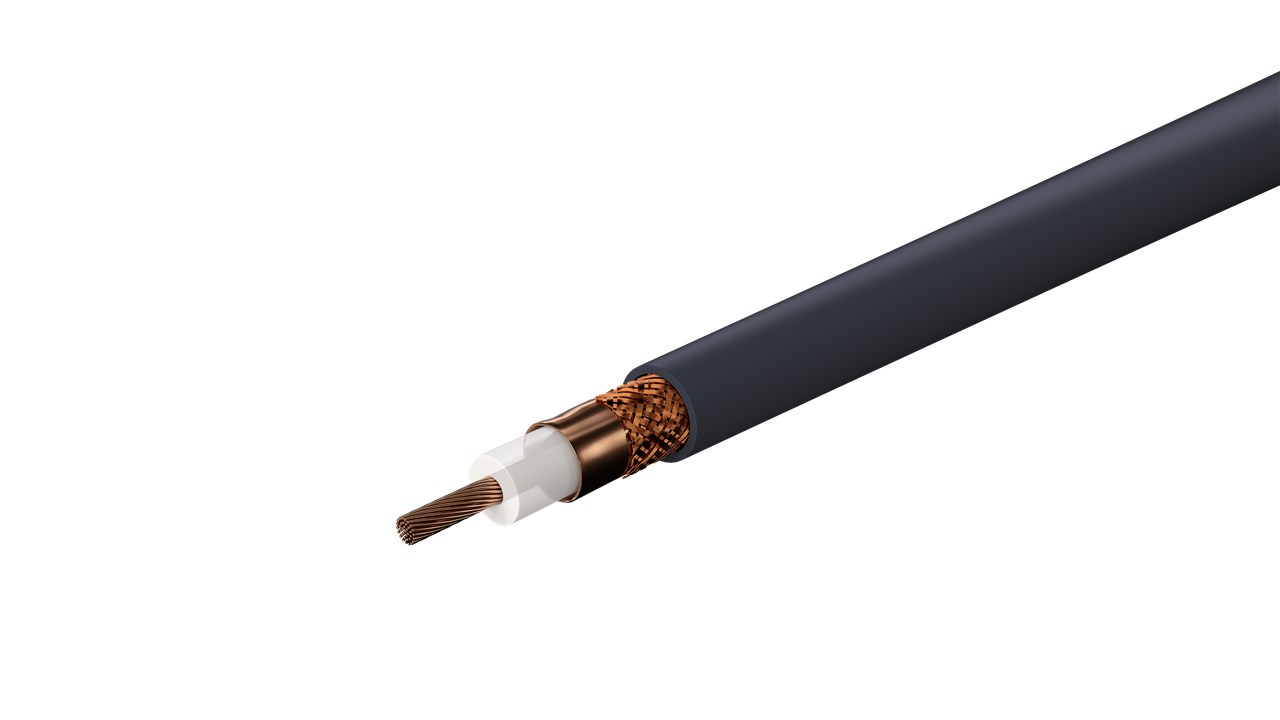

- The SAT connection cable is characterised by durability and brilliant signal quality thanks to inner conductors made of 99.9 % oxygen-free copper.
Technical specifications
Connections
Connection, housing material
ABS, PVC
Connection, contact material
gold (24 kt)
Connection, type
Coaxial male (plug)
Connection 2, type
Coaxial female (socket)
Latch protection
no
Connection type
Koax male, Koax female
Connection, shielding
yes
Cable
Cable type
round cable
Cable length
7.5 m
Number of shieldings
2 x
Material cable sheath
PVC
Type 1, shielding
braid (copper) 96x
Type 2, shielding
foil (aluminium)
AWG
22
Inner conductor material
OFC (99,9% oxygen-free copper)
Cable sheath diameter (approx.)
6 mm
Ferrite core
yes
Diameter ferrite core
14 mm
Shielding efficiency
95 dB
Signal transmission
Signal amplification
no
Impedance
75 Ω
General
Markings
WEEE, CE
Operating temperature from
-10 °C
Operating temperature up to
80 °C
Warranty
10 years
Packaging type
Retail Box
Dimensions / Weight
Consumption Unit
1 pc. in cardboard box
SCIP
SCIP no.
8bbcb21c-cb65-4e73-8865-e36c9432763f
chemical substance
Pb
CAS no.
7439-92-1
Downloads
Packing units:
1 / 10 / 20
Item: 70404
EAN: 4040849704048
