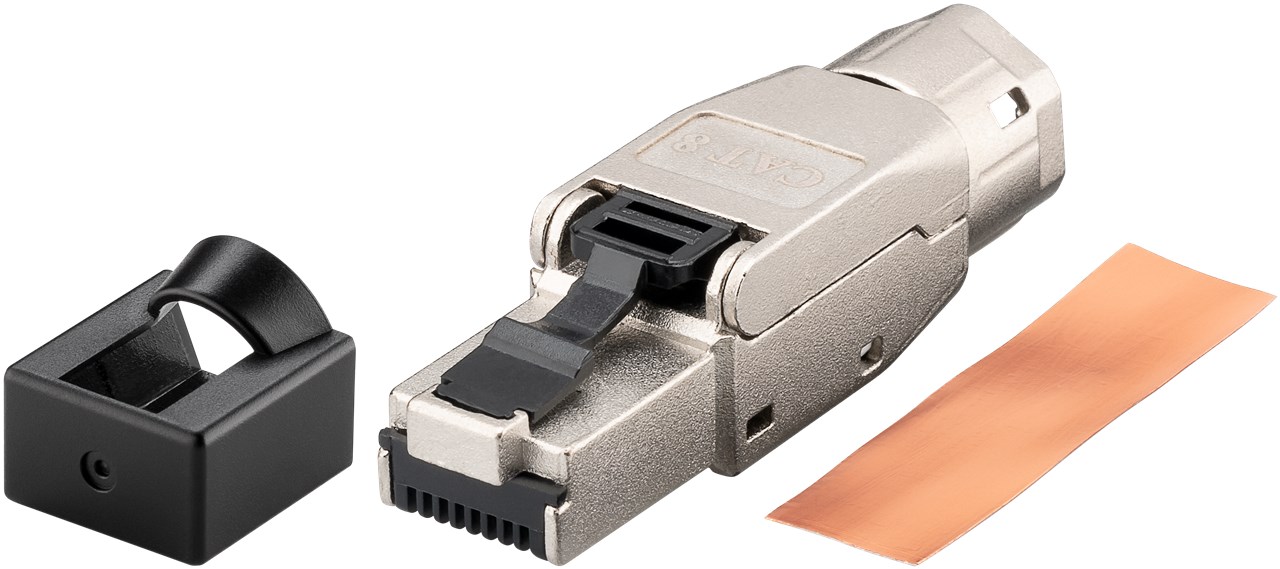

CAT 8.1 STP-Shielded RJ45 Connector for Field Assembly
for 5.0-8.5 mm cable diameter, with screw cap, tool-free IDC mounting
CAT 8.1 STP-Shielded RJ45 Connector for Field Assembly
for 5.0-8.5 mm cable diameter, with screw cap, tool-free IDC mounting
Article details
The CAT 8.1 standard eliminates the crosstalk on the receiver side that an RJ45 plug generates due to its design. Therefore, a CAT 8-enabled RJ45 plug achieves a higher transmission speed than a CAT 5 or CAT 6 plug.
- Network connector for field assembly, suitable for round cables with solid conductors (AWG 22/1 - 26/1) and stranded conductors (AWG 22/7 - 26/7)
- For quick, tool-free assembly on network cables by simply pressing the connector housing together
- The CAT 8.1 connector supports Power over Ethernet (PoE++, 4PPoE, Ultra PoE) according to IEEE802.3bt as well as 25GBase-T and 40GBase-T (downward compatible).
- For a transmission distance of 24 m as a permanent link or 30 m as a channel link (8.1 Standard Class I with an operating frequency of up to 2 GHz)
- The RJ45 connector is suitable for terminating a CAT 8.1 installation cable to create a custom-sized network cable.
- 3 μin gold-plated contacts and the STP screen ensure durability and a perfect signal transmission.
- The RJ45 connector is TIA 568A/B colour-coded
Mechanical:
- Solid cable: 1/22 AWG (0.65mm) - 1/26 AWG (0.4mm)
- Stranded cable: 7/22 AWG - 7/26 AWG
- Diameter of insulated conductor (mm): 1.1 - 1.6mm
- cable OD: 5.0mm - 8.5mm
- PoE per IEEE 802.3af, PoE+ per IEEE 802.3at
ENVIRONMENTAL:
- Storage: -40° to +70°
- Operation: -10° to +60°
Technical specifications
Connections
Connection, type
RJ45 male (8P8C)
Connection 2, type
for IDC connection (toolless)
Contacting
8 Pin
Connection, contact material
gold-plated 3µm
Cable
Specification
CAT 8.1
Shielding class
STP
Signal transmission
max. bandwidth
2000 MHz
max. transmission rate
40 Gbit/s
General
Packaging type
Bulk
Dimensions / Weight
Consumption Unit
1 pc. in polybag
Length
48.2 mm
Width
12.8 mm
Height
13.8 mm
Downloads
Packing units:
1 / 50 / 250
Item: 61130
EAN: 4040849611308
