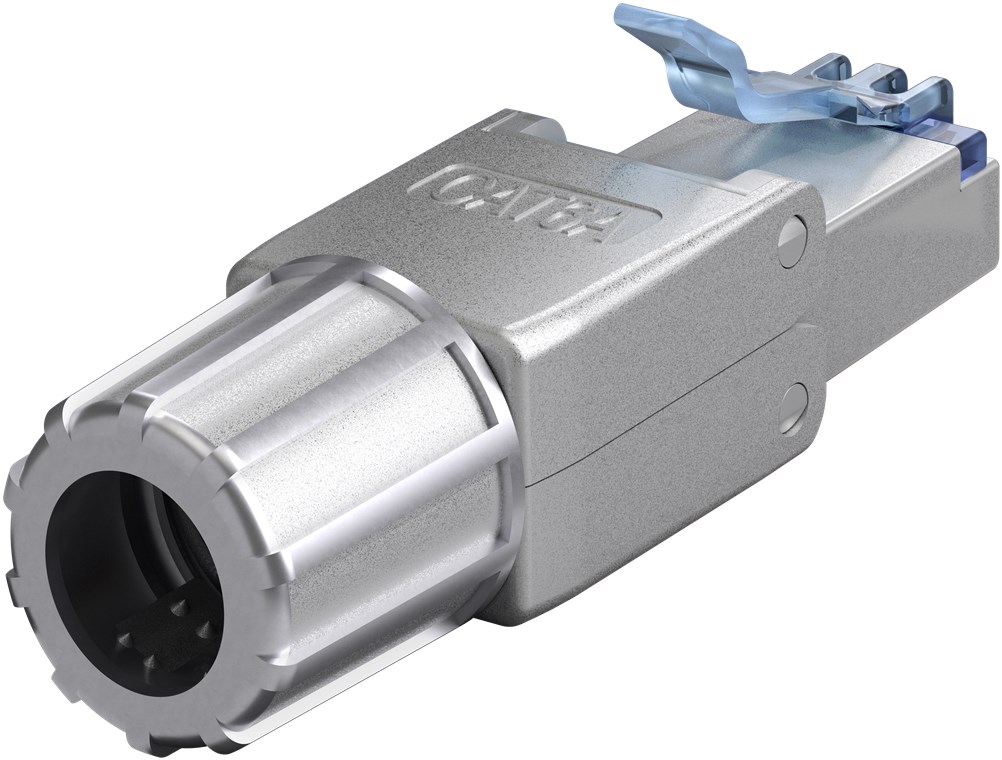

CAT 6A STP-Shielded RJ45 Connector for Field Assembly
for 5.0-8.5 mm cable diameter, with screw cap, tool-free IDC mounting
CAT 6A STP-Shielded RJ45 Connector for Field Assembly
for 5.0-8.5 mm cable diameter, with screw cap, tool-free IDC mounting
Article details

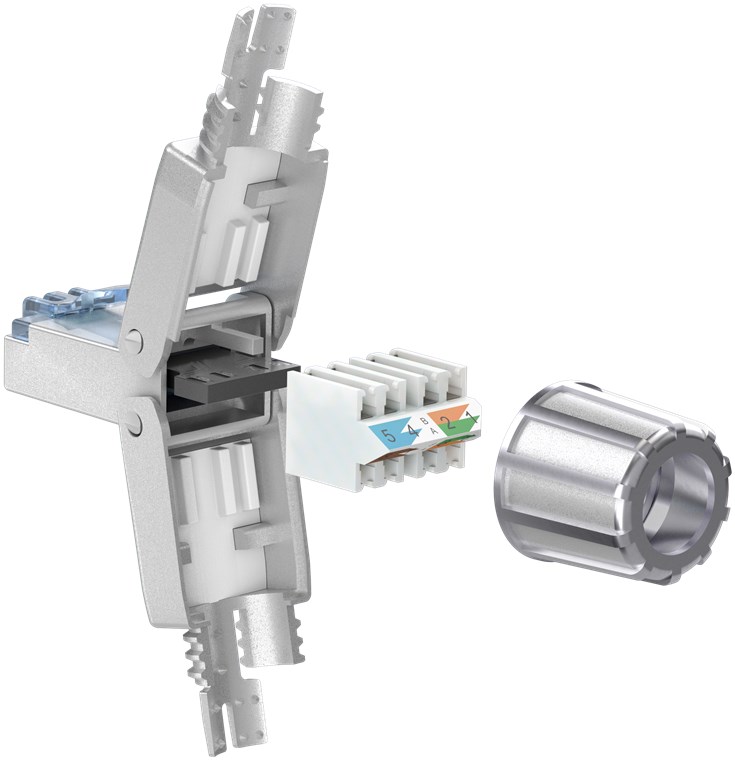

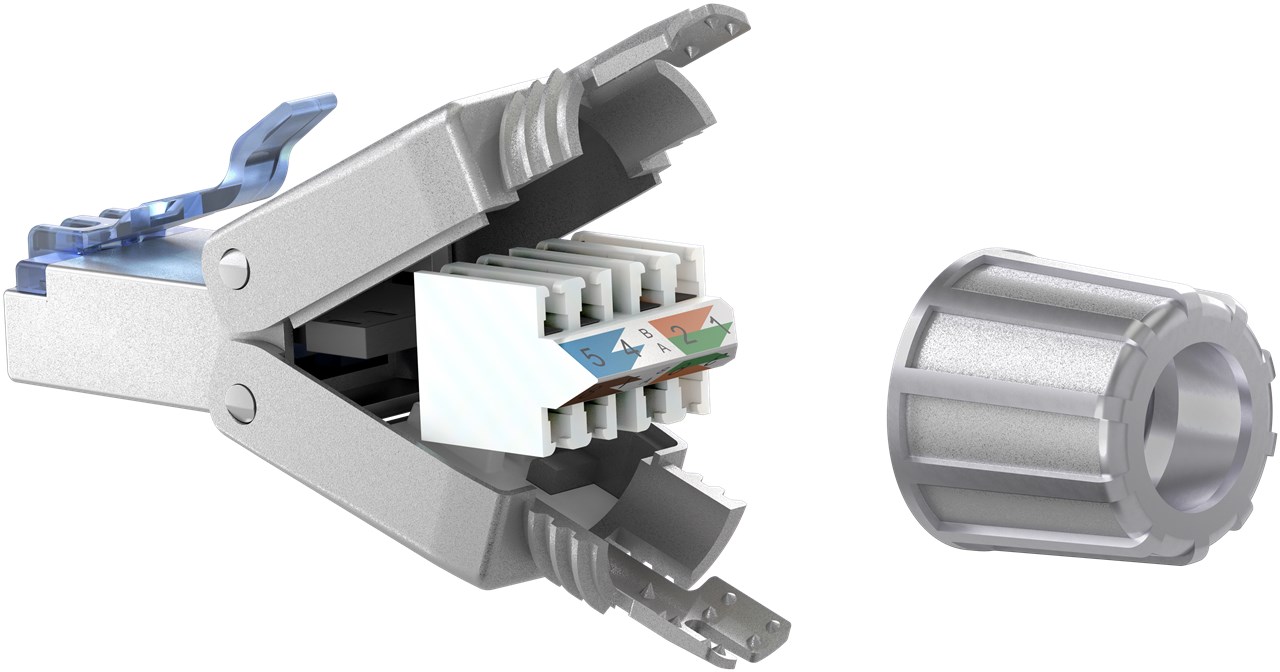

The RJ45 plug is time-saving and easy to install on the CAT cable due to the handy folding mechanism. Thanks to IDC assembly technology, no additional tools are required. Just place the individual wires on the colour-coded contacts and fix them in place by simply pressing the connector housing together.
- Network connector for field assembly, suitable for round cables with solid conductors (AWG 22/1 - 26/1) and stranded conductors (AWG 22/7 - 24/7)
- For quick, tool-free assembly on network cables by simply pressing the connector housing together and screwing on the strain relief
- The CAT 6A connector supports Power over Ethernet (PoE++, 4PPoE, Ultra PoE) according to IEEE802.3bt as well as 10GBase-T (downward compatible)
- The RJ45 connector is suitable for terminating a CAT 6A installation cable to create a custom-sized network cable (cable routing: 180°)
- 3-μm gold-plated contacts and the STP screen ensure durability and a perfect signal transmission

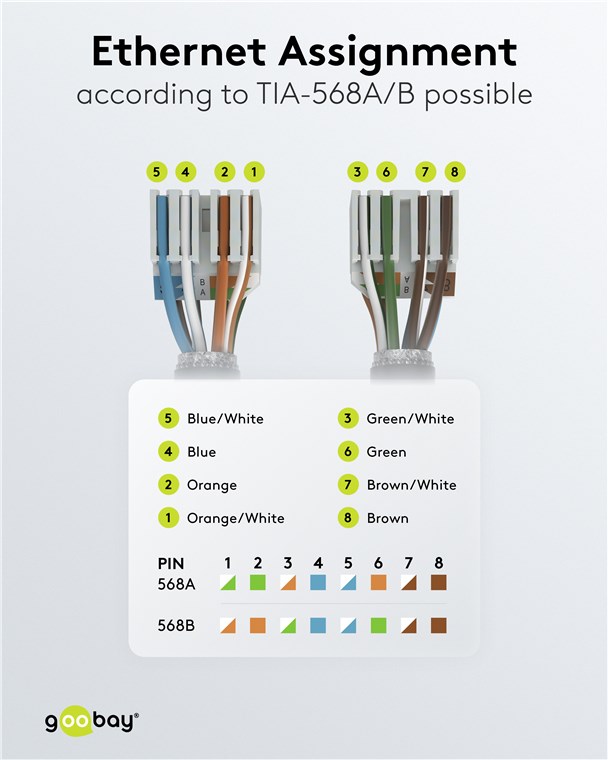

- The RJ45 connector is TIA-568A/B colour-coded
AWG:Â 22 - 26
Solid cable: 1/22 AWG (0.65 mm) - 1/26 AWG (0.4 mm)
Insulated conductor diameter: Ø 1.0 mm - 1.5 mm
Stranded cable: 7/22 AWG - 7/26 AWG
Insulated conductor diameter: Ø 1.0 mm - 1.5 mm
Outer cable diameter: Ø 5.0 mm - 8.5 mm
Technical specifications
Connections
Connection, contact material
gold-plated 3µm
Connection, type
RJ45 male (8P8C)
Contacting
8 Pin
Connection 2, type
for IDC connection (toolless)
Cable
Specification
CAT 6A
Shielding class
STP
AWG
22 - 26
Signal transmission
max. bandwidth
500 MHz
General
Packaging type
Bulk
Dimensions / Weight
Consumption Unit
1 pc. in polybag
Length
49.7 mm
Width
14.4 mm
Language Scope
Operation manual
de, en
Downloads
Packing units:
1 / 50 / 500
Item: 65939
EAN: 4040849659393
