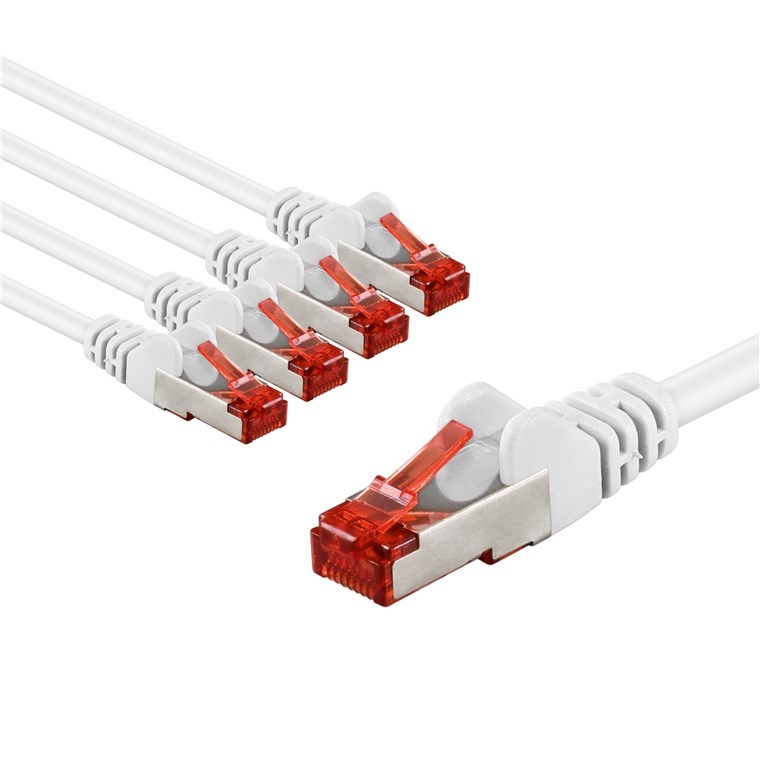

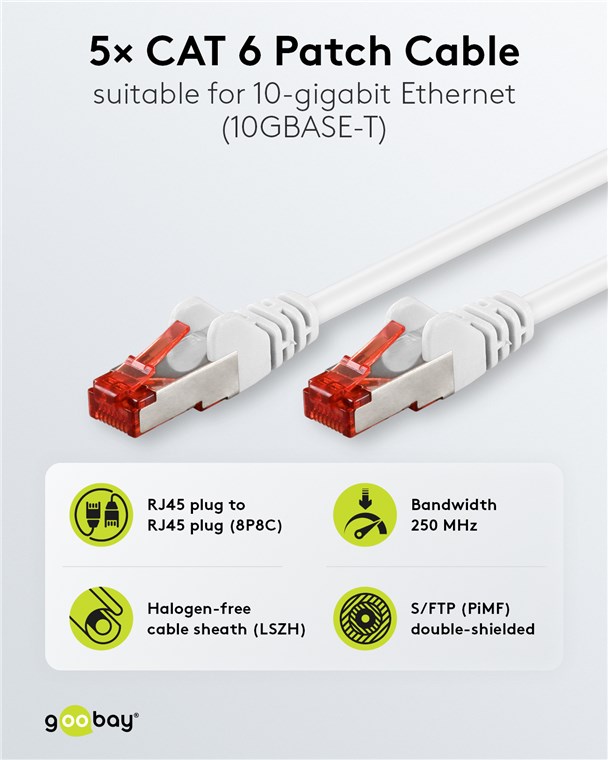

CAT 6 Patch Cable S/FTP (PiMF), 1 m, white, Set of 5
copper conductor (CU), halogen-free cable sheath (LSZH)
CAT 6 Patch Cable S/FTP (PiMF), 1 m, white, Set of 5
copper conductor (CU), halogen-free cable sheath (LSZH)
Article details
The handy set of 5 Goobay CAT cables transmits signals in maximum quality at extreme speed and ensures a stable connection. Our connection cables and plugs are characterised by high-quality inner conductors, robust cable sheathing and precision-fit plugs. Goobay always has the right product for your network application - for both home and company networks. Simply. All. You Need!
- Prewired, double-shielded LAN cable with RJ45 plugs for connecting network components
- CAT 6 internet cable suitable for 10 Gigabit Ethernet 10BASE-T, 100BASE-TX, 1000BASE-T, 10/100/1000/10000 Mbit/s
- S/FTP overall shield: aluminium foil shield for individual wire pairs (PiMF) and aluminium braid shield for the cable sheath
- High-quality copper conductor (CU) and gold-plated contacts guarantee an excellent, powerful network connection.
- Bend protection and a sturdy jacket effectively protect the network cable from breakage.
- Latch protection on the RJ45 connector prevents the latch from snagging or breaking off, helping to provide a reliable internet connection.
- Ethernet cable is CAT 6 tested and suitable for Power over Ethernet (PoE, PoE+).
Technical specifications
Connections
Connection, type
RJ45 male (8P8C)
Connection 2, type
RJ45 male (8P8C)
Kink protection
both sides
Latch protection
both sides
Connection, shielding
yes
Contacting
EIA/TIA-568 B
Cable
Specification
CAT 6
Cable type
round cable
Shielding class
S/FTP (PiMF)
Number of shieldings
2 x
Type 1, shielding
foil (alu) PiMF
Type 2, shielding
braid (alu) overall shield
AWG
28/7 (stranded)
Inner conductor material
CU (copper)
Material cable sheath
LSZH
Cable sheath diameter (approx.)
6 mm
Cable length
1 m
LSZH compliant
yes
Signal transmission
max. bandwidth
250 MHz
General
Color
white
Markings
WEEE, CE
Operating temperature from
-20 °C
Packaging type
Bulk
Packing units:
1
Item: 66642
EAN: 4040849666421
