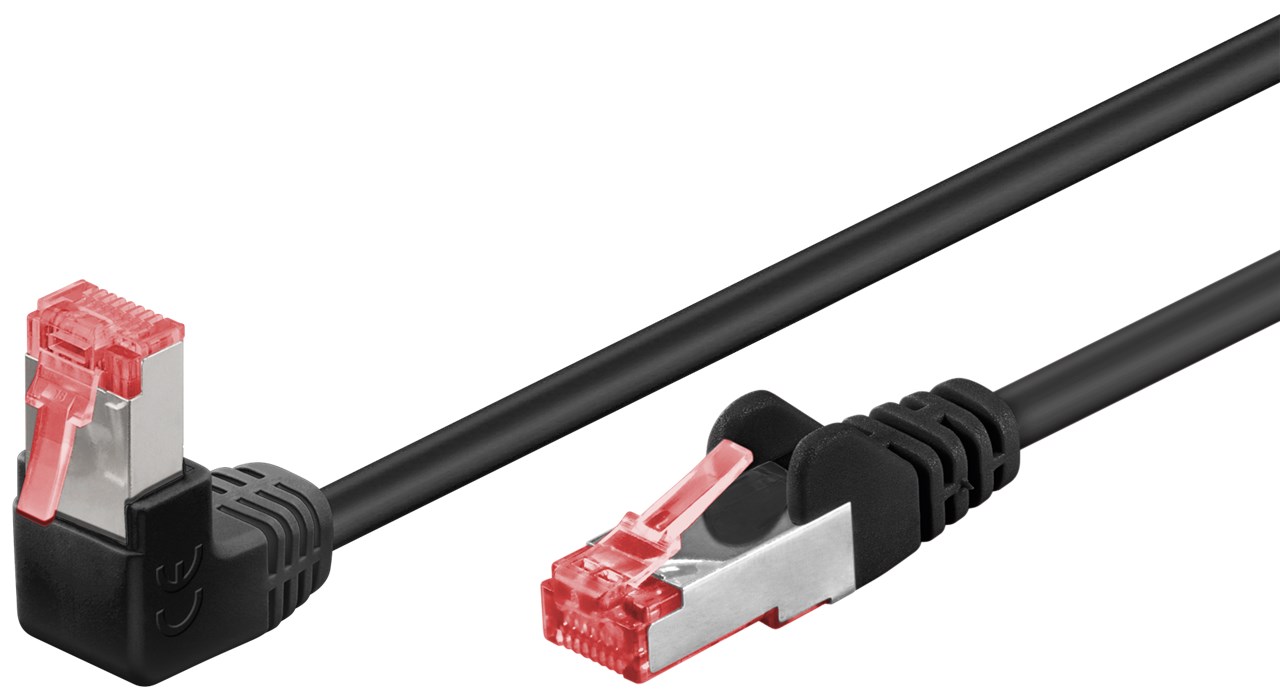

CAT 6 Patch Cable 1x 90° Angled, S/FTP (PiMF), black
copper conductor (CU), halogen-free cable sheath (LSZH), latch on top
CAT 6 Patch Cable 1x 90° Angled, S/FTP (PiMF), black
copper conductor (CU), halogen-free cable sheath (LSZH), latch on top
Article details
Our CAT cables transmit signals in top quality at high speed, always guaranteeing a stable connection. High-quality inner conductors, robust cable sheathing and precisely fitting plugs distinguish our portfolio of connection cables and plugs. Goobay always provides the perfect products for your network needs - whether you aim to set up a home or company network. Simply. All. You need!
- Prewired, double-shielded LAN cable with 2x RJ45 plugs for connecting network components
- The 90° right angle RJ45 connector is an ideal solution for confined spaces.
- Latch protection on the straight RJ45 plug prevents the latch from snagging or breaking off, helping to provide a reliable internet connection.
- S/FTP overall shield: aluminium foil shield for individual wire pairs (PiMF) and aluminium braid shield for the cable sheath
- High-quality copper conductor (CU) and 1μ gold-plated contacts guarantee an excellent, powerful network connection.
- Bend protection and a sturdy jacket effectively protect the Ethernet cable from breakage.
- CAT 6 internet cable is suitable for Power over Ethernet (PoE, PoE+) and 10 Gigabit Ethernet 10BASE-T, 100BASE-TX, 1000BASE-T, 10/100/1000/10000 Mbit/s.
Technical specifications
Connections
Connection, type
RJ45 male 90° (8P8C)
Connection 2, type
RJ45 male (8P8C)
Kink protection
both sides
Latch protection
unilaterally
Connection, shielding
yes
Connection, contact material
gold-plated 1µm
Contacting
EIA/TIA-568 B
Cable
Specification
CAT 6
Cable type
round cable
Shielding class
S/FTP (PiMF)
Number of shieldings
2 x
Type 1, shielding
foil (alu) PiMF
Type 2, shielding
braid (alu) overall shield
AWG
28/7 (stranded)
Inner conductor material
CU (copper)
Material cable sheath
LSZH
Cable sheath diameter (approx.)
6 mm
bending radius >
60 mm
Cable length
0.25 m
LSZH compliant
yes
Signal transmission
max. bandwidth
250 MHz
General
Color
black
Markings
WEEE, CE
Special feature
Length indication on connector
Operating temperature from
-20 °C
Packaging type
Bulk
Dimensions / Weight
Consumption Unit
1 pc. in polybag
Downloads
Packing units:
1 / 350
Item: 51541
EAN: 4040849515415
