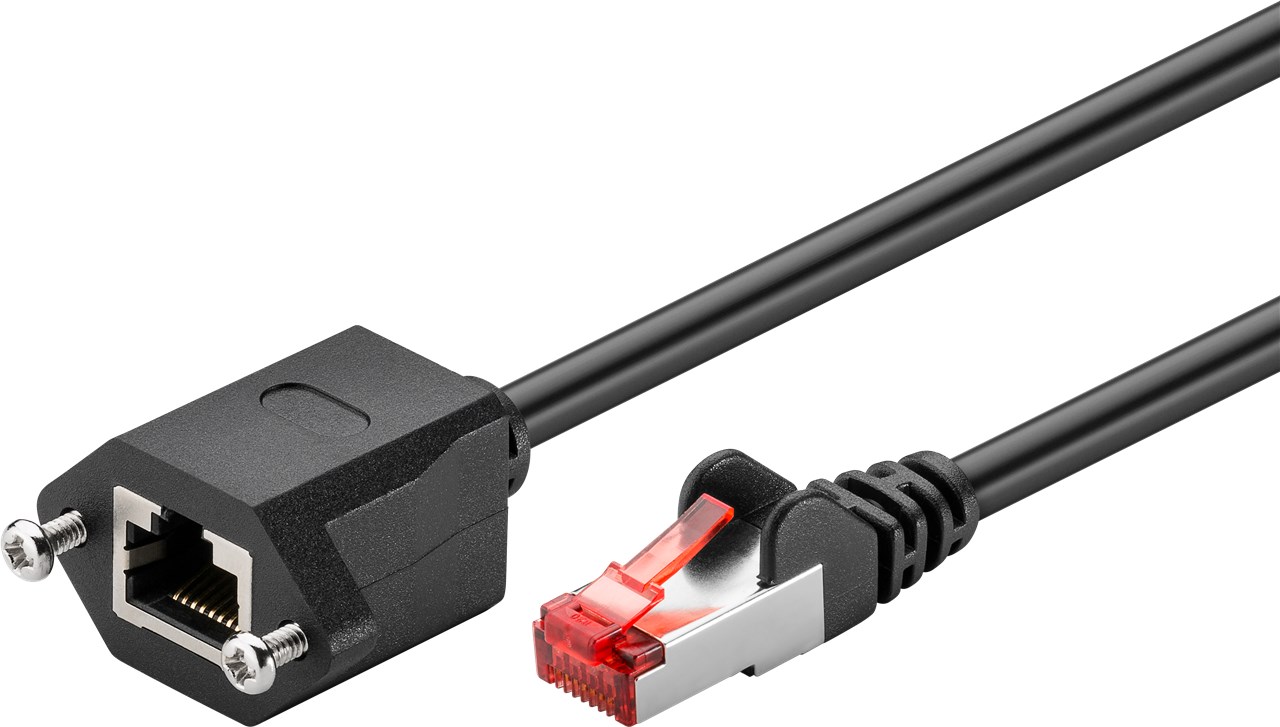

CAT 6 Extension Cable, F/UTP, black
copper conductor (CU), with mounting flange
Product and packaging similar. Subject to modifications and errors.
![Goobay Goobay](/media/perfion/supplier/goobay_rgb.png.png)
CAT 6 Extension Cable, F/UTP, black
copper conductor (CU), with mounting flange
Article details
Our CAT cables transmit signals in top quality at high speed, always guaranteeing a stable connection. High-quality inner conductors, robust cable sheathing and precisely fitting plugs distinguish our portfolio of connection cables and plugs. Goobay always provides the perfect products for your network needs - whether you aim to set up a home or company network. Simply. All. You need!
- Prewired, shielded LAN extension cable with RJ45 plugs for connecting network components
- Mounting flange with 25 mm hole spacing for fastening e.g. to a slot bracket, cable duct or enclosure with corresponding cut-out
- Foil screen (F/UTP) prevents interference from external sources (crosstalk) and provides ideal signal distribution with minimal losses.
- High-quality copper-clad aluminium wire (CU) and gold-plated contacts guarantee an excellent, powerful network connection.
- Latch protection on the RJ45 connector prevents the latch from snagging or breaking off, helping to provide a reliable internet connection.
- Bend protection and a sturdy PVC jacket effectively protect the extension cable from breakage.
- Network connector: pair sequence according to EIA/TIA 568B, pinout: 1:1
Technical specifications
Connections
Connection, type
RJ45 male (8P8C)
Connection 2, type
RJ45 female (8P8C)
Kink protection
both sides
Latch protection
unilaterally
Connection, shielding
yes
Contacting
EIA/TIA-568 B
Cable
Specification
CAT 6
Cable type
round cable
Shielding class
F/UTP
Number of shieldings
1 x
Type 1, shielding
foil (aluminium)
AWG
26/7 (stranded)
Inner conductor material
CU (copper)
Material cable sheath
PVC
Cable sheath diameter (approx.)
6 mm
Cable length
0.5 m
Signal transmission
max. bandwidth
250 MHz
General
Color
black
Markings
WEEE, CE
Special feature
Length indication on connector
Operating temperature from
-20 °C
Operating temperature up to
60 °C
Packaging type
Bulk
Dimensions / Weight
Consumption Unit
1 pc. in polybag
Downloads
Packing units:
1 / 10 / 150 / 300
Item: 77554
EAN: 4040849775543
