Goobay
CAT 5e Network Cable, U/UTP, grey
Copper-clad aluminium wire (CCA), AWG 24/1 (solid), PVC cable sheath
/4
Product and packaging similar. Subject to modifications and errors.
Goobay

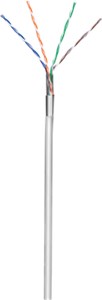

CAT 5e Network Cable, U/UTP, grey
Copper-clad aluminium wire (CCA), AWG 24/1 (solid), PVC cable sheath
Article details
Our patch cables transmit signals in top quality at high speed, always guaranteeing a stable connection. High-quality inner conductors, robust cable sheathing and precisely fitting plugs distinguish our portfolio of connection cables. Goobay always provides the perfect products for your network needs - whether you aim to set up a home or company network. Simply. All. You need!
  • Unshielded twisted-pair LAN cable for the small office and working from home (SOHO and WFH applications)
  • Unterminated patch cable for assembly and installation with IDC connection technology
  • Flexible data and installation cable for indoor assembly with a maximum transmission length of 40 m
  • High-quality copper-clad aluminium wire (CCA) guarantees an excellent and powerful network connection.
  • Sturdy PVC cable sheathing protects the Ethernet cable from breakage.
  • Complies with the Construction Products Regulation (CPR) and Eca fire protection class
Technical specifications
Cable
Specification
CAT 5e
Shielding class
U/UTP
AWG
24/1 (solid)
Diameter of insulated conductor
0.9 mm (+/-0.05)
Fire class (CPR)
Eca
Meter scaling
yes
Cable length
100 m
Cable type
round cable
Inner conductor material
CCA (copper-clad aluminium)
Material cable sheath
PVC
Cable sheath diameter (approx.)
5 mm
Signal transmission
max. bandwidth
100 MHz
usable up to cable length
40 m
Impedance
100 Ω
General
Color
grey
Markings
ECA_CPR, CE, SOHO
Packaging type
Cable spool-drum
Dimensions / Weight
Consumption Unit
1 pc. cable reel
Downloads
Product data sheet pdf Declaration of conformity pdf
Packing units:
1 / 4
Packaging type
Cable length
Item: 68710
EAN: 4040849687105
Accessories
Similar products
View all

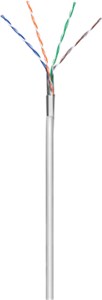

CAT 5e Network Cable, SF/UTP, grey
Goobay CAT 5e Network Cable, SF/UTP, grey Copper conductor (CU), AWG 24/1 (solid), PV...
Article: 15015,
100 m, Cable spool-drum
Single product
CAT 5e Network Cable, F/UTP, grey
Goobay CAT 5e Network Cable, F/UTP, grey Copper conductor (CU), AWG 26/7 (stranded),...
Article: 15012,
100 m, Cable spool-drum
Single product
CAT 5e Network Cable, F/UTP, 100 m, grey
Goobay CAT 5e Network Cable, F/UTP, 100 m, grey Copper-clad aluminium wire (CCA), AWG 26/7 ...
Article: 68706,
Cable spool-drum, grey
5 further products

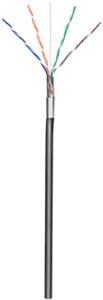

CAT 5e Outdoor Network Cable, F/UTP, black
