Active High Speed HDMI™ Cable with Ethernet
4K/60Hz
Active High Speed HDMI™ Cable with Ethernet
4K/60Hz
Article details

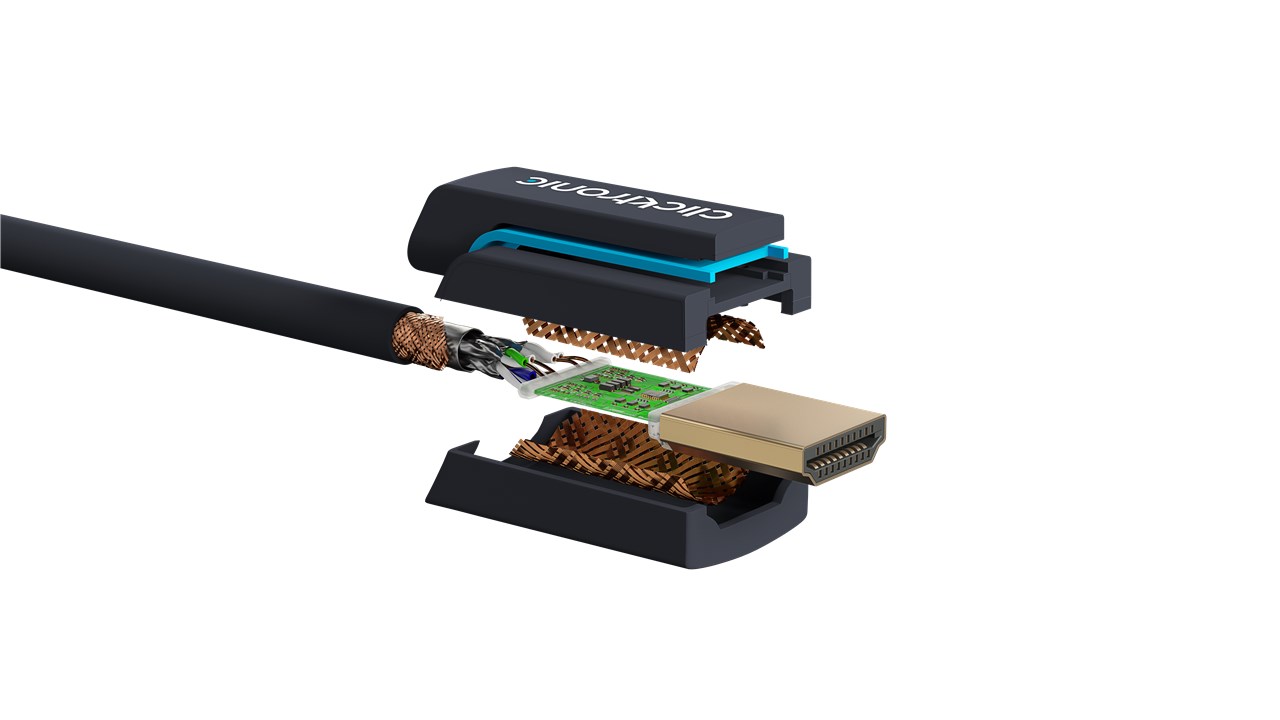

Clicktronic attaches great importance to durability and stability. Our quality promise: 10-year warranty on our HDMI™ cables. The proprietary construction of our connection cables makes them extremely robust. The three-part connector construction made of PVC and ABS components compensates for jerky pulling on the cable, making it ideally protected against cable breakage. High-quality, gold-plated contacts and pure copper conductors transmit audio and video signals in maximum quality for a perfect home cinema and gaming experience. The Clicktronic HDMI™ high-speed cable enables a razor-sharp picture and has an extremely fast transmission speed.
- Active HDMI™ high-speed cable connects TVs and monitors e.g. to laptops, projectors, beamers or game consoles such as PlayStation or Xbox for flawless movie and gaming experiences.

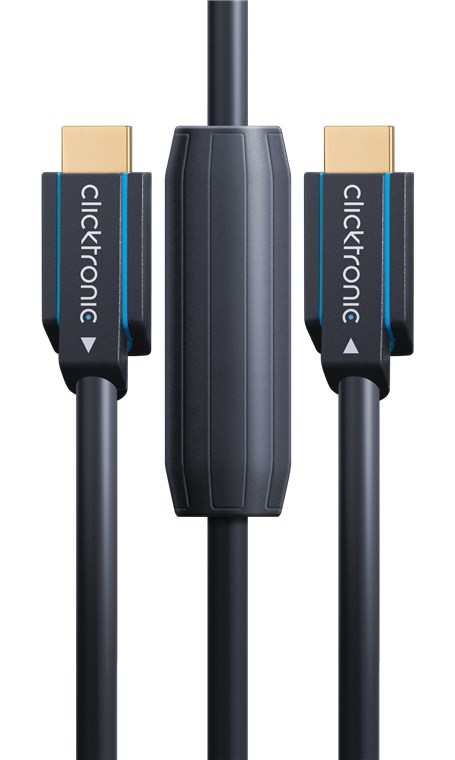

- Integrated signal amplifier prevents signal loss, making the Clicktronic 4K cable especially suitable for bridging longer distances.
- UHD signal transmission with up to 4K @ 60 Hz (2160p) and Full HD @ 60 Hz (1080p)
- HDMI™ connection cable with max. transfer rate of up to 4.5 Gbit/s
- 24-carat gold-plated HDMI™ connectors and advanced technology guarantee flawless signal quality without image transmission delays for an optimal gaming experience.

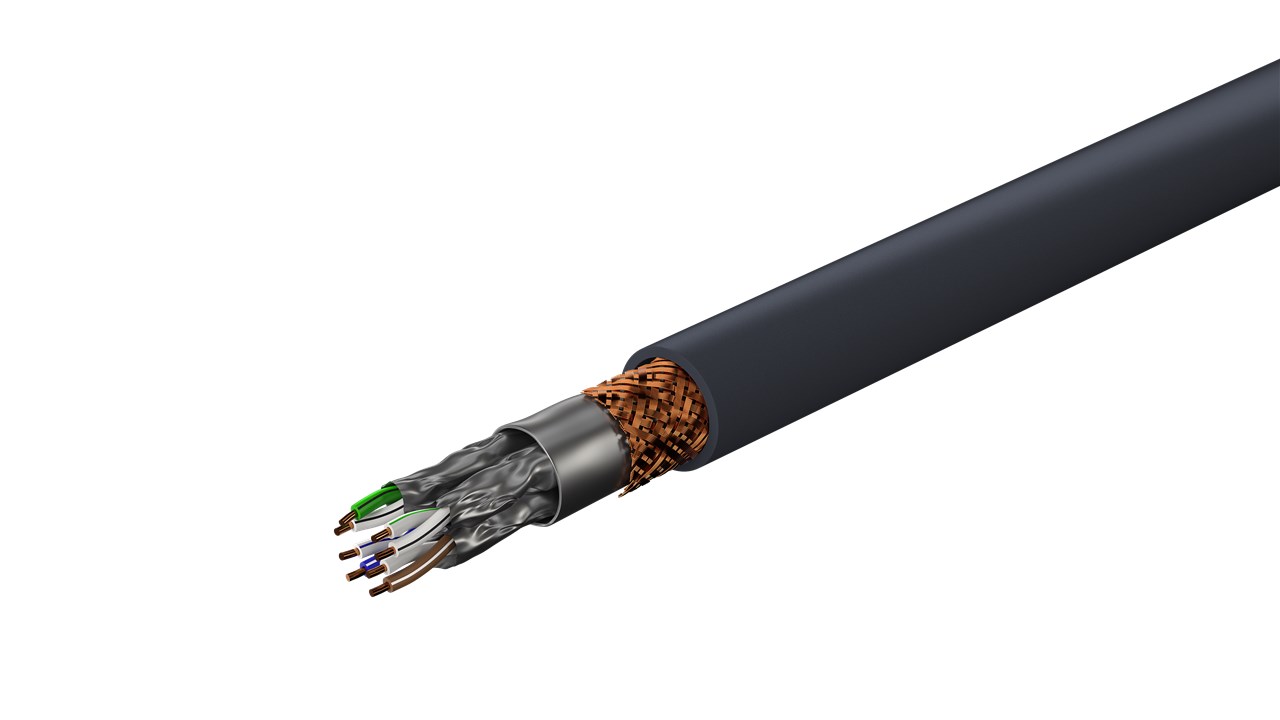

- Pure copper conductors and 2-fold shielding for clear sound and razor-sharp video and picture quality
- Signal direction: Due to the integrated signal amplifier, the HDMI™ cable must be connected so that the printed triangles point from the transmitter (e.g. PC) to the receiver (e.g. TV).
Technical specifications
Labelling
Disclaimer
The terms HDMI, HDMI High-Definition Multimedia Interface, HDMI Trade Dress and
the HDMI Logos are trademarks or registered trademarks of HDMI Licensing
Administrator, Inc.
Connections
Connection, contact material
gold (24 kt)
Connection, housing material
ABS, PVC
Connection, shielding
yes
Connection type
HDMI™ connector male (type A)
Connection, type
HDMI™ connector male (type A)
Connection 2, type
HDMI™ connector male (type A)
Kink protection
both sides
Cable
Cable type
round cable
Cable length
20 m
Cable sheath diameter (approx.)
8.2 mm
Inner conductor material
CU (copper)
Cable structure
19+1
AWG
26
Number of shieldings
3 x
Type 1, shielding
braid (copper) 112x
Type 2, shielding
foil (aluminium)
Type 3, shielding
foil (aluminium)
Material cable sheath
PVC
Signal transmission
Signal amplification
yes
Max. resolution
4K/60Hz (3840 x 2160) UHD
other supported standards
HDR (High Dynamic Range), 3D
supported audio standards
Audio Return Channel (ARC)
General
Markings
WEEE, CE, HDMI™ High Speed with Ethernet, ULTRAHD 4K@50/60 Hz
Operating temperature from
-10 °C
Operating temperature up to
80 °C
Warranty
10 years
Packaging type
Retail Box
Dimensions / Weight
Consumption Unit
1 pc. in cardboard box
Language Scope
Operation manual
de, en, fr, it, es, nl, da, se, cz, pl
Downloads
Packing units:
1 / 4
Item: 39085
EAN: 4040849390852
Accessories
