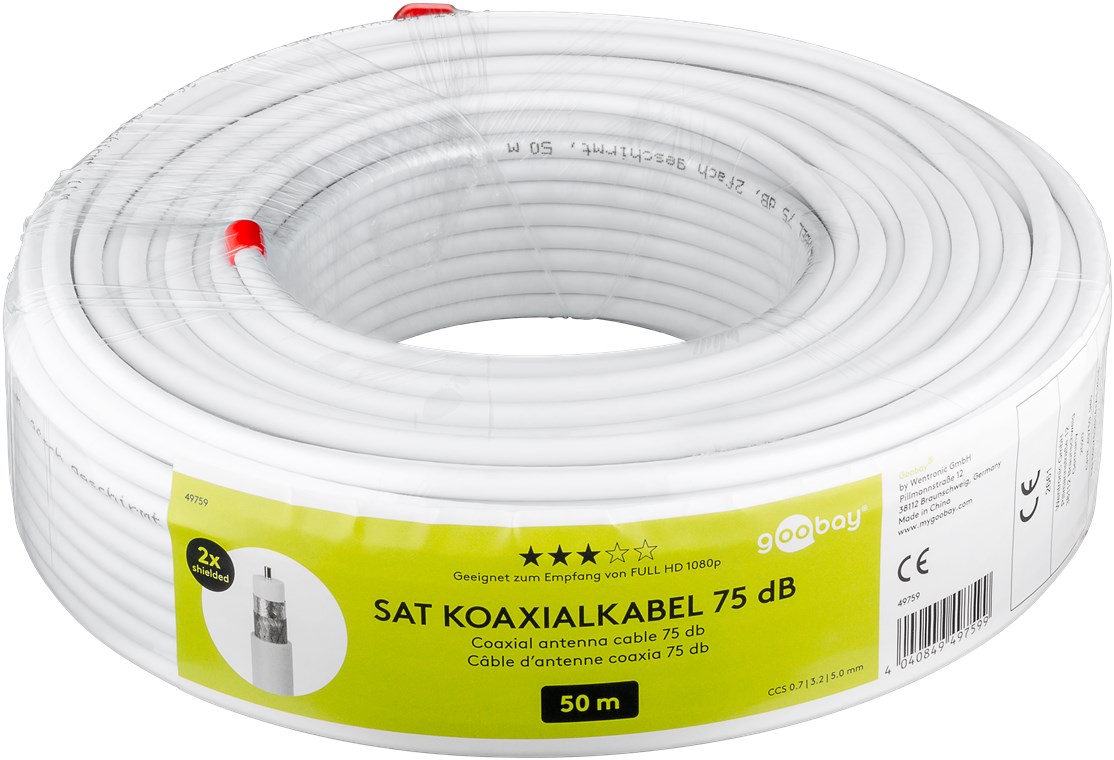

75 dB SAT Coaxial Cable, Double Shielded
for digital SAT and DVB-C systems with inner conductors made of steel and copper
Product and packaging similar. Subject to modifications and errors.
75 dB SAT Coaxial Cable, Double Shielded
for digital SAT and DVB-C systems with inner conductors made of steel and copper
Article details
- Satellite cable for connecting or extending e. g. cable TV or radio systems
- High-quality and flexible PVC sheathing guarantees protection against heat, cold and weather.
- TV aerial cable is digitally compatible for the installation of HDTV via DVB-S/S2, DVB-T/T2, DVB-C/C2.
- Antenna cable is double shielded for effective protection over long distances.
- Suitable for reception of Full HD 1080p
- Metre scaling is indicated on the coax cable
- Meets the CPR (Construction Products Regulation), therefore corresponding to the fire protection class.
Technical specifications
Cable
Cable length
50 m
Cable sheath diameter (approx.)
5 mm
Dielectric diameter
3.3
inner conductor, core diameter
0.7 mm
Number of shieldings
2 x
Type 1, shielding
double foil (aluminium)
Type 2, shielding
braid (aluminium) 32x
Shielding efficiency
80 dB
Signal transmission
Impedance
75 Ω
General
Outer sheath material
PVC
Color
white
Operating temperature from
-20 °C
Operating temperature up to
70 °C
Packaging type
Cable ring-coil
Dimensions / Weight
Consumption Unit
1 pc. coil
Downloads
Packing units:
1 / 12
Item: 49759
EAN: 4040849497599
