3.5 mm AUX Adapter Cable, Stereo
Premium cable | 1x 3.5 mm jack plug <> 2x 3.5 mm jack socket | 0.1 m | OFC inner conductor
3.5 mm AUX Adapter Cable, Stereo
Premium cable | 1x 3.5 mm jack plug <> 2x 3.5 mm jack socket | 0.1 m | OFC inner conductor
Article details

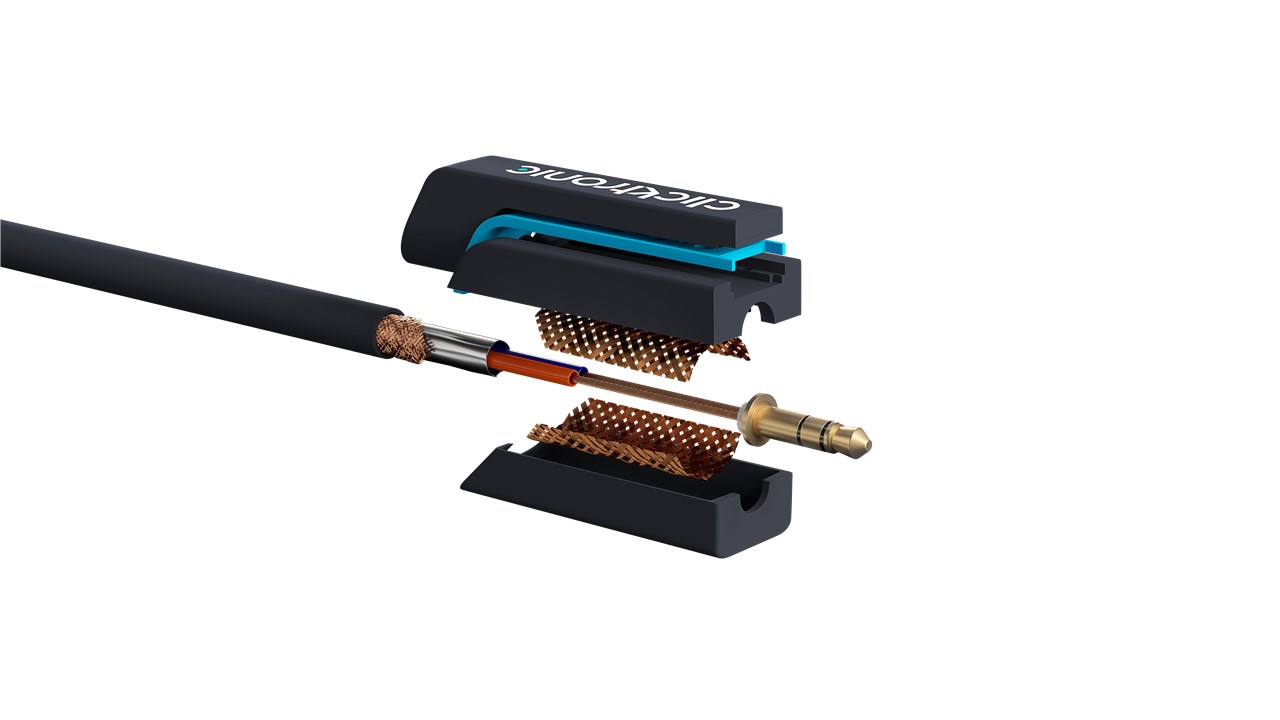

Clicktronic attaches great importance to durability and stability. Our quality promise: 10-year warranty on our AUX adapter cables. The three-part connector design made of PVC and ABS components compensates for jerky pulling on the cable, making it ideally protected against cable breaks. High-quality, gold-plated contacts and pure copper conductors transmit audio signals in maximum sound quality for a perfect sound experience. The brand's own robust construction of our audio cables thus ensures long-lasting home entertainment.
- Y-jack adapter splits the audio signal of a unit to 2 separate headphone outputs.
- With the AUX adapter, enjoy all your favourite songs in the best sound quality for two from one audio source.

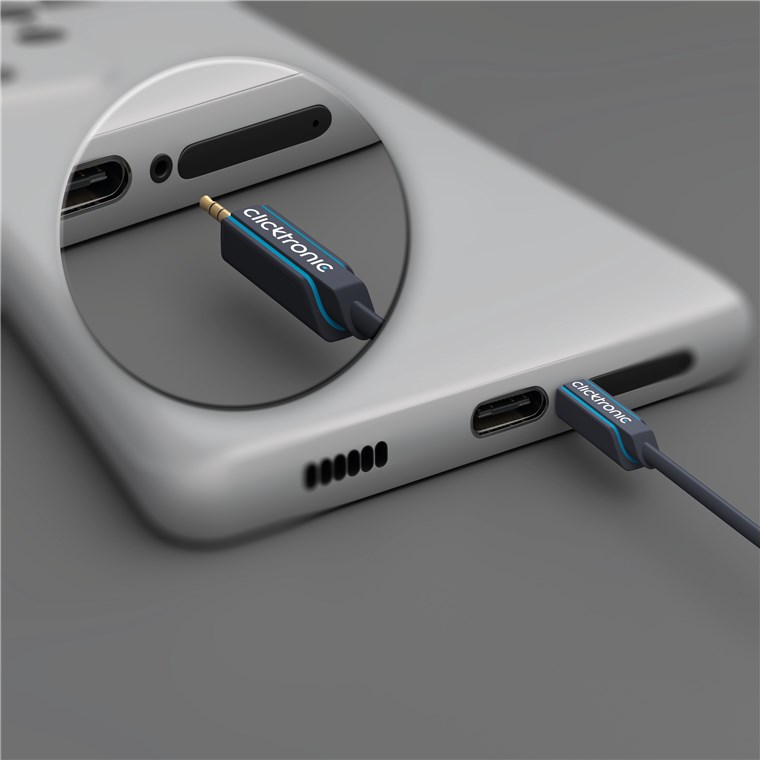

- For connecting e.g. 2 headphones or speakers (3.5 mm AUX plug) to a multimedia device such as a smartphone or tablet (3.5 mm AUX socket)
- 24-carat gold-plated, stainless steel plugs for minimal transmission resistance and crystal-clear sound
- Coaxial cable made of 99.9 % oxygen-free copper conductor ensures optimal transmission speed.
- Flexible bend protection and robust PVC cable sheathing allow the connection cable to be bent without damage.

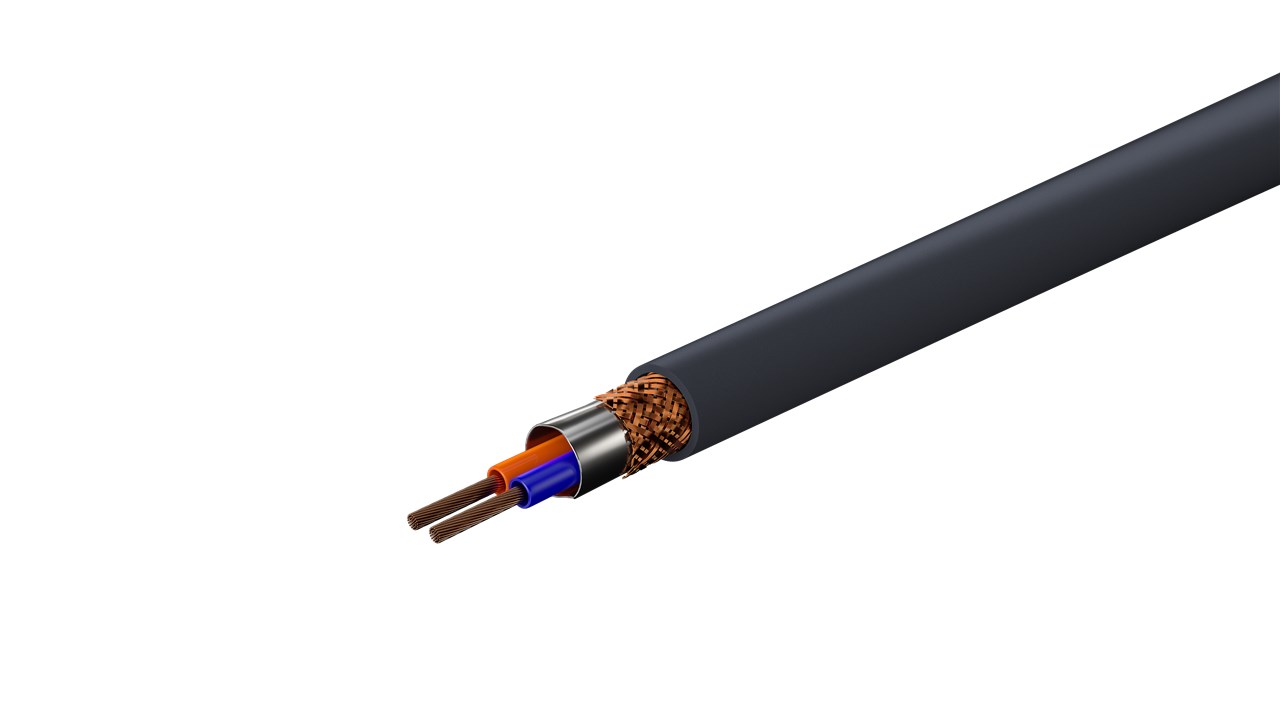

- Clicktronic audio cable with 2-fold shielding of aluminium foil and copper braiding for brilliant signal quality
Technical specifications
Connections
Connection, contact material
gold (24 kt)
Connection, housing material
ABS, PVC
Latch protection
no
Connection type
3.5 mm female, RCA Female
Connection, type
3.5 mm male (3-pin, stereo)
Connection 2, type
2 pcs. 3.5 mm female (3-pin, stereo)
Cable
Cable type
round cable
Cable length
0.1 m
Cable sheath diameter (approx.)
3.85 mm
Inner conductor material
CU (copper)
AWG
27
Number of shieldings
2 x
Type 1, shielding
braid (copper) 42x
Type 2, shielding
foil (aluminium)
Material cable sheath
PVC
Ferrite core
no
Signal transmission
Signal amplification
no
Capacity
155 pF
Impedance
50 Ω
max. bandwidth
10 MHz
General
Markings
WEEE, CE
Operating temperature from
-10 °C
Operating temperature up to
80 °C
Warranty
10 years
Packaging type
Retail Box
Dimensions / Weight
Consumption Unit
1 pc. in cardboard box
SCIP
SCIP no.
58abda99-07b0-4b09-b35c-e01d6f2e4ab2
chemical substance
Pb
CAS no.
7439-92-1
Downloads
Packing units:
1 / 20 / 80
Item: 70491
EAN: 4040849704918
