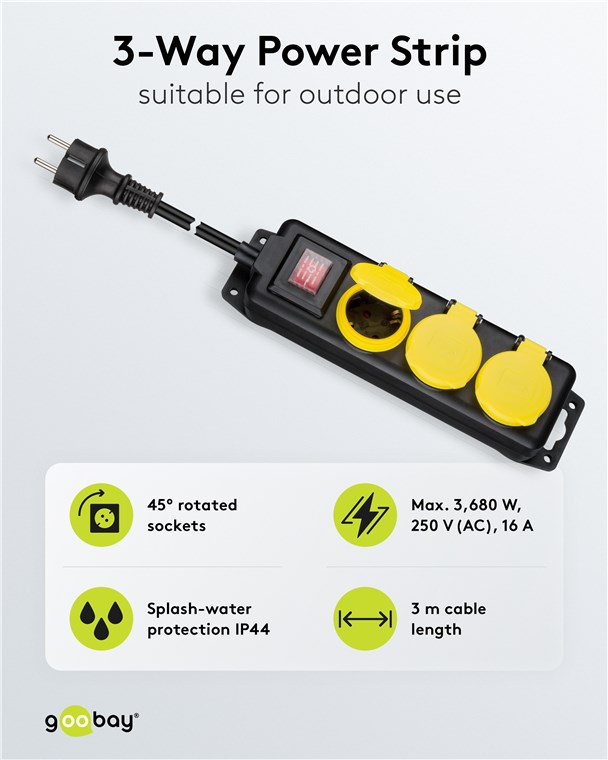

3-Way Extension Lead, Splash-proof, 3 m
3x safety socket (Type F, CEE 7/3) with protective covers, suitable for outdoor use
3-Way Extension Lead, Splash-proof, 3 m
3x safety socket (Type F, CEE 7/3) with protective covers, suitable for outdoor use
Article details

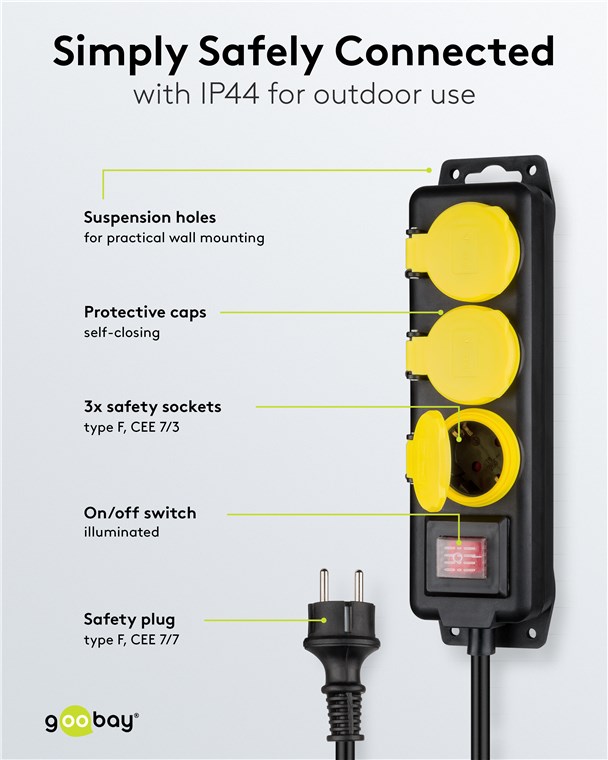

- Power strip with sturdy frame and self-closing protective caps, suitable for outdoor and indoor use (protection class IP44)
- Wall mounting of the 3-gang extension lead is possible thanks to practical eyelets.
- Illuminated on/off switch of the multi-plug extension helps to save energy.
- Power strip with sliding safety covers for increased protection.
- Socket outlets rotated by 45° for using angled plugs directly next to each other
- Straight safety plug
- GS-approved, maximum switching capacity 3680 W at maximum current of 16 A
Technical specifications
Performance
max. switching capacity
3680 W
operating voltage
250 V (AC)
Device connections
Input, type
3x safety socket (Type F, CEE 7/3)
Output, type
safety plug (type F, CEE 7/7)
Output, max. amperage
16 A
Output, max. amperage
16.0 A
Input current
16.0 A
Cable
Cable type Designation
H07RN-F 3G1.5
Cable length
3 m
Inner conductor cross-section
1.5 mm²
General
protection class
IP44
Color
black, yellow
Markings
CE, WEEE, GS: TÜV Süd
Packaging type
Sleeve
Dimensions / Weight
Consumption Unit
1 pc. with sleeve

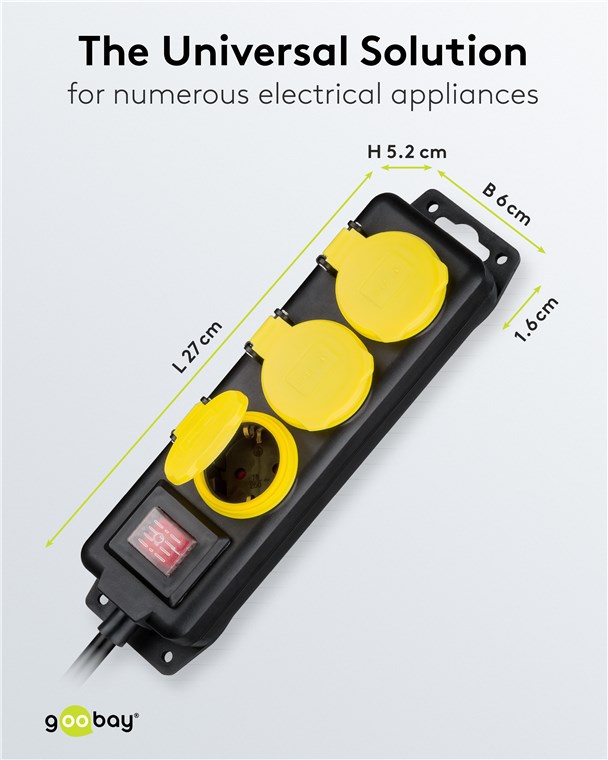

Length
270 mm
Width
73 mm
Height
52 mm
Weight
760 g
accessory - Power supply
Power frequency
50 Hz
Downloads
Packing units:
1 / 10 / 20
Item: 45193
EAN: 4040849451935
