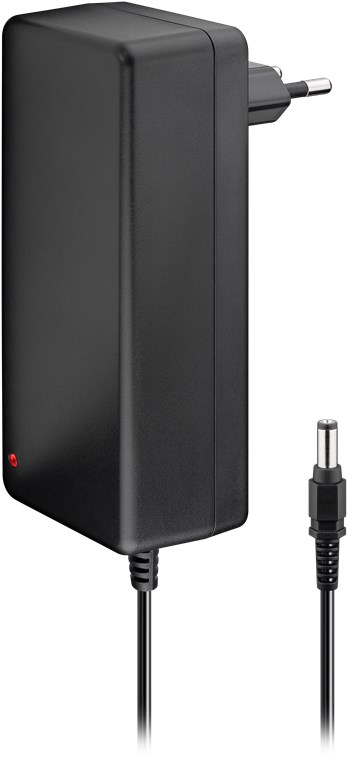

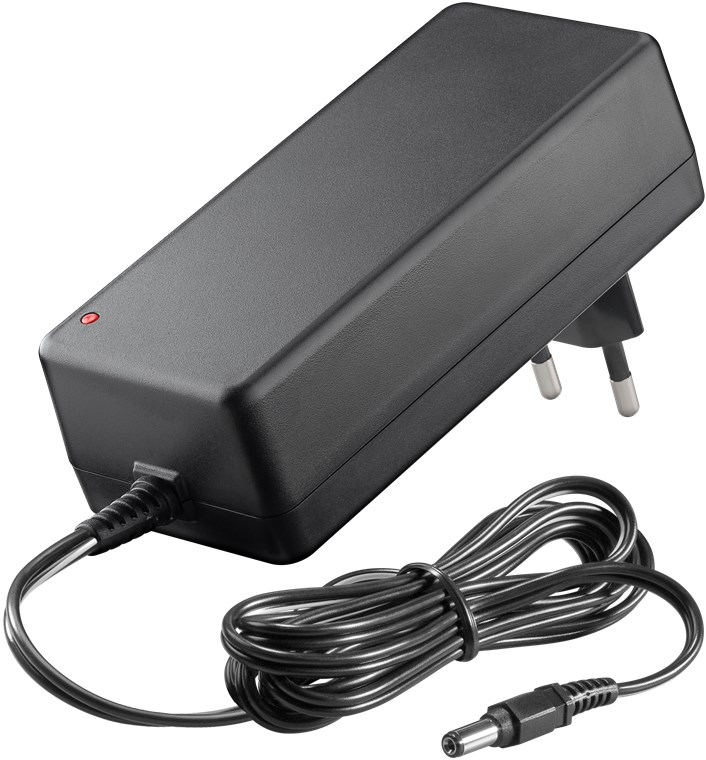

12 V Power Supply (60 W / 5 A)
5.5 mm x 2.1 mm plug
12 V Power Supply (60 W / 5 A)
5.5 mm x 2.1 mm plug
Article details
- DC power adapter for charging and operating electric devices such as a video camera, router, scanner, effects unit, cross trainer, dart board, baby monitor or toys
- Universal power adapter 12 V provides stabilised direct current at 1.2 A.
- Universal power supply with 5.5 mm x 2.1 mm DC plug for connecting common electrical devices
- Reduces energy consumption by up to 90 % in stand-by mode
- Thanks to the wide-range input from 100 V to 240 V, the power supply unit (Euro Plug type C, CEE 7/16) is suitable for worldwide use.
- Fuses in the 12 V adapter protect against short circuit, overload, overvoltage and overcurrent.
Technical specifications
Performance
Power consumption
60 W
No-load power consumption
0.06 W
Device connections
Output, max. amperage
5 A
voltage stabilization
yes
Output, voltage (DC)
12 V (DC)
Input, Voltage Range
100 - 240 (AC) V
Output, voltage (DC)
12.0 V (DC)
Output, max. amperage
5.0 A
Input current
1.2 A
Cable
Cable length
1.8 m
General
Markings
CE, WEEE, Haus, Quader
Packaging type
Retail Box
Dimensions / Weight
Consumption Unit
1 pc. in cardboard box
Length
130 mm
Width
50 mm
Weight
250 g
accessory - Power supply
Power frequency
60 Hz
Efficiency at low load (10 %)
88 %
Average active efficiency
88.2 %
Language Scope
Operation manual
de, en, fr, it, es, nl, da, se, cz, pl
packaging
en, de, fr, it, es, nl, da, sv, pl, cs
SCIP
SCIP no.
38fde1a4-1831-429c-858a-d5e6c64c4e6e
chemical substance
Pb
CAS no.
7439-92-1
Downloads
Packing units:
1 / 10 / 20
Item: 52392
EAN: 4040849523922
